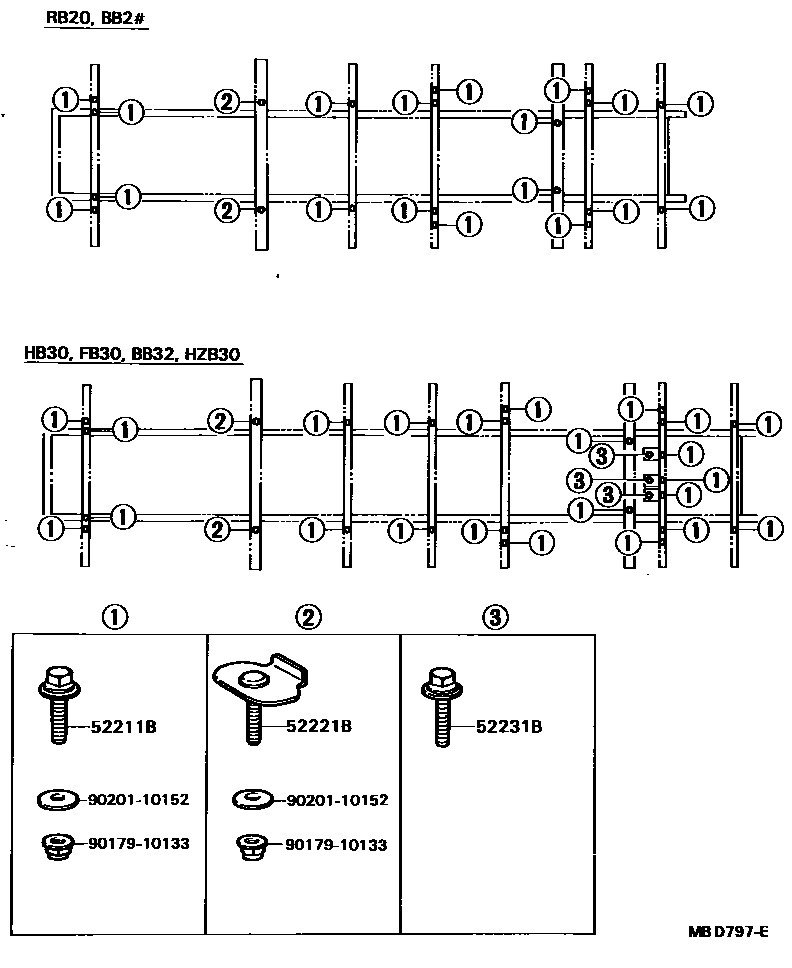

CAB MOUNTING & BODY MOUNTING

52211BBOLT(FOR BODY MOUNTING NO.1 CUSHION)

main90105-10064×18iBB2#,RB20198205-198808

main90119-10538×18iBB2#,RB20; BB32,FB30,HB30,HZB30198808-199301

52221BBOLT(FOR BODY MOUNT NO.2 CUSHION)

main57179-90B00×2iBB2#,32,FB30,HB30,HZB30,RB20198205-199301

52231BBOLT(FOR BODY MOUNT NO.3 CUSHION)

main90105-10064×3iFB30,HB30198610-198808

main90119-10538×3iBB32,FB30,HB30,HZB30198808-199301

9017910133

main90179-10133

9020110152

main90201-10152

5 parts on this diagram · 1 diagram in section
