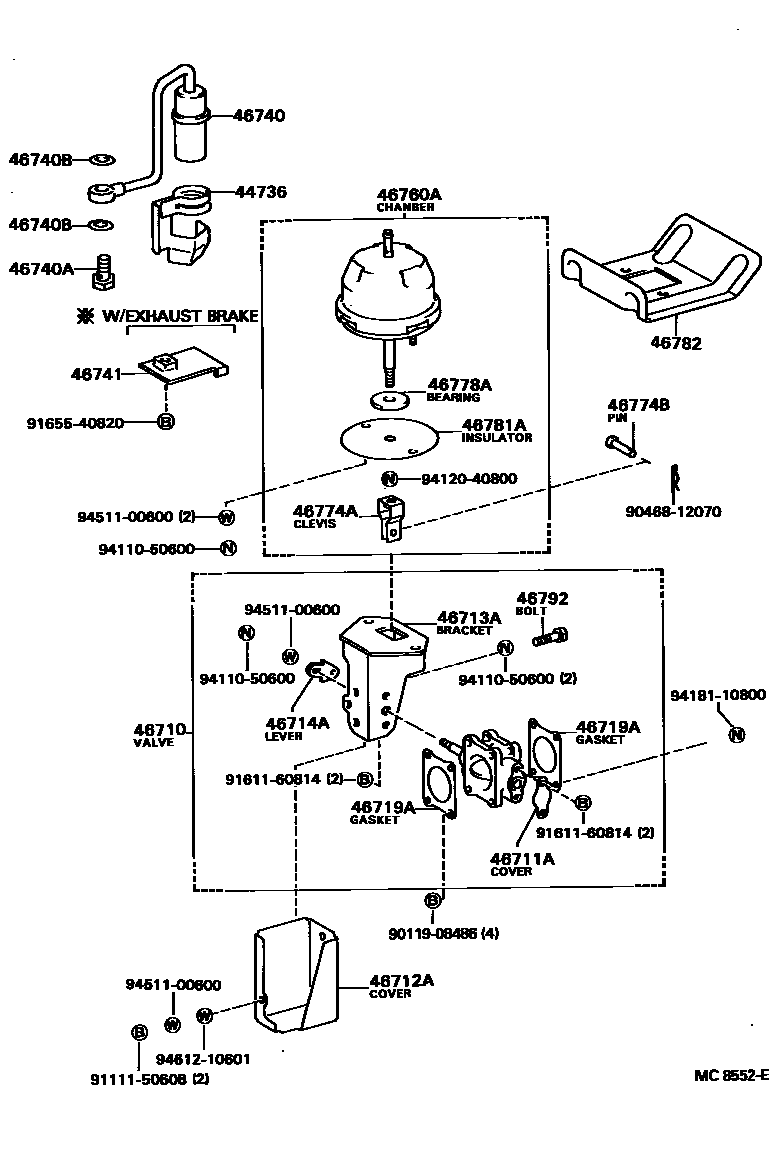

EXHAUST BRAKE ASSEMBLY & VACUUM CYLINDER

0001 1 0004 1

44736BRACKET, AIR CLEANER

main44736-36040iBB20..RHD..GEN198205-198302

main44736-36041iBB2#,3#..GEN,ME; HB3#198708-199001

main44736-36042iBB2#,32..GEN,ME; HDB30,HZB30199001-199301

46710VALVE ASSY, EXHAUST BRAKE

main46710-36050iBB20..RHD..GEN198205-198302

main46710-36170iHDB30,HZB30199001-199301

46711ACOVER, EXHAUST BRAKE SHAFT

main46711-36050iBB20..RHD..GEN198205-198302

46712ACOVER, EXHAUST BRAKE BRACKET

main46712-36050iBB20..RHD..GEN198205-198302

main46712-36060iHDB30,HZB30199001-199301

46713ABRACKET, EXHAUST BRAKE CHAMBER

main46713-36050iBB20..RHD..GEN198205-198302

main46713-36060iHDB30,HZB30199001-199301

46714ALEVER, EXHAUST BRAKE

main46714-36010iHDB30,HZB30199001-199301

main46714-36050iHB3#198610-199001

46719AGASKET, EXHAUST RETARDER

main46719-36050×2iBB20..RHD..GEN198205-198302

46740CLEANER ASSY, EXHAUST RETARDER

main46740-36040iBB20..RHD..GEN198205-198302

main46740-36041iBB2#,3#..GEN,ME; HB3#,HDB30,HZB30198708-199301

46740ABOLT, UNION(FOR EXHAUST BRAKE CLEANER ASSY)

main90401-12005iBB20..RHD..GEN198205-198302

main90401-12097iBB2#,3#..GEN,ME; HB3#,HDB30,HZB30198703-199301

46740BGASKET(FOR EXHAUST BRAKE CLEANER ASSY)

main90430-12247×2iBB20..RHD..GEN198205-198302

46741PROTECTOR, EXHAUST RETADER CLEANER

main46741-36010iHDB30,HZB30199001-199301

46760ACHAMBER ASSY, EXHAUST BRAKE

main46760-36050iBB2#,3#..GEN,ME198302-199301

main46760-36092iHDB30,HZB30199001-199010

main46760-36093iHDB30,HZB30199010-199301

46774ACLEVIS, EXHAUST BRAKE ROD

main46774-36050iBB2#,3#..GEN,ME198302-199301

46774BPIN, W/HOLE(FOR EXHAUST BRAKE ROD CLEVIS)

main90240-08094iBB20..RHD..GEN198205-198302

46778ABEARING, EXHAUST BRAKE CHAMBER ROD

main46778-36050iBB20..RHD..GEN198205-198302

main46778-36060iHDB30,HZB30199001-199301

46781AINSULATOR, EXHAUST BRAKE CHAMBER

main46781-36050iBB20..RHD..GEN198205-198302

main46781-36060iHDB30,HZB30199001-199301

46782INSULATOR, EXHAUST BRAKE CHAMBER, NO.2

main46782-36130iHDB30,HZB30199010-199301

main46782-36140iHB31198610-199001

46792BOLT, EXHAUST VALVE STOPPER

main46792-36010×2iHDB30,HZB30199001-199301

main46792-36050×2iHB3#198610-199001

9011908486

main90119-08486

9046812070

main90468-12070

9111150608

main91111-50608

9161160814

main91611-60814

9165540820

main91655-40820

9411050600

main94110-50600

9412040800

main94120-40800

9418110800

main94181-10800

9451100600

main94511-00600

9461210601

main94612-10601

28 parts on this diagram · 2 diagrams in section
