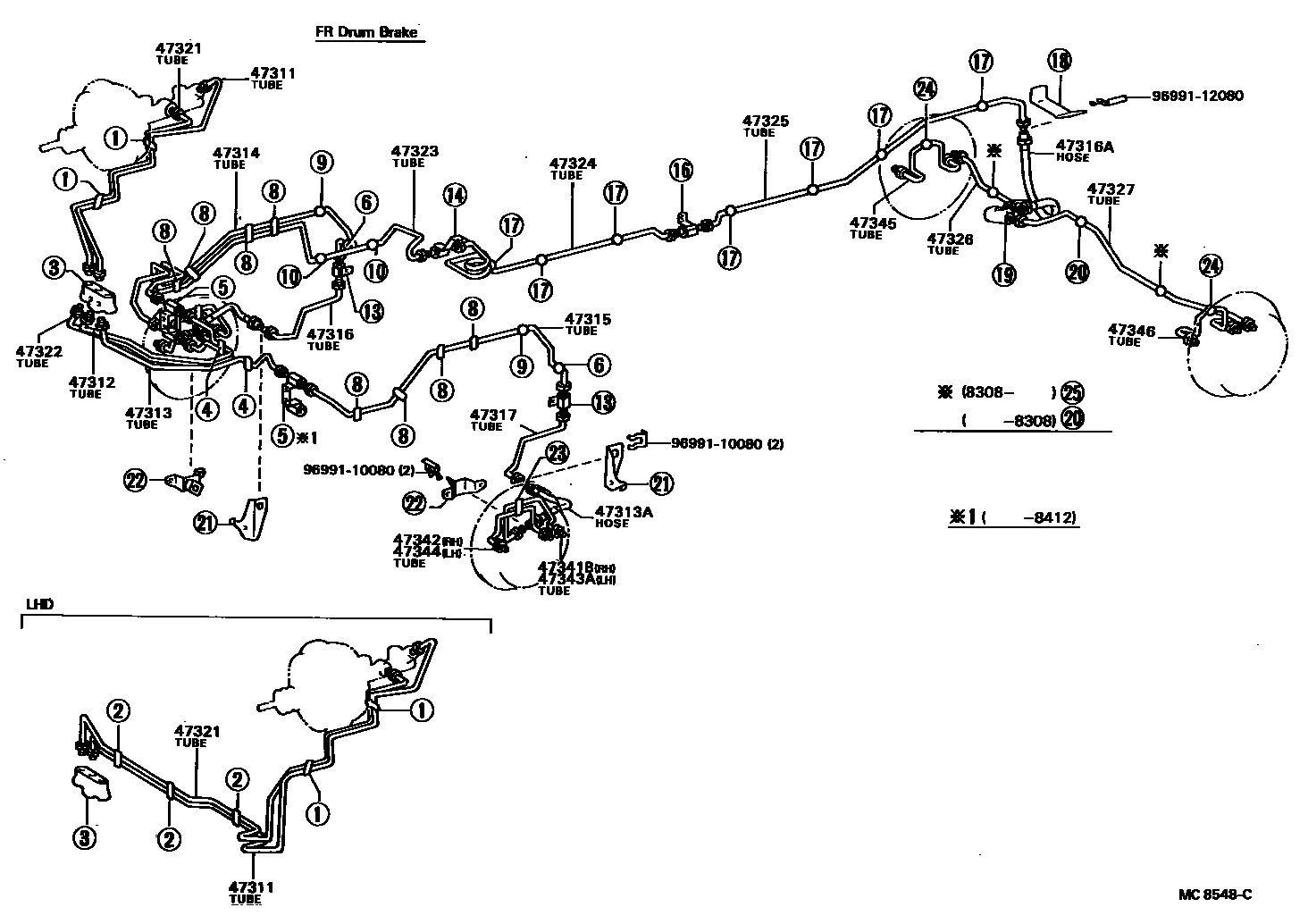

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1

47311TUBE, FRONT BRAKE, NO.1

main47311-36240iBB20,RB20..RHD198205-198408

main47311-36241iBB30,HB3#,HDB30..RHD198510-199301

main47311-36250iBB20,30,RB20..LHD198205-198408

main47311-36340iBB2#,RB20..RHD198510-199301

main47311-36350iBB20,30,RB20..LHD198408-198510

main47311-36360iBB3#,FB30,HB30,HDB30..LHD198510-199301

47312TUBE, FRONT BRAKE, NO.2

main47312-36210iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

47313TUBE, FRONT BRAKE, NO.3

main47313-36130iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02531×2iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198610-199301

main96950-33205×2iBB2#,30,RB20198205-198610

47314TUBE, FRONT BRAKE, NO.4

main47314-36150iBB2#,HB30,HZB30,RB20..GEN,ME198612-199301

FR DRUM BRAKE

main47314-36160iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME198205-199301

FR DISC BRAKE

47315TUBE, FRONT BRAKE, NO.5

main47315-36140iBB2#,HB30,HZB30,RB20..GEN,ME198612-199301

FR DRUM BRAKE

main47315-36150iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME198205-199301

FR DISC BRAKE

47316TUBE, FRONT BRAKE, NO.6

main47316-36210iBB2#,FB30,HB30,RB20..GEN,IRQ,ME198205-198612

FR DRUM BRAKE

main47316-36220iBB2#,RB20..ARL,GEN,ME198205-198610

FR DISC BRAKE

main47316-36251iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198610-199301

FR DISC BRAKE

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02530iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198610-199301

main96912-34005iBB2#,30,RB20198205-198610

47317TUBE, FRONT BRAKE, NO.7

main47317-36090iBB2#,FB30,HB30,RB20..GEN,IRQ,ME198205-198612

FR DRUM BRAKE

main47317-36100iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME198205-199301

FR DISC BRAKE

47321TUBE, REAR BRAKE, NO.1

main47321-36140iBB30..RHD198408-198510

main47321-36141iBB30,HB3#,HDB30,HZB30..RHD198510-199301

main47321-36150iBB20,30,RB20..LHD198205-198408

main47321-36240iBB20,RB20..RHD198408-198510

main47321-36250iBB20,21,RB20..LHD198510-199301

main47321-36260iBB3#,FB30,HB30,HDB30,HZB30..LHD198510-199301

47322TUBE, REAR BRAKE, NO.2

main47322-36100iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

47323TUBE, REAR BRAKE, NO.3

main47323-36030iBB2#,RB20..GEN,IRQ,ME198205-198610

FR DRUM BRAKE

main47323-36031iBB2#,30,FB30,HB3#,RB20198610-198612

FR DRUM BRAKE

main47323-36040iBB2#,30,RB20..ARL,GEN,ME198205-198610

FR DISC BRAKE

main47323-36041iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198610-199301

FR DISC BRAKE

47324TUBE, REAR BRAKE, NO.4

main47324-36050iBB2#,RB20198205-199301

main47324-36061iBB20,30,RB20198306-198510

main47324-36180iBB3#..LHD198610-199301

47325TUBE, REAR BRAKE, NO.5

main47325-36110iBB2#,30,RB20198205-198610

main47325-36111iBB2#,FB30,HZB30,RB20..GEN,ME199005-199301

main47325-36271iHDB30199001-199301

47326TUBE, REAR BRAKE, NO.6

main47326-36060iBB20,30,RB20198205-198308

main47326-36061iBB20,30,RB20198308-198408

main47326-36062iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198408-199301

47327TUBE, REAR BRAKE, NO.7

main47327-36080iBB20,30,RB20198205-198308

main47327-36081iBB20,30,RB20198308-198408

main47327-36082iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198408-199301

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-36050iBB20,RB20..GEN,IRQ198205-198408

main47341-36051iBB2#,FB30,HB30,RB20..GEN,IRQ,ME198408-198612

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47342-36040iBB20,RB20..GEN,IRQ198205-198408

main47342-36041iBB2#,HB30,RB20..GEN,ME198612-199301

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-36030iBB20,RB20..GEN,IRQ198205-198408

main47343-36031iBB2#,FB30,HB30,RB20..GEN,IRQ,ME198408-198612

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

main47342-36040iBB20,RB20..GEN,IRQ198205-198408

main47342-36041iBB2#,FB30,HB30,RB20..GEN,IRQ,ME198408-198612

47345TUBE, WHEEL CYLINDER, REAR RH

main47345-36020iBB20,30,RB20198205-198408

main47345-36040iBB2#,30,FB30,HB3#,HDB30,HZB30,RB20198408-199301

47346TUBE, WHEEL CYLINDER, REAR LH

main47345-36020iBB20,30,RB20198205-198408

main47345-36040iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198408-199301

9699110080

main96991-10080

9699112080

main96991-12080

24 parts on this diagram · 4 diagrams in section
