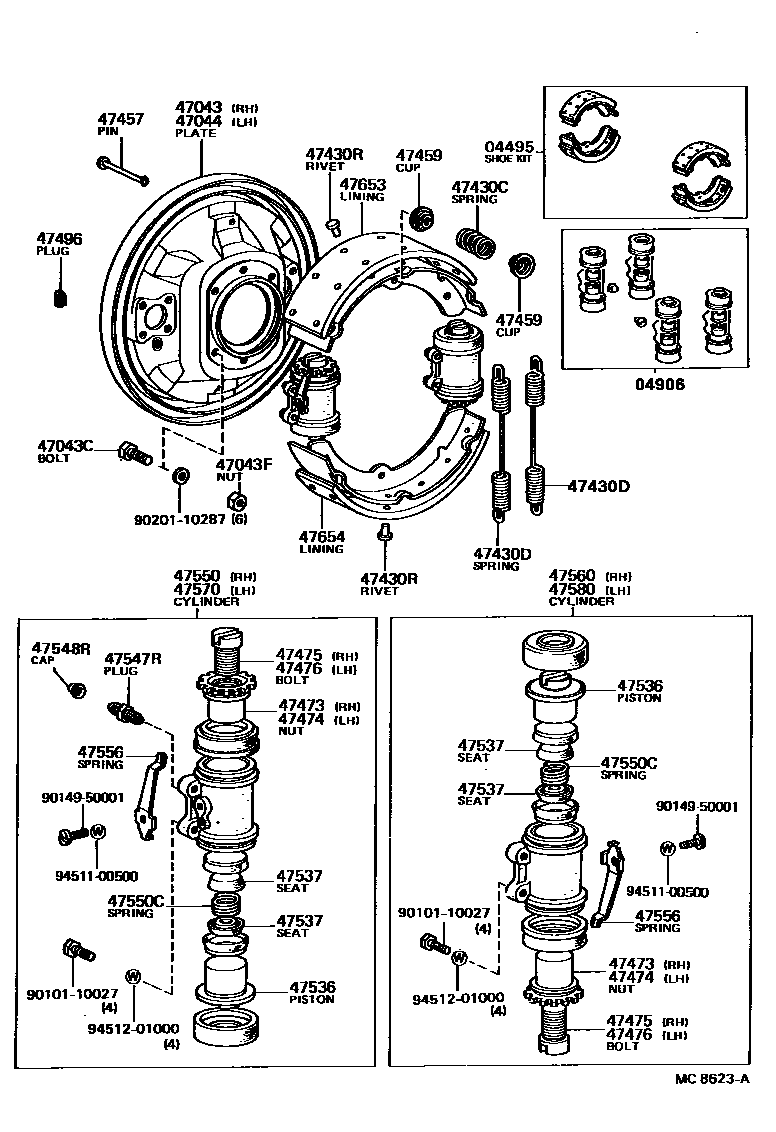

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1 0003 1FR DISC

04495SHOE KIT, REAR BRAKE

main04495-36050iBB20,RB20..GEN,IRQ198205-198408

FR DRUM BRAKE

main04495-36060iBB20,30,RB20..ARL,GEN198205-198408

FR DISC BRAKE

main04495-36080iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME198408-199301

FR DISC BRAKE

main04495-36090iBB2#,FB30,HB30,RB20..GEN,IRQ,ME198408-199009

FR DRUM BRAKE

main04495-36120iBB2#,HZB30,RB20..GEN,ME199009-199301

FR DRUM BRAKE

04906CUP KIT, REAR WHEEL CYLINDER

main04906-36070iBB2#,FB30,HB30,RB20198205-199301

main04906-36220iHDB30198610-199301

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-36061iBB20,30,RB20198205-198408

main47043-36110iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198408-199301

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90101-10028iBB20,30,RB20198205-198408

*10-1.25PX27-18

main90114-10019iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198408-199301

*10-1.25PX31-21.5

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90170-10178iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198408-199301

main94110-71000iBB20,30,RB20198205-198408

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-36021iBB20,30,RB20198205-198408

main47044-36110iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198408-199301

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20012iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-29216iBB20,30,RB20198205-198408

main90507-29006iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198408-199301

47430RRIVET, BRAKE LINING(FOR REAR BRAKE)

main90266-05005iBB20,30,RB20198205-198408

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-60010iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

47459CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

47473NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE)

main47506-36010iBB2#,3#,FB30,HB3#,RB20198510-199301

FR DISC BRAKE

main47506-36010iHDB30199001-199301

main47551-36012iBB20,30,RB20198205-198408

main47551-36130iBB2#,FB30,HB30,RB20..GEN,ME198510-199301

FR DRUM BRAKE

main47551-36130iBB20,30,RB20198408-198510

47474NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47507-36010iHDB30199001-199301

main47507-36010iBB2#,3#,FB30,HB3#,RB20198510-199301

FR DISC BRAKE

main47552-36012iBB20,30,RB20198205-198408

main47552-36130iBB2#,HB30,RB20..GEN,ME198510-199301

FR DRUM BRAKE

main47552-36130iBB20,30,RB20198408-198510

47475BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE)

main47508-36010iBB20,30,RB20198408-198510

main47553-36030iBB20,30,RB20198205-198408

main47553-36060iBB2#,HB30,RB20..GEN,ME198510-199301

FR DRUM BRAKE

main47553-36070iBB2#,3#,FB30,HB3#,RB20198510-199301

FR DISC BRAKE

main47553-36070iHDB30199001-199301

47476BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47509-36010iBB20,30,RB20198408-198510

main47554-36030iBB20,30,RB20198205-198408

main47554-36060iBB2#,FB30,HB30,RB20..GEN,ME198510-199301

FR DRUM BRAKE

main47554-36070iBB2#,3#,FB30,HB3#,RB20198510-199301

FR DISC BRAKE

main47554-36070iHDB30199001-199301

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-36010iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-36070iBB20,30,RB20..ARL,GEN198205-198510

FR DISC BRAKE

main47531-25020iBB20,RB20..GEN,IRQ198205-198408

FR DRUM BRAKE

main47536-36040iBB30..LHD198510-199301

main47536-36060iHDB30198610-199301

47537SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE)

main47533-25010iBB30,HB31..RHD198610-199301

main47533-30011iBB2#,FB30,HB30,RB20198205-199301

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-12010iBB2#,3#,FB30,HB3#,RB20198205-199301

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iBB2#,3#,FB30,HB3#,RB20198205-199301

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-36120iHZB30..GEN198408-199301

FR DRUM BRAKE

main47550-36140iHZB30..ME199001-199301

FR DRUM BRAKE

main47550-36150iBB2#,30,RB20198510-199301

FR DISC BRAKE

main47550-36150iBB30..LHD198610-198808

main47550-36180iBB30,HB31..RHD198610-199301

main47550-39265iBB20,RB20..GEN,IRQ198205-198408

FR DRUM BRAKE

main47550-39295iBB20,30,RB20..ARL,GEN198205-198408

FR DISC BRAKE

main47550-39296iBB20,30,RB20..ARL,GEN198408-198510

FR DISC BRAKE

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-08122iBB2#,30,RB20198205-199301

main90501-10759iBB30,HB31..RHD198610-199301

47556SPRING, ADJUSTER LOCK(FOR REAR BRAKE)

main47555-36020iBB20,30,RB20198205-198408

main47555-36040iBB20,RB20198408-198409

main47555-36050iBB2#,RB20198409-198606

main47555-36051iBB2#,RB20198606-199301

47560CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER)

main47560-36120iHZB30..GEN198408-199301

FR DRUM BRAKE

main47560-36140iHZB30..ME199001-199301

FR DRUM BRAKE

main47560-36150iBB2#,30,RB20198510-199301

FR DISC BRAKE

main47560-36150iBB30..LHD198610-198808

main47560-36180iBB30,HB31..RHD198610-199301

main47560-39115iBB20,RB20..GEN,IRQ198205-198408

FR DRUM BRAKE

main47560-39125iBB20,30,RB20..ARL,GEN198205-198408

FR DISC BRAKE

main47560-39126iBB20,30,RB20..ARL,GEN198408-198510

FR DISC BRAKE

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-36120iHZB30..GEN198408-199301

FR DRUM BRAKE

main47570-36140iHZB30..ME199001-199301

FR DRUM BRAKE

main47570-36150iBB2#,30,RB20198510-199301

FR DISC BRAKE

main47570-36150iBB30..LHD198610-198808

main47570-36180iHDB30198610-199301

main47570-39105iBB20,RB20..GEN,IRQ198205-198408

FR DRUM BRAKE

main47570-39125iBB20,30,RB20..ARL,GEN198205-198408

FR DISC BRAKE

main47570-39126iBB20,30,RB20..ARL,GEN198408-198510

FR DISC BRAKE

47580CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER)

main47580-36120iBB2#,FB30,HB30,RB20..GEN,IRQ,ME198408-199301

FR DRUM BRAKE

main47580-36140iHZB30..ME199001-199301

FR DRUM BRAKE

main47580-36150iBB2#,FB30,HB30,HZB30,RB20198510-199301

FR DISC BRAKE

main47580-36150iBB30..LHD198610-198808

main47580-36180iBB30,HB31..RHD198610-199301

main47580-39105iBB20,RB20..GEN,IRQ198205-198408

FR DRUM BRAKE

main47580-39115iBB20,30,RB20..ARL,GEN198205-198408

FR DISC BRAKE

main47580-39116iBB20,30,RB20..ARL,GEN198408-198510

FR DISC BRAKE

47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)

main47655-36010iBB20,RB20..GEN198205-198408

FR DRUM BRAKE

main47655-36030iBB20,30,RB20198205-198408

FR DISC BRAKE

47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)

main47655-36010iBB20,RB20..GEN198205-198408

FR DRUM BRAKE

main47655-36030iBB20,30,RB20198205-198408

FR DISC BRAKE

9010110027

main90101-10027

9014950001

main90149-50001

9020110287

main90201-10287

9451100500

main94511-00500

9451201000

main94512-01000

33 parts on this diagram · 3 diagrams in section
