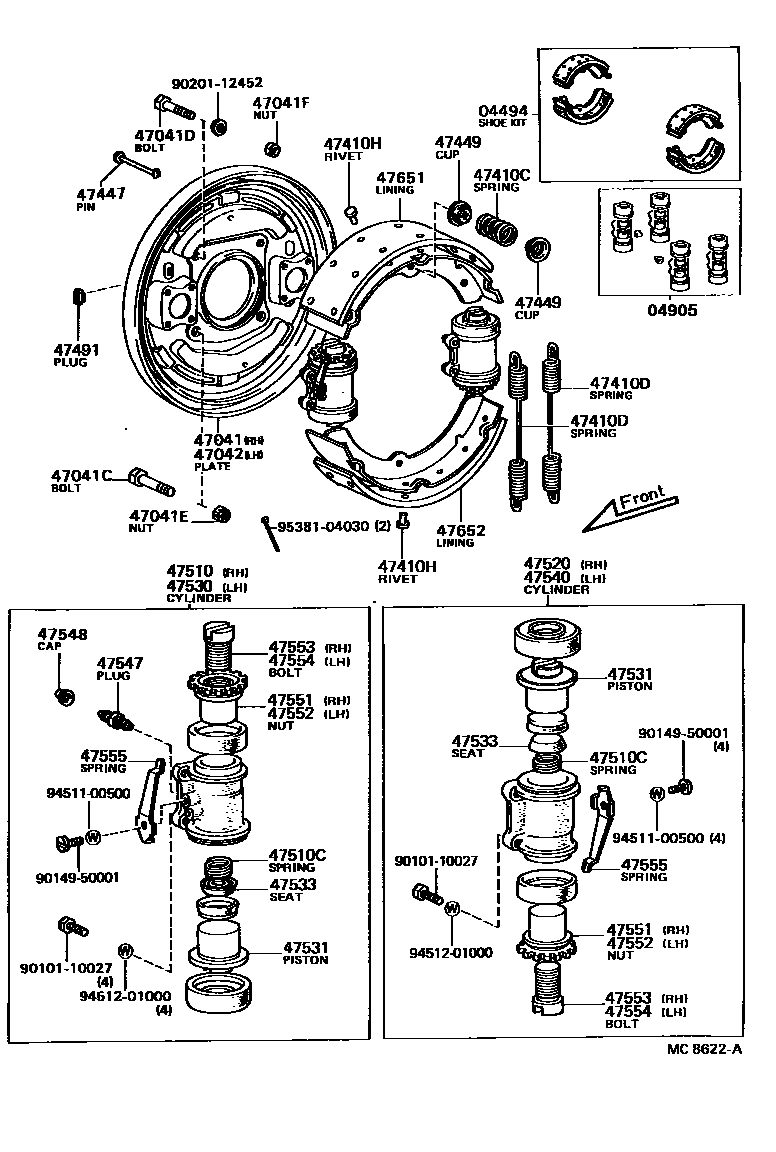

FRONT DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1 0004 1

04494SHOE KIT, FRONT BRAKE

main04494-25030iBB2#,RB20..GEN199008-199301

main04494-36060iBB20,RB20..GEN,IRQ198205-198408

main04494-36061iHZB30..GEN198408-199008

04905CUP KIT, FRONT WHEEL CYLINDER

main04905-36050iBB20,RB20..GEN,IRQ198205-198408

main04905-36080iBB2#,FB30,HB30,RB20..GEN,IRQ,ME198408-199301

47041PLATE SUB-ASSY, BRAKE BACKING, FRONT RH

main47041-36090iBB20,RB20..GEN,IRQ198205-198408

main47041-36091iBB2#,FB30,HB30,RB20..GEN,IRQ,ME198408-199301

47041CBOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)

main90102-16001iBB2#,HB30,HZB30,RB20..GEN,ME198205-199301

*16-1.5PX65-25

main90102-16002iBB2#,FB30,HB30,RB20..GEN,IRQ,ME198205-199301

*16-1.5PX74-27

47041DBOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

main90101-12060iBB2#,FB30,HB30,RB20..GEN,IRQ,ME198205-199301

47041ENUT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)

main94145-71600iBB2#,FB30,HB30,RB20..GEN,IRQ,ME198205-199301

47041FNUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

main94115-71200iBB2#,FB30,HB30,RB20..GEN,IRQ,ME198205-199301

47042PLATE SUB-ASSY, BRAKE BACKING, FRONT LH

main47042-36060iBB20,RB20..GEN,IRQ198205-198408

main47042-36061iBB2#,FB30,HB30,RB20..GEN,IRQ,ME198408-199301

47410CSPRING(FOR FRONT BRAKE SHOE HOLD DOWN)

main90501-20012iBB2#,FB30,HB30,RB20..GEN,IRQ,ME198205-199301

47410DSPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-29216iBB20,RB20..GEN,IRQ198205-198408

main90507-29006iBB2#,FB30,HB30,RB20..GEN,IRQ,ME198408-199301

47410HRIVET, BRAKE LINING(FOR FRONT BRAKE)

main90266-05005iBB20,RB20..GEN,IRQ198205-198408

47447PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47447-36020iBB2#,FB30,HB30,RB20..GEN,IRQ,ME198205-199301

47449CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47449-30020iBB2#,FB30,HB30,RB20..GEN,IRQ,ME198205-199301

47491PLUG, HOLE(FOR FRONT BRAKE)

main47491-36010iBB2#,HB30,HZB30,RB20..GEN,ME198205-199301

47510CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)

main47510-36071iBB2#,HB30,RB20..GEN,ME198808-199301

main47510-36130iHZB30..ME199001-199301

main47510-39175iBB20,RB20..GEN,IRQ198205-198408

main47510-39176iBB2#,FB30,HB30,RB20..GEN,IRQ,ME198408-198808

47510CSPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER)

main90501-08122iBB2#,HB30,HZB30,RB20..GEN,ME198205-199301

47520CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)

main47520-36041iBB2#,HB30,RB20..GEN,ME198808-199301

main47520-36130iHZB30..ME199001-199301

main47520-39135iBB20,RB20..GEN,IRQ198205-198408

main47520-39136iBB2#,HB30,RB20..GEN,ME198408-198808

47530CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)

main47530-36071iHZB30..GEN198808-199301

main47530-36130iHZB30..ME199001-199301

main47530-39175iBB20,RB20..GEN,IRQ198205-198408

main47530-39176iBB2#,HB30,RB20..GEN,ME198408-198808

47531PISTON, WHEEL BRAKE CYLINDER(FOR FRONT BRAKE)

main47501-36021iHZB30..ME199001-199301

RH

main47502-36021iHZB30..ME199001-199301

LH

main47531-25020iBB20,RB20..GEN,IRQ198205-198408

47533SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE)

main47533-30011iBB2#,FB30,HB30,RB20..GEN,IRQ,ME198205-199301

47540CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)

main47540-36041iHZB30..GEN198808-199301

main47540-36130iHZB30..ME199001-199301

main47540-39135iBB20,RB20..GEN,IRQ198205-198408

main47540-39136iBB2#,HB30,RB20..GEN,ME198408-198808

47547PLUG, BLEEDER(FOR FRONT DRUM BRAKE)

main47547-12010iBB2#,FB30,HB30,RB20..GEN,IRQ,ME198205-199301

47548CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)

main31478-30010iBB2#,FB30,HB30,RB20..GEN,IRQ,ME198205-199301

47551NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47506-36010iHZB30..ME199001-199301

main47551-36110iBB20,RB20..GEN,IRQ198205-198408

main47551-36130iBB2#,HB30,RB20..GEN,ME198408-199301

47552NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47506-36010iHZB30..ME199001-199301

main47552-36110iBB20,RB20..GEN,IRQ198205-198408

main47552-36130iBB2#,FB30,HB30,RB20..GEN,IRQ,ME198408-199301

47553BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47553-36030iBB20,RB20..GEN,IRQ198205-198408

main47553-36060iBB2#,FB30,HB30,RB20..GEN,IRQ,ME198408-199301

main47553-36070iHZB30..ME199001-199301

47554BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47554-36030iBB20,RB20..GEN,IRQ198205-198408

main47554-36060iBB2#,HB30,RB20..GEN,ME198408-199301

main47554-36070iHZB30..ME199001-199301

47555SPRING, ADJUSTER LOCK(FOR FRONT BRAKE)

main47555-25010iBB20,RB20..GEN,IRQ198205-198408

main47555-36040iBB2#,HB30,RB20..GEN,ME198408-199301

main47555-36050iBB20,RB20..GEN,IRQ198410-198510

47651LINING, FRONT BRAKE SHOE(FOR FRONT OR UPPER)

main47651-36080iBB20,RB20..GEN,IRQ198205-198408

47652LINING, FRONT BRAKE SHOE(FOR REAR OR LOWER)

main47651-36080iBB20,RB20..GEN,IRQ198205-198408

9010110027

main90101-10027

9014950001

main90149-50001

9020112452

main90201-12452

9451100500

main94511-00500

9451201000

main94512-01000

9538104030

main95381-04030

36 parts on this diagram · 3 diagrams in section
