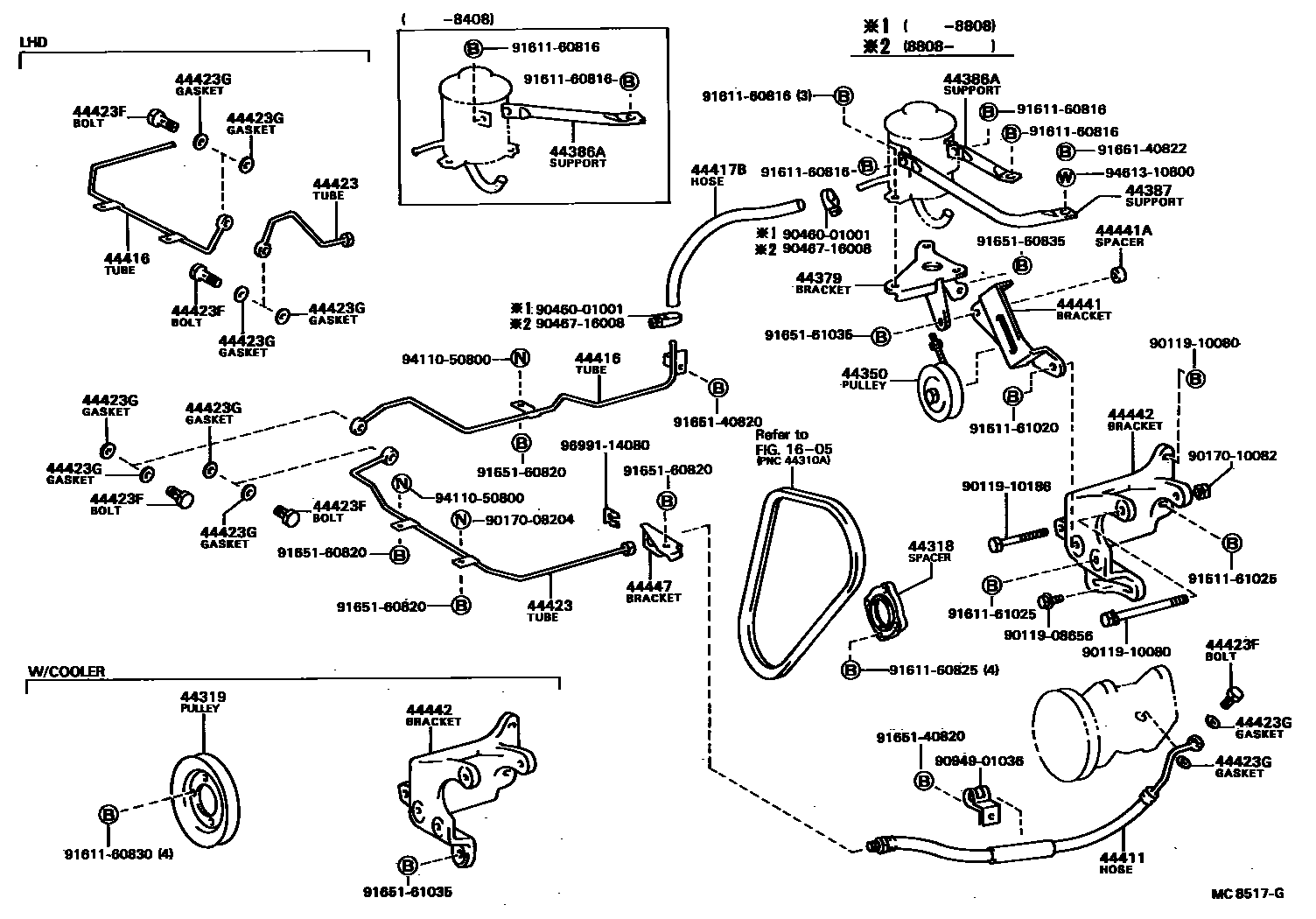

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

1605V-BELT

→ Go to FIG 16-05

44318SPACER, VANE PUMP DRIVE PULLEY

main44318-36010iRB20..WOC198603-199301

44319PULLEY, VANE PUMP DRIVE

main44319-36010iBB20..WOC198205-198408

main44319-36020iHB30..RHD..WOC; HB30..WC; HB31198610-199001

COLD SPEC

main44319-36030iHB30..WOC198610-199001

main44319-36040iRB20198205-198603

44350PULLEY ASSY, POWER STEERING IDLE

main16630-56020iBB20,30..ARL,GEN198205-198408

main44350-36011iHB3#198610-199001

main44350-36020iRB20198205-198208

main44350-36021iRB20198208-199301

main44350-36040iFB30198610-199301

INSIDE

main44350-36050×2iFB30198610-199301

OUTSIDE

44379BRACKET, OIL RESERVOIR, NO.2

main44379-36040iBB20,21,30..ARL,GEN,ME198205-199301

main44379-36050iHB30198610-199001

main44379-36060iRB20198205-198510

main44379-36080iBB22,23,32198510-199301

main44379-36120iHB31198610-199001

main44379-36130iRB20198510-199301

main44379-36140iFB30198610-199301

44386ASUPPORT, OIL RESERVOIR

main44386-36040iBB20,21,30..ARL,GEN,ME198205-199301

main44386-36050iHB30198610-199001

main44386-36060iRB20198205-198408

main44386-36080iRB20198408-199301

main44386-36090iHB31198610-199001

44387SUPPORT, OIL RESERVOIR, NO.2

main44387-36010iRB20198408-199301

44411HOSE, PRESSURE FEED

main44411-36050iBB2#,30..RHD198205-198808

main44411-36060iBB20,21,30..LHD..(GEN,ME)198205-198808

main44411-36080iRB20198205-198408

main44411-36081iRB20198408-198510

main44411-36220iHB3#..RHD198610-199001

main44411-36230iRB20198510-199301

main44411-36250iFB30198610-199301

main44411-36260iHB30..LHD198610-199001

main44411-36310iBB2#..RHD198808-199301

main44411-36320iBB21,32..LHD198808-199301

main44411-36341iHDB30,HZB30..RHD199001-199301

main44411-36350iHDB30,HZB30..LHD199001-199301

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-36020iBB20,21,22,30..RHD198205-199301

main44416-36030iBB20,21,30..LHD..(GEN,ME)198205-199301

main44416-36040iHB3#..RHD198610-198808

main44416-36050iRB20..RHD198205-199301

main44416-36060iRB20..LHD198205-198808

main44416-36160iFB30198610-198808

main44416-36170iHB30..LHD198610-198808

main44416-36220iHB3#..RHD198808-199301

main44416-36230iHB30..LHD198808-199001

main44416-36240iRB20..LHD198808-199001

main44416-36250iBB23198808-199301

main44416-36260iBB32198808-199301

main44416-36270iFB30198808-199301

main44416-36300iHDB30,HZB30..LHD199001-199301

44417TUBE, RETURN, NO.2

main44417-36020iBB20,21,30..ARL,GEN,ME198205-198708

main44417-36021iBB21,30198708-199301

main44417-36050iBB22198510-199301

main44417-36110iHB30..LHD198610-199001

main44417-36150iBB23,32198808-199301

main44417-36180iHDB30,HZB30..RHD199001-199301

44417BHOSE, RETURN TUBE(FOR RETURN TUBE TO VANE PUMP)

main90445-18026iHB30..RHD198610-199001

main90445-18031iHB31198610-199001

main90445-18109iRB20198205-199301

main90445-18110iBB20,21,30..ARL,GEN,ME198205-198808

main90445-18113iBB22,23,32198510-199301

main90445-18132iHB30..LHD198610-199001

main90445-18142iHDB30,HZB30..RHD199001-199301

main90447-18023iBB21198808-199301

main90447-18032iFB30198610-199301

44423TUBE, OIL PUMP TO GEAR BOX

main44423-36050iBB20,30..ARL,GEN198205-198408

main44423-36051iBB2#,3#..ARL,GEN,ME198408-199301

main44423-36060iHB3#..RHD198610-198808

main44423-36070iRB20..RHD198205-198808

main44423-36080iFB30,HB30..LHD198610-198808

main44423-36200iHB3#..RHD198808-199001

main44423-36210iFB30,HB30,HDB30,HZB30..LHD; RB20..LHD198808-199301

main44423-36220iRB20..RHD198808-199301

44423FBOLT, UNION

main90401-14003×3iBB20,30..ARL,GEN198205-198408

main90401-16004iBB22,FB30,HB3#,HDB30,HZB30,RB20198205-199301

PUMP SIDE

44423GGASKET, UNION BOLT

main90430-14235×4iBB20,23,3#; BB22,FB30,HB3#,HDB30,HZB30,RB20198510-199301

GEAR HOUSING SIDE

main90430-16168×2iRB20198205-198408

PUMP SIDE

44441BRACKET, PUMP, FRONT

main44441-36040iBB20,30..ARL,GEN198205-198408

main44441-36050iHB3#198610-199001

main44441-36060iRB20198205-198510

main44441-36080iRB20198510-199301

main44441-36090iFB30198610-199301

44441ASPACER(FOR PUMP BRACKET, FRONT)

main90560-10019iRB20..WOC198205-198408

44442BRACKET, PUMP, REAR

main44442-36030iBB20,30..ARL,GEN198205-198408

main44442-36050iRB20..WOC198205-198408

main44442-36060iRB20..WC198205-198408

main44442-36061iRB20..WC198408-199301

main44442-36080iRB20..WOC198408-199301

main44442-36090iHB3#198610-199001

main44442-36100iFB30198610-199301

44447BRACKET, POWER STEERING OIL COOLER TUBE SUPPORT

main44447-36040iBB22198708-199301

main44447-36051iHB3#..RHD198610-199001

main44447-36070iRB20198205-198408

main44447-36071iRB20198408-199301

main44447-36150iBB21,30198708-199301

main44447-36180iHDB30,HZB30..RHD199001-199301

9011908656

main90119-08656

9011910080

main90119-10080

9011910186

main90119-10186

9017008204

main90170-08204

9017010082

main90170-10082

9046001001

main90460-01001

9046716008

main90467-16008

9094901036

main90949-01036

9151161025

main91511-61025

9161160816

main91611-60816

9161160825

main91611-60825

9161160830

main91611-60830

9161161020

main91611-61020

9161161025

main91611-61025

9165140820

main91651-40820

9165160820

main91651-60820

9165160835

main91651-60835

9165161035

main91651-61035

9166140822

main91661-40822

9411050800

main94110-50800

9461310800

main94613-10800

9699114080

main96991-14080

40 parts on this diagram · 8 diagrams in section
