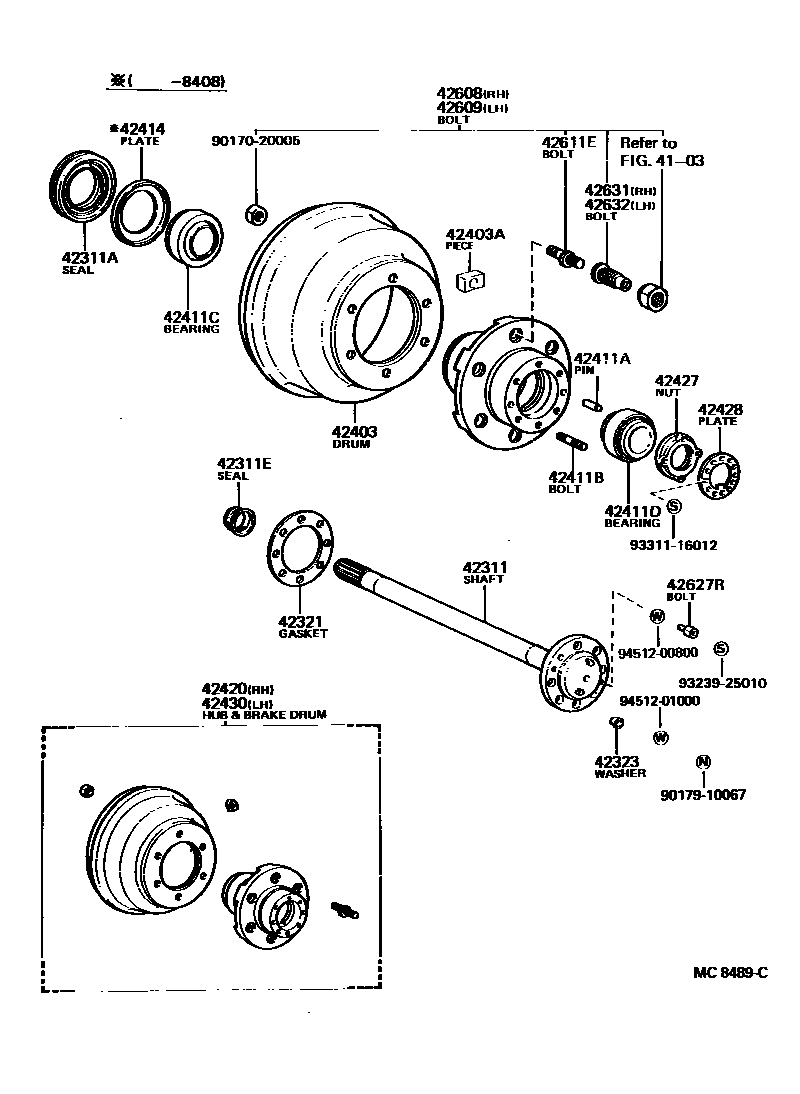

REAR AXLE SHAFT & HUB

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

42311SHAFT, REAR AXLE

main42311-36110×2iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main42404-36010×2iBB20,30,RB20198205-198408

main90311-75003×2iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198408-199301

42311ESEAL, OIL(FOR REAR AXLE SHAFT OUTER)

main90310-38033×2iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

42321GASKET, REAR AXLE SHAFT

main42321-36010×2iBB20,30,RB20198205-198408

main42321-36030×2iBB2#,30,FB30,HB3#,RB20198408-198708

main42321-36040×2iBB2#,3#,FB30,HB3#,RB20198708-199010

main42321-36050×2iBB2#,32,FB30,HDB30,HZB30,RB20199010-199301

42323WASHER, CONE (FOR REAR AXLE SHAFT)

main42323-36010×12iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

42403DRUM SUB-ASSY, REAR BRAKE

main42431-36070×2iBB20,30,RB20198205-198309

main42431-36071×2iBB20,30,RB20198309-198408

main42431-36120×2iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198408-199301

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01117iBB20,30,RB20198408-198504

10G,10G

main90937-01118iBB20,30,RB20198408-198504

20G,20G

main90937-01119iBB20,30,RB20198408-198504

30G,30G

main90937-01120iBB20,30,RB20198408-198504

40G,40G

main90937-01121iBB20,30,RB20198408-198504

50G,50G

main90937-01122iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198408-199301

60G,60G

42411APIN, STRAIGHT (FOR REAR AXLE HUB)

main90250-10055×4iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

42411BBOLT, STUD (FOR REAR AXLE HUB)

main90116-10191×12iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

42411CBEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING)

main90368-57010×2iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

42411DBEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING)

main90368-50008×2iBB20,30,RB20198205-198408

main90368-52043×2iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198408-199301

42414PLATE, REAR AXLE HUB

main42414-36010×2iBB20,30,RB20198205-198408

42420HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH

main42420-36080iBB20,30,RB20198205-198309

main42420-36081iBB20,30,RB20198309-198408

main42420-36130iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198408-199301

42427NUT, REAR AXLE BEARING LOCK

main42427-36010×2iBB20,30,RB20198205-198408

main42427-36030×2iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198408-199301

42428PLATE, REAR AXLE LOCK NUT

main42428-36010×2iBB20,30,RB20198205-198408

main42428-36020×2iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198408-199301

42430HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH

main42430-36080iBB20,30,RB20198205-198309

main42430-36081iBB20,30,RB20198309-198408

main42430-36130iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198408-199301

42608BOLT SUB-ASSY, REAR AXLE HUB, RH

main42608-36020×5iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

42609BOLT SUB-ASSY, REAR AXLE HUB, LH

main42609-36020×5iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02045×5iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

RH

main90942-02046×5iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

LH

42627RBOLT, REAR WHEEL CAP SET

main42627-36011×4iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

42631BOLT, DOUBLE WHEEL STOP, RH

main42631-55031×5iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

42632BOLT, DOUBLE WHEEL STOP, LH

main42632-55031×5iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

9017020005

main90170-20005

9017910067

main90179-10067

9323925010

main93239-25010

9331116012

main93311-16012

9451200800

main94512-00800

9451201000

main94512-01000

29 parts on this diagram · 1 diagram in section
