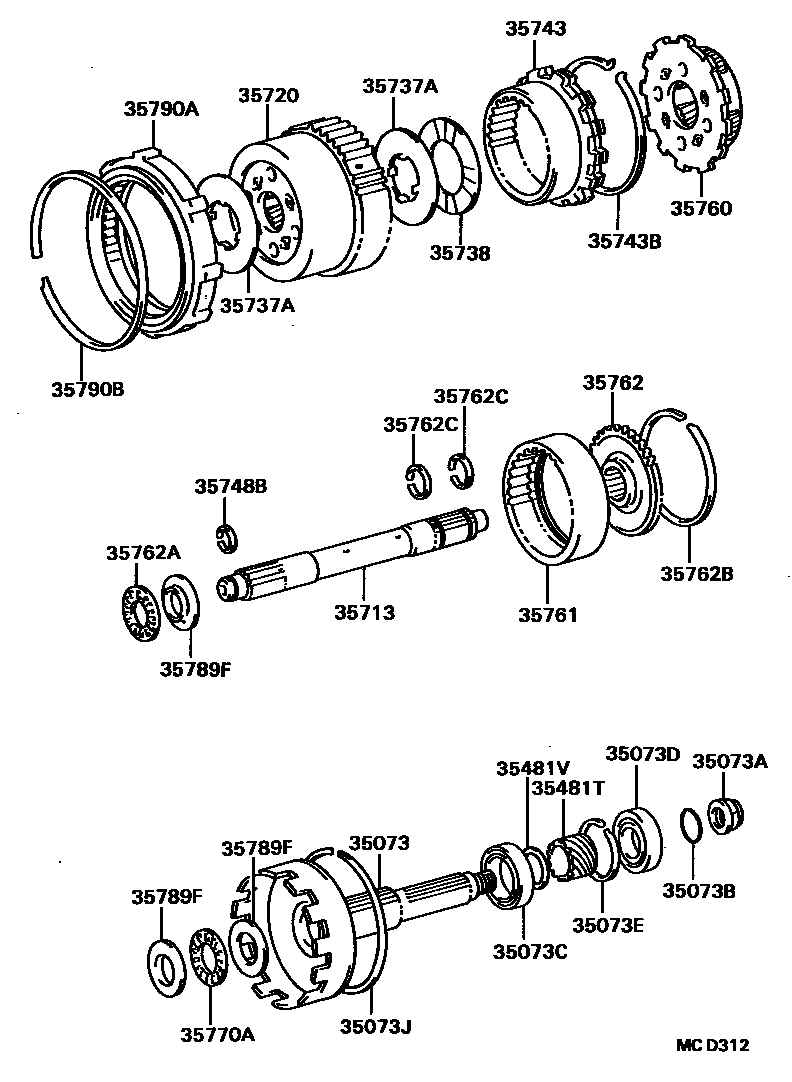

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35073SHAFT SUB-ASSY, OUTPUT
35073ANUT (FOR OUTPUT SHAFT)
35073BRING, O (FOR OUTPUT SHAFT)
35073CBEARING, RADIAL BALL (FOR OUTPUT SHAFT FRONT)
35073DBEARING, RADIAL BALL (FOR OUTPUT SHAFT REAR)
35073ERING, HOLE SNAP (FOR OUTPUT SHAFT REAR BEARING)
35073JRING, HOLE SNAP (FOR OUTPUT SHAFT)
35481TGEAR, SPEEDMETER DRIVE (ATM)
35481VRING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)
35713SHAFT, INTERMEDIATE
35720GEAR ASSY, FRONT PLANETARY
35737AWASHER, PLANETARY CARRIER THRUST, NO.1
35738WASHER, PLANETARY CARRIER THRUST, NO.2
35743GEAR, FRONT PLANETARY RING
35743BRING, HOLE SNAP (FOR FRONT PLANETARY RING GEAR)
35748BRING, INTERMEDIATE SHAFT OIL SEAL
35760GEAR ASSY, REAR PLANETARY
35761GEAR, REAR PLANETARY RING
35762FLANGE, REAR PLANETARY RING GEAR
35762ABEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANGE)
35762BRING, HOLE SNAP (FOR REAR PLANETARY RING GEAR FLANGE)
35762CRING, SHAFT SNAP (FOR REAR PLANETARY RING GEAR)
35770ABEARING, THRUST (FOR OUTPUT SHAFT)
35789FRACE, THRUST BEARING (FOR REAR PLANETARY FLANGE)
35790ACLUTCH ASSY, 1 WAY
35790BRING, HOLE SNAP (FOR 1 WAY CLUTCH)
26 parts on this diagram · 1 diagram in section
