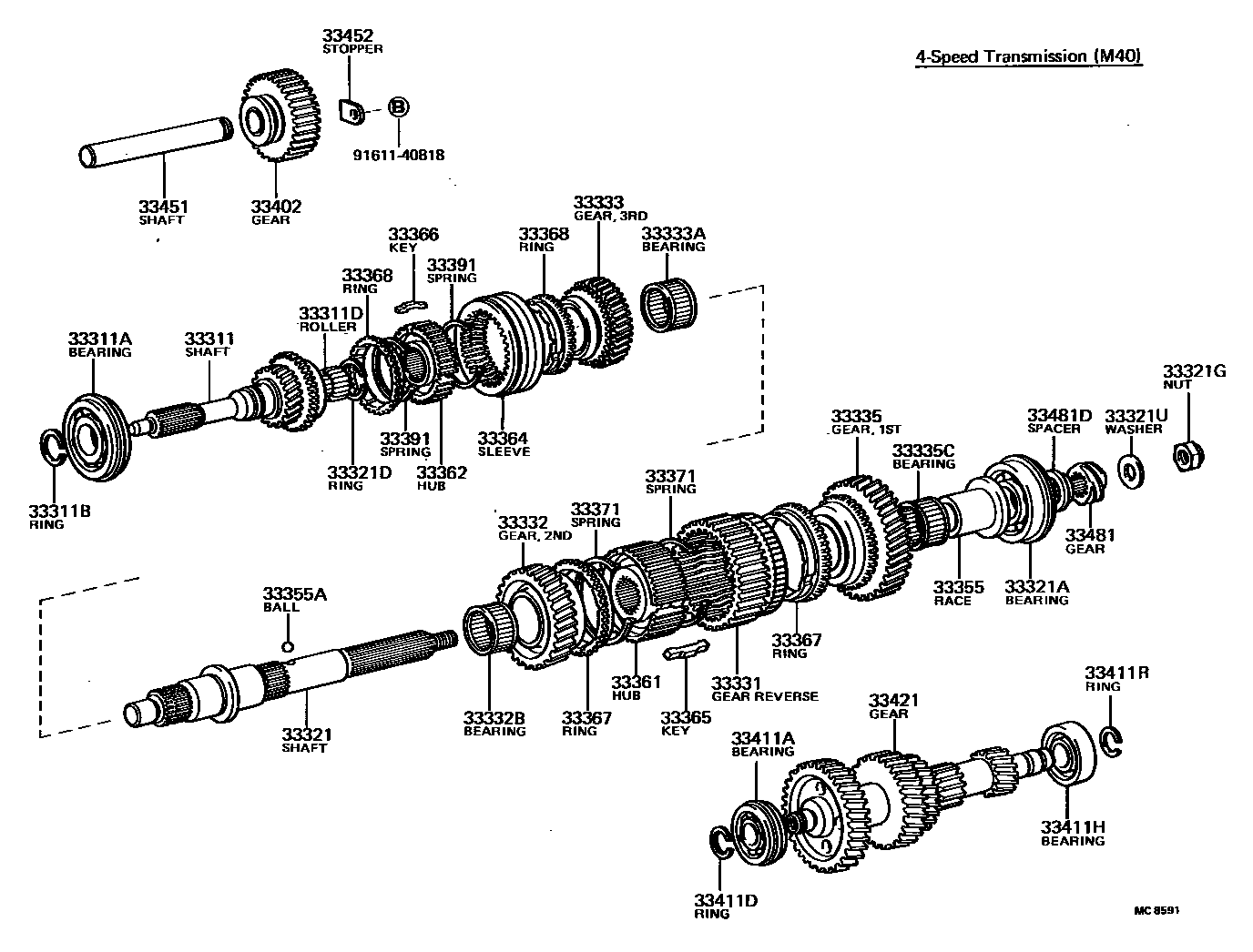

TRANSMISSION GEAR (MTM)

0001 1 0002 1 0003 1

33311SHAFT, INPUT

main33301-36050iBB2#,3#,RB20198510-199001

main33301-36051iBB2#,32,RB20..5F199001-199301

main33301-36060iFB30,HB3#198610-199301

main33301-36090iHZB30..5F199001-199301

main33301-36100iHDB30199001-199301

main33311-36051iRB20..4F198205-198510

main33311-36062iBB20,30,RB20..5F198205-198510

33311ABEARING (FOR INPUT SHAFT FRONT)

main90363-35002iBB20,30,RB20..5F198205-198408

main90363-45010iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F198510-199301

main90365-35001iBB20,30,RB20..5F198408-198510

33311BRING, SHAFT SNAP (FOR FRONT BEARING)

main90520-33107iBB20,30,RB20198205-198510

T=2.30-2.35,MARK 11,T=2.30-2.35

main90520-33108iBB20,30,RB20198205-198510

T=2.40,MARK 13,T=2.40-2.45

main90520-33109iBB20,30,RB20198205-198510

T=2.50,MARK 15,T=2.50-2.55

main90520-33132iBB20,30,RB20198205-198510

T=2.35-2.40,MARK 12,T=2.35-2.40

main90520-33133iBB20,30,RB20198205-198510

T=2.45,MARK 14,T=2.45-2.50

main90520-33134iBB20,30,RB20198205-198510

T=2.55,MARK 16,T=2.55-2.60

main90520-42002iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F198510-199301

T=2.50-2.55,MARK 2,T=2.50-2.55

main90520-42003iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F198510-199301

T=2.55-2.60,MARK 3,T=2.55-2.60

main90520-42004iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F198510-199301

T=2.60-2.65,MARK 4,T=2.60-2.65

main90520-42005iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F198510-199301

T=2.65-2.70,MARK 5,T=2.65-2.70

main90520-42006iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F198510-199301

T=2.70-2.75,MARK 6,T=2.70-2.75

main90520-42007iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F198510-199301

T=2.75-2.80,MARK 7,T=2.75-2.80

33311DBEARING, INPUT SHAFT

main90361-06049×16iBB20,30,RB20198205-198510

main90361-08004×12iBB2#,3#,FB30,HB3#,RB20198510-199001

main90361-09001×10iBB2#,32,HDB30,HZB30,RB20..5F; FB30199001-199301

33321SHAFT, OUTPUT

main33321-36023iRB20..4F198205-198510

main33321-36051iBB20,RB20..5F198205-198207

main33321-36052iBB20,30,RB20..5F198207-198510

main33321-36070iBB2#,3#,FB30,HB3#,RB20198510-198809

main33321-36071iFB30199001-199301

main33321-36090iBB2#,32,HDB30,HZB30,RB20..5F199001-199301

33321ABEARING (FOR OUTPUT SHAFT REAR)

main90363-32011iBB20,30,RB20..5F198205-198510

main90363-35011iRB20..4F198205-198508

main90363-40034iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F198508-199301

33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)

main90520-36250iBB20,30,RB20198205-198510

T=2.40-2.45,T=2.40-2.45

main90520-36251iBB20,30,RB20198205-198510

T=2.45-2.50,T=2.45-2.50

main90520-36252iBB20,30,RB20198205-198510

T=2.50-2.55,T=2.50-2.55

main90520-36253iBB20,30,RB20198205-198510

T=2.55-2.60,T=2.55-2.60

main90520-36254iBB20,30,RB20198205-198510

T=2.60-2.65,T=2.60-2.65

main90520-36255iBB20,30,RB20198205-198510

T=2.65-2.70,T=2.65-2.70

33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)

main90179-20001iBB20,30,RB20198205-198510

main90179-24002iBB2#,3#,FB30,HB3#,RB20198510-199001

main90179-24008iBB2#,32,HDB30,HZB30,RB20..5F199001-199301

33321UWASHER (FOR MANUAL TRANSMISSION OUTPUT SHAFT SET)

main90201-20010iBB20,30,RB20198205-198510

33331GEAR, REVERSE

main33031-36010iBB2#,3#,FB30,HB3#,HZB30,RB20..5F198510-199301

N=38

main33031-36020iHDB30199001-199301

main33331-36024iBB20,30,RB20198205-198510

N=38

33332GEAR, 2ND

main33033-36020iBB2#,3#,FB30,HB3#,HZB30,RB20..5F198510-199301

N=33

main33033-36040iHDB30199001-199301

main33332-36020iBB20,30,RB20198205-198510

N=33

33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)

main90364-46003iBB20,30,RB20198208-198510

main90364-46053iBB20,RB20198205-198208

main90364-54001iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F198510-199301

33333GEAR, 3RD

main33034-36020iBB2#,3#,FB30,HB3#,HZB30,RB20..5F198510-199301

N=33

main33034-36040iHDB30199001-199301

main33333-36021iBB20,30,RB20198205-198510

N=28

33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)

main90364-43001iBB20,30,RB20198211-198408

NSK

main90364-43003iBB20,RB20198208-198211

NSK

main90364-43004iBB20,30,RB20198208-198510

KOYO

main90364-43042iBB20,RB20198205-198208

main90364-47004iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F198510-199301

33335GEAR, 1ST

main33032-36020iBB23198808-199301

N=40

main33032-36040iHDB30199001-199301

main33335-36050iBB20,30,RB20198205-198510

N=40

33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)

main90364-46003iBB20,30,RB20198208-198510

main90364-46053iBB20,RB20198205-198208

main90364-58001iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F198510-199301

33355RACE, 1ST GEAR BEARING INNER

main33355-36010iBB20,30,RB20198205-198510

33355AKEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK

main90360-06004iBB20,30,RB20198205-198510

33361HUB, TRANSMISSION CLUTCH, NO.1

main33361-36010iBB20,30,RB20198205-198510

main33361-36020iBB2#,3#,FB30,HB3#,RB20198510-198905

main33361-36021iBB2#,32,FB30,HB3#,HDB30,HZB30,RB20..5F198905-199301

33362HUB, TRANSMISSION CLUTCH, NO.2

main33362-36021iBB20,30,RB20198205-198510

main33362-36030iBB2#,3#,FB30,HB3#,RB20198510-198905

main33362-36031iBB2#,32,FB30,HB3#,HDB30,HZB30,RB20..5F198905-199301

33364SLEEVE, TRANSMISSION HUB, NO.2

main33364-36051iBB20,30,RB20198205-198510

main33364-36060iBB2#,30,FB30,HB3#,RB20198510-198712

main33364-36061iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F198712-199301

33365KEY, SYNCHROMESH SHIFTING, NO.1

main33365-36010×3iBB20,30,RB20198205-198510

main33365-36020×3iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F198510-199301

33366KEY, SYNCHROMESH SHIFTING, NO.2

main33366-36020×3iBB20,30,RB20198205-198510

main33366-36030×3iBB2#,30,FB30,HB3#,RB20198510-198712

main33366-36031×3iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F198712-199301

33367RING, SYNCHRONIZER, NO.1

main33367-36030iBB20,30,RB20198205-198510

2ND

main33367-36040iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F198510-199301

1ST

main33367-40012iBB20,30,RB20198205-198510

1ST

33368RING, SYNCHRONIZER, NO.2

main33368-20012×2iBB20,30,RB20198205-198509

main33368-36040×2iBB2#,30,FB30,HB3#,RB20198509-198712

main33368-36041×2iBB2#,30,FB30,HB3#,RB20198712-198806

main33368-36042×2iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F198806-199006

main33368-36050×2iBB2#,32,FB30,HDB30,HZB30,RB20..5F199006-199301

33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1

main33371-36020×2iBB20,30,RB20198205-198510

main33371-36030×2iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F198510-199301

33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2

main33371-20010×2iBB20,30,RB20198205-198510

main33391-36020×2iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F198510-199301

33402GEAR SUB-ASSY, REVERSE IDLER

main33402-36030iBB20,30,RB20198205-198510

N=27

main33402-36060iBB2#,3#,FB30,HB3#,HZB30,RB20..5F198510-199301

N=27

main33402-36080iHDB30199001-199301

33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)

main90363-30001iRB20..4F198205-198510

main90365-30004iBB20,30,RB20..5F198205-198510

main90365-37002iBB2#,3#,FB30,HB3#,RB20198510-199301

main90365-37005iHDB30,HZB30..5F199001-199301

33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1

main90520-28246iBB20,30,RB20198205-198510

T=1.90-1.95,MARK E,T=1.90

main90520-28248iBB20,30,RB20198205-198510

T=2.00-2.05,MARK F,T=2.00

main90520-28249iBB20,30,RB20198205-198510

T=2.10-2.15,MARK G,T=2.10

33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)

main90363-30048iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F198510-199301

main90364-22003iBB20,30,RB20..5F198205-198510

main90365-30014iRB20..4F198205-198510

33411RRING, SNAP, COUNTER GEAR REAR BEARING

main90520-26030iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F198510-199301

T=1.95-2.00,MARK 0,T=1.95-2.00

main90520-26031iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F198510-199301

T=2.00-2.05,MARK 1,T=2.00-2.05

main90520-26032iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F198510-199301

T=2.05-2.10,MARK 2,T=2.05-2.10

main90520-26033iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F198510-199301

T=2.10-2.15,MARK 3,T=2.10-2.15

main90520-26034iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F198510-199301

T=2.15-2.20,MARK 4,T=2.15-2.20

main90520-26035iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F198510-199301

T=2.20-2.25,MARK 5,T=2.20-2.25

main90520-29099iRB20..4F198205-198510

T=2.1

main90521-38117iBB20,30,RB20..5F198205-198510

T=1.5

33421GEAR, COUNTER

main33411-36033iRB20..4F198205-198510

N=38,30,21,13,14

main33411-36061iBB20,30,RB20..5F198205-198510

N=37,30,21,13,14

main33421-36120iBB23,32..5F198808-199301

main33421-36140iBB20,21,22,30,RB20198510-199301

N=37,30,21,13,14

main33421-36170iHDB30199001-199301

33451SHAFT, REVERSE IDLER GEAR

main33451-36030iBB20,30,RB20198205-198510

main33451-36040iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F198510-199301

33452STOPPER, REVERSE IDLER GEAR SHAFT

main33452-36020iBB20,30,RB20198205-198310

main33452-36030iBB20,30,RB20198310-198510

33481GEAR, SPEEDOMETER DRIVE (MTM)

main33481-36080iBB30,RB20;BB20..WC..GEN198205-198510

N=4

main33481-36090iBB20198205-198510

N=5

main33481-36150iBB20,21..22S,25S,26S; BB20,21..WOC..ARL198510-199301

N=6,MARK 6X20-22,N=20,21,22

main33481-36160iFB30,HB30..LHD..WC..GEN; HB30..RHD..30S..WC; HB31,HDB30198610-199301

N=6,MARK 6X23-25

main33481-36170iBB30..RHD198510-199301

N=5,MARK 5X22-24

33481DSPACER (FOR SPEEDOMETER DRIVE GEAR)

main33487-36030iRB20..4F198205-198510

main33487-36040iBB20,30,RB20..5F198205-198510

main33487-36070iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F198510-199301

9161140818

main91611-40818
