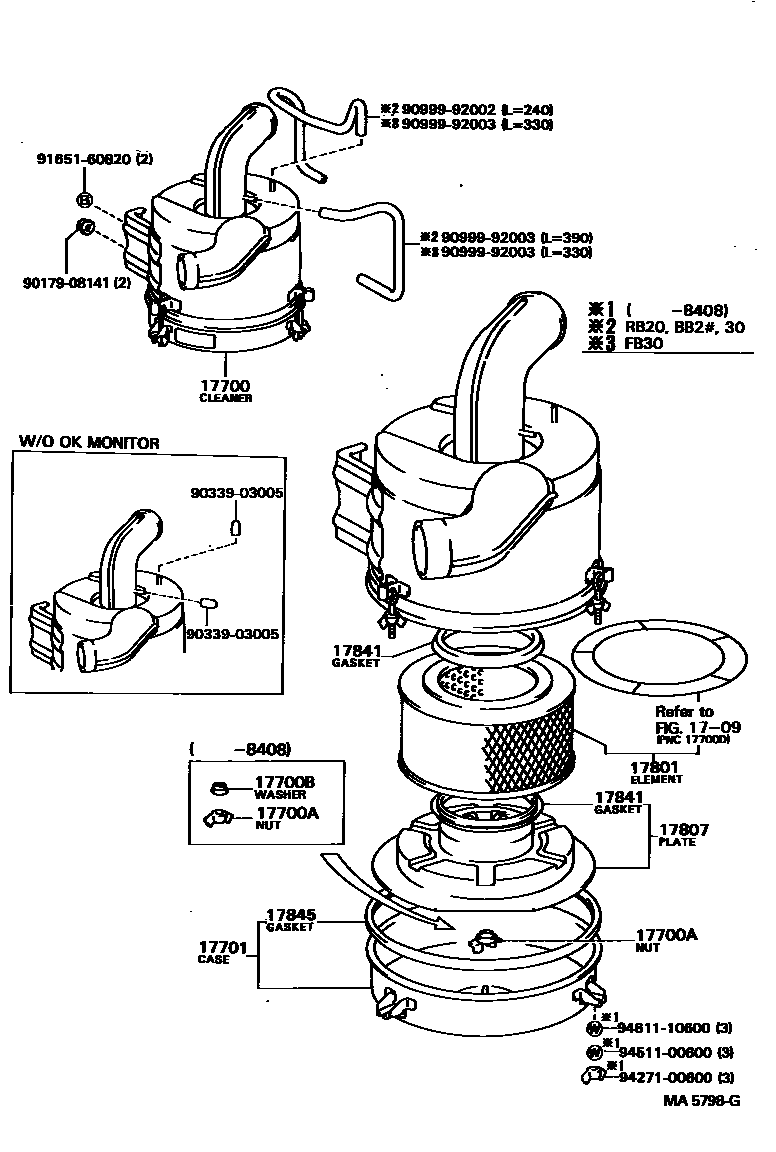

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0006 1 0008 1 0009 1 0010 1 0011 1 0013 1 0015 1 0016 1 0017 1 0018 1

1709

17700CLEANER ASSY, AIR

main17700-17080i1HDT..HDB30199001-199301

main17700-17110i1HZ..HZB30199001-199301

main17700-58050i3B..BB20198205-198307

CYCLONE,W/OK MONITOR

sub17700-58051

main17700-58051i3B..BB20,30198307-198408

CYCLONE W/O OK MONITOR

sub17700-58052

main17700-58052i13B,3B..BB2#,30..DLX,STD198408-199301

main17700-58060i22R..RB20..GEN,ME198205-199301

OIL BATH

main17700-58080i3B..BB20..WC..ARL198205-198307

CYCLONE W/OK MONITOR

sub17700-58081

main17700-58081i3B..BB20..WC..ARL198307-198610

CYCLONE W/OK MONITOR

main17700-58082i3B..BB21..16S198610-199205

CYCLONE W/OK MONITOR

main17700-58190i22R..RB20198610-199301

main17700-61220i3F..FB30198610-199301

main17700-68190i12HT..HB31198610-199001

main17700-68230i2H..HB30..GEN198610-198808

OIL BATH

17700ANUT, WING(FOR AIR CLEANER)

main90175-08008i12HT,1H#,2H..HB3#,HDB30,HZB30198408-199301

main94271-00800i2H..HB30..GEN198408-198808

OIL BATH

main94271-00800i22R..RB20198205-198408

17700BWASHER, SEAL(FOR AIR CLEANER)

main90210-08004i3B..BB20,30198205-198408

sub90210-08015

17701CASE SUB-ASSY, AIR CLEANER

main17701-44263i22R..RB20198205-199301

main17701-68101i3F..FB30198610-199301

main17702-44022i13B,3B..BB2#..GEN,ME198205-198808

OIL BATH

main17702-68010i2H..HB30..GEN198610-198808

OIL BATH

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-56010i22R..RB20..GEN,ME198205-199301

OIL BATH

main17801-56020i13B,3B..BB2#,30198205-199301

main17801-58010i14B..BB32..4FC198610-199301

main17801-61030i1HZ,2H..HB30,HZB30198610-199301

main17801-68030i3F..FB30198610-199301

17807PLATE SUB-ASSY, AIR CLEANER FILTER SET

main17807-56011i22R..RB20198205-199301

main17807-68010i12HT,1H#,2H..HB3#,HDB30,HZB30198610-199301

17841GASKET, FILTER ELEMENT

main17841-44030i13B,14B,3B..BB2#,3#198205-199301

main17841-56020i13B,3B..BB2#..GEN,ME198205-199001

OIL BATH

main17841-68010i12HT,1H#,2H..HB3#,HDB30,HZB30198610-199301

17845GASKET, AIR CLEANER CAP

main17845-56020i2H..HB30..GEN198610-198808

OIL BATH

main17845-56020i13B,14B,3B..BB2#,3#198205-199301

main17845-68020i12HT,1H#,2H..HB3#,HDB30,HZB30198610-199301

sub17845-17010

9017908141

main90179-08141

9033903005

main90339-03005

9099992002

main90999-92002

9099992003

main90999-92003

9165160820

main91651-60820

9427100600

main94271-00600

9451100600

main94511-00600

9461110600

main94611-10600

17 parts on this diagram · 14 diagrams in section
