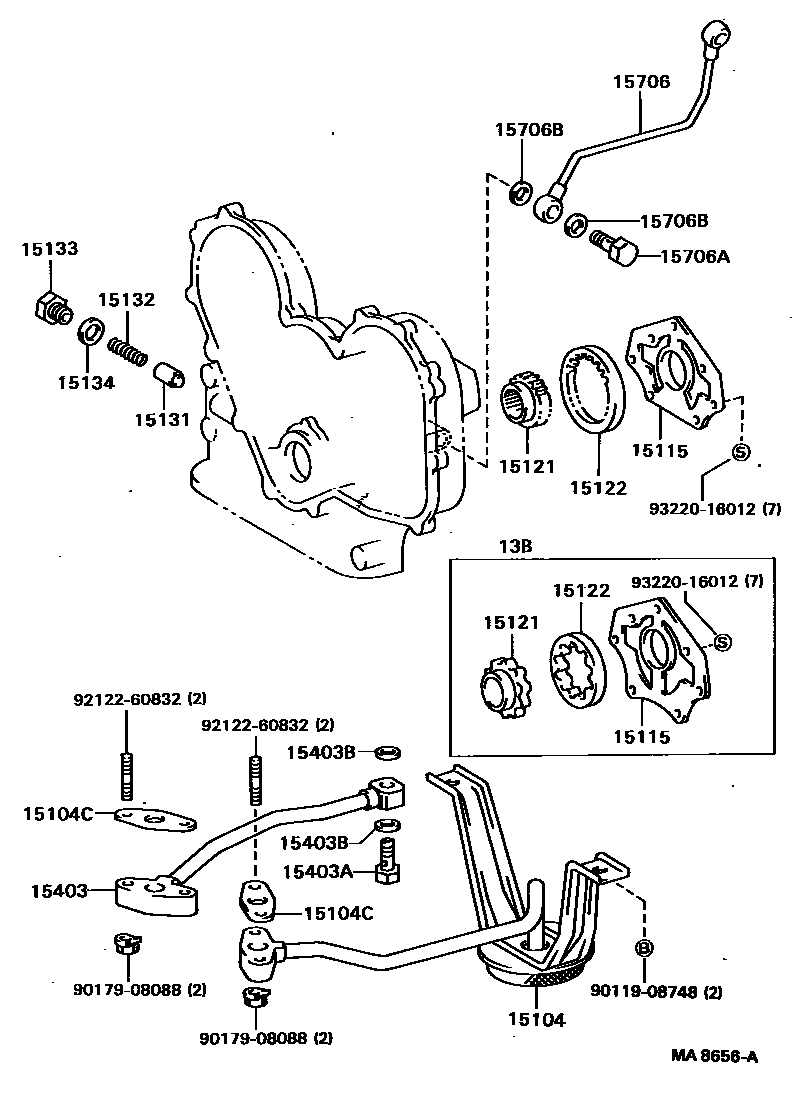

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

15104STRAINER SUB-ASSY, OIL

main15104-17020i1H#..HDB30,HZB30199001-199208

main15104-17050i1H#..HDB30,HZB30199208-199301

main15104-38040i22R..RB20198205-199301

main15104-58010i3B..BB20,30198205-198408

main15104-58030i13B,3B..BB2#,30198408-198808

main15104-58040i14B,3B..BB2#,32198808-199301

main15104-61020i3F..FB30199001-199301

main15104-68012i2H..HB30198610-199001

main15104-68020i12HT..HB31198610-199001

15104CGASKET(FOR OIL STRAINER)

main15147-38020i22R..RB20198205-199301

main15149-56020×2i14B,3B..BB2#,32198808-199301

main15149-68010×2i12HT,2H..HB3#198610-199001

main15193-56010×2i3B..BB20,30198205-198408

main15193-56020×2i13B,3B..BB2#,30198408-198808

15115COVER, OIL PUMP

main15115-35010i22R..RB20; 22R..RB20..WC198205-198212

W/PS

main15115-35020i22R..RB20198408-199301

main15115-38022i22R..RB20..WOC198205-198212

main15115-56030i3B..BB20,21,30198205-198808

main15115-56040i13B..BB22198510-198808

main15115-68020i12HT,2H..HB3#198610-199001

15121GEAR, OIL PUMP DRIVE

main15121-38020i22R..RB20198205-199301

main15121-56030i3B..BB20,21,30198205-198808

N=25

main15121-56040i13B..BB22198510-199301

main15121-61011i3F..FB30198610-199301

main15121-68020i12HT,2H..HB3#198610-199001

15122GEAR, OIL PUMP DRIVEN

main15122-38020i22R..RB20198205-199301

main15122-56030i3B..BB20,21,30198205-198808

N=31

main15122-56040i13B..BB22198510-199301

main15122-61011i3F..FB30198610-199301

main15122-68020i12HT,2H..HB3#198610-199001

15131VALVE, OIL PUMP RELIEF

main15131-17010i1H#..HDB30,HZB30199001-199301

main15131-22010i12HT,2H..HB3#198610-199001

main15131-24010i13B,14B,3B..BB2#,3#; 3F..FB30198610-199301

main15131-38030i22R..RB20198205-199301

15132SPRING, OIL PUMP RELIEF VALVE

main15132-17010i1H#..HDB30,HZB30199001-199301

main15132-40010i3F..FB30198610-199301

main15132-46010i22R..RB20198205-199301

main15132-56040i13B..BB22198510-199301

main15132-56080i14B,3B..BB2#,32198808-199301

main15132-76011i12HT,2H..HB3#; 3B..BB20,30198205-198808

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i1H#..HDB30,HZB30199001-199301

main15133-20010i12HT,2H..HB3#; 13B,14B,3B..BB2#,30; 22R..RB20198205-199301

main15133-24010i3F..FB30198610-199301

15134GASKET, OIL PUMP RELIEF VALVE

main15134-17010i1H#..HDB30,HZB30199001-199301

main15134-20010i12HT,2H..HB3#; 13B,14B,3B..BB2#,30; 22R..RB20198205-199301

15403PIPE SUB-ASSY, OIL PUMP OUTLET

main15403-56040i3B..BB20,30198205-198408

main15403-56041i13B,3B..BB2#,30198408-198808

main15403-56050i14B,3B..BB2#,32198808-199301

main15403-68010i12HT,2H..HB3#198610-199001

15403AUNION(FOR OIL PUMP OUTLET PIPE)

main90401-18002i13B,3B..BB2#,30198205-198808

main90401-18007i12HT,2H..HB3#198610-199001

main90401-20009i14B,3B..BB2#,32198808-199301

15403BGASKET(FOR OIL PUMP OUTLET PIPE)

main90430-18012×2i12HT,2H..HB3#; 13B,3B..BB2#,30198205-198808

main90430-20018×2i14B,3B..BB2#,32198808-199301

15706PIPE SUB-ASSY, OIL, INJECTION PUMP OUTLET

main15077-56010i13B,3B..BB2#,30198205-198808

15706AUNION(FOR INJECTION PUMP OUTLET PIPE)

main90044-01010i13B,3B..BB2#,30198205-198808

15706BGASKET(FOR INJECTION PUMP OUTLET PIPE)

main90044-30026×2i13B,3B..BB2#,30198205-198808

9011908748

main90119-08748

9017908088

main90179-08088

9212260832

main92122-60832

9322016012

main93220-16012
