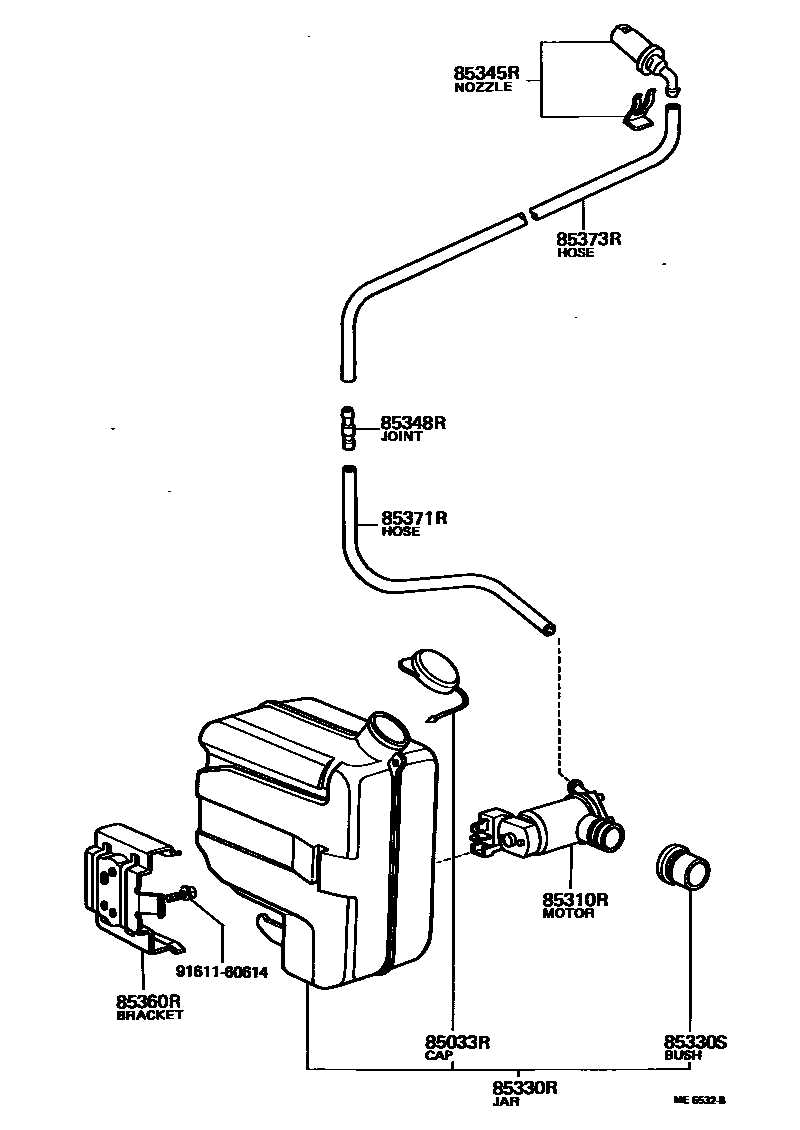

REAR WASHER

85033RCAP ASSY, REAR WASHER

main85033-36120iBB10,RB1#..(BC,DLX)..(GEN,IRQ)197708-198204

85310RMOTOR ASSY, REAR WASHER

main85310-20100iBB10..DLX; RB1#..(BC,DLX)..GEN197708-198204

12V

main85310-25010iBB10..(BC,DLX)..(GEN,IRQ)197708-198204

24V

85330RJAR ASSY, REAR WASHER

main85330-25040iBB10,RB1#..(BC,DLX)..(GEN,IRQ)197708-198204

85330SBUSH, REAR WASHER JAR

main90099-32089iBB10,RB1#..(BC,DLX)..(GEN,IRQ)197708-198204

85345RNOZZLE, REAR WASHER

main85035-26012iBB10,RB1#..(BC,DLX)..(GEN,IRQ)197708-198204

85348RJOINT, REAR WASHER HOSE, NO.1

main85355-87201iBB10,RB1#..(BC,DLX)..(GEN,IRQ)197708-198204

2WAY

85360RBRACKET ASSY, REAR WASHER

main85361-95A00iBB10,RB1#..(BC,DLX)..(GEN,IRQ)197708-198204

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33316iBB10,RB1#..(BC,DLX)..GEN197708-197912

L=1000(*H,L=200)

main90446-06013iBB10,RB1#..(BC,DLX)..(GEN,IRQ)197912-198204

L=1000(*H,L=200)

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90446-06205iBB10,RB1#..(BC,DLX)..(GEN,IRQ)197901-198204

L=1200

main90446-06279iBB10,RB1#..(BC,DLX)..GEN197708-197901

L=1600

9161160614

main91611-60614

10 parts on this diagram · 1 diagram in section
