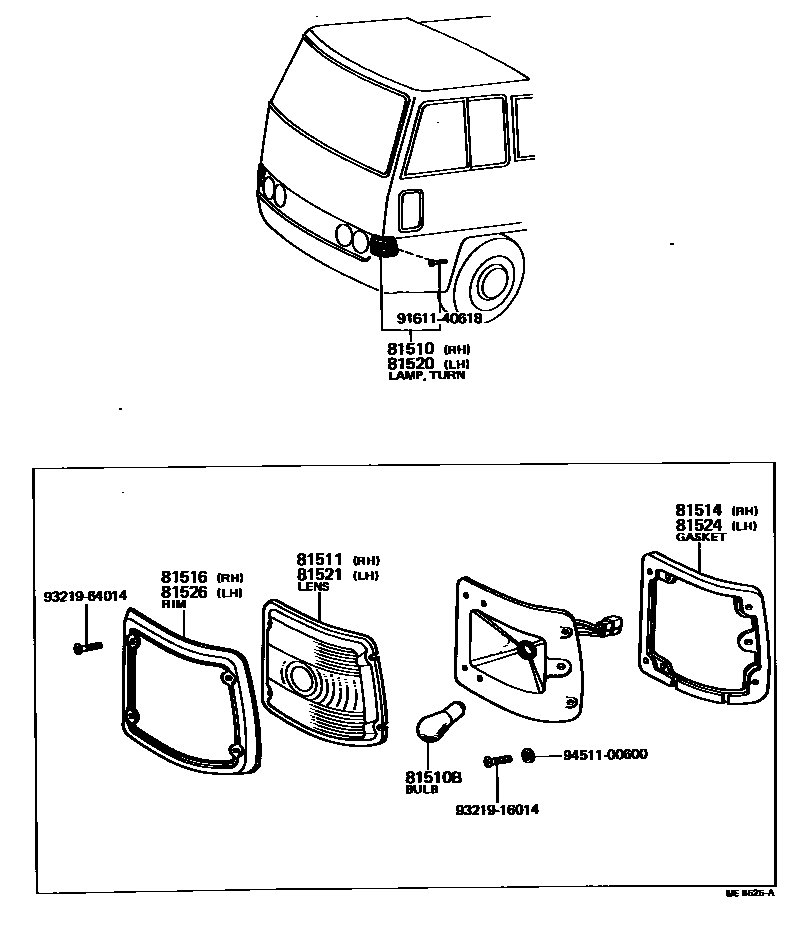

FRONT TURN SIGNAL LAMP

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-36143iBB10..BC..ARL198008-198204

24V

main81510-36152iBB10..(DLX,STD)..GEN; RB13..GEN198008-198204

12V

main81510-36162iBB10..GEN,IRQ198008-198204

24V

main81510-36252iRB13..ARL;BB10..STD..ARL198008-198204

12V

main81510-39096iBB10..(DLX,STD)..GEN; RB1#..GEN197708-198008

12V

main81510-39106iBB10..GEN197708-198008

24V

main81510-39235iRB11..ARL;BB10..STD..ARL197708-198008

12V

main81510-39245iBB10..BC..ARL197905-198008

24V

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-16021×2iBB10..GEN,IRQ198008-198204

24V 25/10W,24V 25/10W

main99132-11230×2iRB11,13..ARL;BB10..STD..ARL197708-198204

12V 23W,12V 23W

main99132-21230×2iBB10..(DLX,STD)..GEN; RB1#..GEN197708-198204

12V 23/8W,12V 23/8W

main99134-11250×2iBB10..BC..ARL197905-198204

24V 25W,24V 25W

main99134-22250×2iBB10..GEN197708-198008

24V 25/10W,24V 25/10W

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-36130iBB10,RB1#197708-198204

AMBER

81514GASKET, FRONT TURN SIGNAL LAMP BODY, RH

main81512-36130iBB10,RB1#197708-198204

81516RIM, FRONT TURN SIGNAL LAMP, RH

main81516-36130iBB10,RB1#197708-198204

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-36093iBB10..BC..ARL198008-198204

24V

main81520-36102iBB10..(DLX,STD)..GEN198008-198204

12V

main81520-36112iBB10..GEN,IRQ198008-198204

24V

main81520-36192iRB13..ARL;BB10..STD..ARL198008-198204

12V

main81520-39096iBB10..(DLX,STD)..GEN; RB1#..GEN197708-198008

12V

main81520-39097iRB13..GEN198008-198204

12V

main81520-39106iBB10..GEN197708-198008

24V

main81520-39235iRB11..ARL;BB10..STD..ARL197708-198008

12V

main81520-39245iBB10..BC..ARL197905-198008

24V

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-36080iBB10,RB1#197708-198204

AMBER

81524GASKET, FRONT TURN SIGNAL LAMP BODY, LH

main81522-36080iBB10,RB1#197708-198204

81526RIM, FRONT TURN SIGNAL LAMP, LH

main81526-36080iBB10,RB1#197708-198204

9161140618

main91611-40618

9321916014

main93219-16014

9321964014

main93219-64014

9451100600

main94511-00600

13 parts on this diagram · 1 diagram in section
