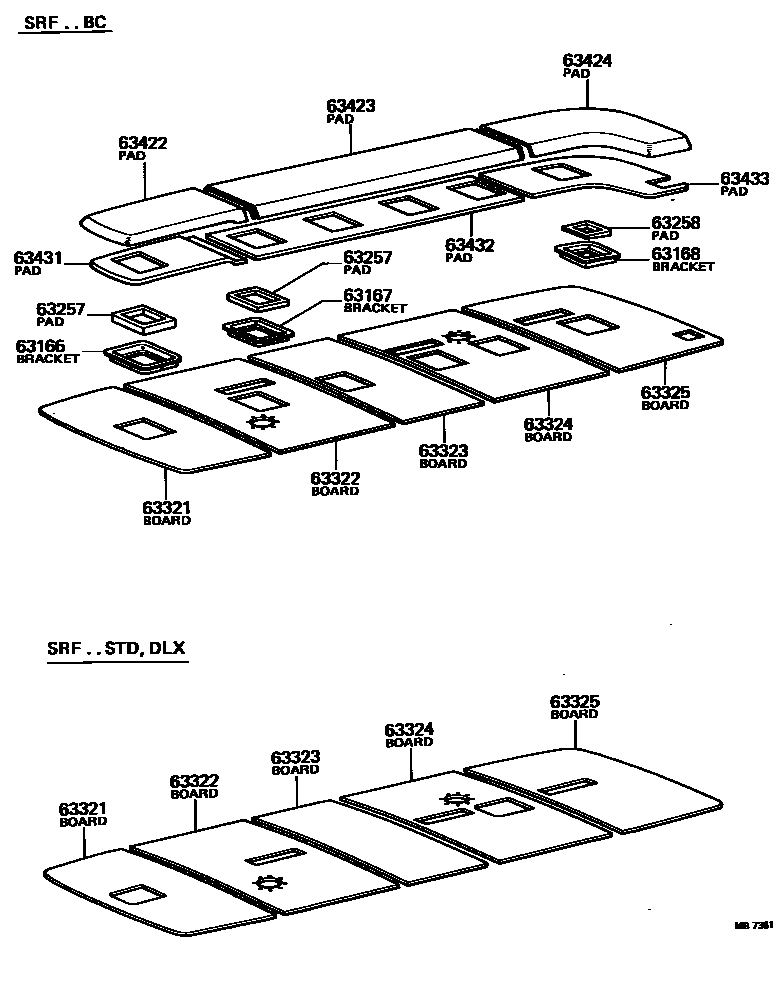

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1 0003 1 0004 1

63166BRACKET, GRILLE HOLDER BASE SET, FRONT

main63166-90500iBB10,RB11,13..SRF..BC197708-198204

63167BRACKET, GRILLE HOLDER BASE SET, REAR

main63167-90501×5iBB10,RB11,13..SRF..BC197708-198204

63168BRACKET, ROOF DUCT ORNAMENT SET

main63168-90740iBB10,RB11,13..SRF..BC197708-198204

63257PAD, GRILLE HOLDER BASE SET BRACKET INSULATION

main63256-90500iBB10,RB11,13..SRF..BC197708-198204

FR

main63257-90500×5iBB10,RB11,13..SRF..BC197708-198204

RR

63258PAD, ROOM DUCT ORNAMENT SET BRACKET INSULATION

main63258-90740iBB10,RB11,13..SRF..BC197708-198204

63321BOARD, ROOF, NO.1

main63311-90740iBB10,RB11,13..SRF..BC197708-198204

main63311-90741iBB10,RB1#..SRF..(DLX,STD)197708-198204

63322BOARD, ROOF, NO.2

main63312-90740iBB10,RB11,13..RHD..SRF..BC197708-198204

main63312-90741iBB10,RB11,13..LHD..SRF..BC197708-198204

main63312-90742iBB10,RB11,13..HRF..(DLX,STD)197708-198204

main63312-90743iBB10,RB11,13..HRF..BC197708-198204

main63312-90744iBB10,RB1#..RHD..SRF..(DLX,STD)197708-198204

main63312-90745iBB10,RB1#..LHD..SRF..(DLX,STD)197708-197910

main63312-90746iBB10,RB1#..RHD..SRF..(DLX,STD)197708-198204

W/O RADIO

main63312-90747iBB10,RB1#..LHD..SRF..(DLX,STD)197708-197910

W/O RADIO

main63312-90748iBB10,RB11,13..RHD..SRF..BC197708-198204

W/O RADIO

main63312-90749iBB10,RB11,13..LHD..SRF..BC197708-198204

W/O RADIO

main63312-90750iBB10,RB11,13..HRF..(DLX,STD)197708-198204

W/O RADIO

main63312-90752iBB10,RB11,13..HRF..BC197708-198204

W/O RADIO

main63312-90753iBB10,RB1#..LHD..SRF..(DLX,STD)197910-198204

W/O RADIO

main63312-90754iBB10,RB1#..LHD..SRF..(DLX,STD)197910-198204

main63312-90755iBB10,RB13..RHD..SRF..(DLX,STD)198010-198204

W/STEREO

main63312-90756iBB10,RB1#..RHD..SRF..BC198004-198204

W/STEREO

main63312-90757iBB10,RB1#..HRF..DLX198004-198010

W/STEREO

main63312-90758iBB10,RB1#..HRF..BC..GEN198004-198204

W/STEREO

main63312-90759iBB10,RB1#..LHD..SRF..DLX198004-198010

W/STEREO

main63312-90760iBB10,RB1#..LHD..SRF..BC198004-198204

W/STEREO

63323BOARD, ROOF, NO.3

main63313-90740iBB10,RB11,13..SRF..BC197708-198204

main63313-90741iBB10,RB1#..SRF..(DLX,STD)197708-198204

main63313-90744iBB10,RB11,13..HRF..(DLX,STD)197708-198204

main63313-90745iBB10,RB11,13..HRF..BC197708-198204

63324BOARD, ROOF, NO.4

main63314-90740iBB10,RB11,13..RHD..SRF..BC197708-198204

main63314-90741iBB10,RB11,13..LHD..SRF..BC197708-198204

main63314-90742iBB10,RB1#..RHD..SRF..(DLX,STD)197708-198204

main63314-90743iBB10,RB11,13..HRF..(DLX,STD)197708-198204

main63314-90744iBB10,RB11,13..HRF..BC197708-198204

main63314-90745iBB10,RB1#..LHD..SRF..(DLX,STD)197708-197910

main63314-90746iBB10,RB1#..RHD..SRF..(DLX,STD)197708-198204

W/O RADIO

main63314-90747iBB10,RB1#..LHD..SRF..(DLX,STD)197708-197910

W/O RADIO

main63314-90749iBB10,RB11,13..RHD..SRF..BC197708-198204

W/O RADIO

main63314-90750iBB10,RB11,13..LHD..SRF..BC197708-198204

W/O RADIO

main63314-90751iBB10,RB11,13..HRF..(DLX,STD)197708-198204

W/O RADIO

main63314-90753iBB10,RB11,13..HRF..BC197708-198204

W/O RADIO

main63314-90755iBB10,RB1#..LHD..SRF..(DLX,STD)197910-198204

W/O RADIO

main63314-90756iBB10,RB1#..LHD..SRF..(DLX,STD)197910-198204

main63314-90757iBB10,RB1#..RHD..SRF..DLX198004-198010

W/STEREO

main63314-90758iBB10,RB1#..RHD..SRF..BC198004-198204

W/STEREO

main63314-90759iBB10,RB1#..HRF..DLX198004-198010

W/STEREO

main63314-90760iBB10,RB1#..HRF..BC..GEN198004-198204

W/STEREO

main63314-90761iBB10,RB1#..LHD..SRF..DLX198004-198010

W/STEREO

main63314-90762iBB10,RB1#..LHD..SRF..BC198004-198204

W/STEREO

63325BOARD, ROOF, NO.5

main63315-90740iBB10,RB11,13..RHD..SRF..BC197708-198204

main63315-90741iBB10,RB11,13..LHD..SRF..BC197708-198204

main63315-90742iBB10,RB11,13..HRF..(DLX,STD)197708-198204

main63315-90743iBB10,RB11,13..HRF..BC197708-198204

main63315-90744iBB10,RB1#..RHD..SRF..(DLX,STD)197708-198204

main63315-90745iBB10,RB1#..LHD..SRF..(DLX,STD)197708-197910

main63315-90746iBB10,RB1#..LHD..SRF..(DLX,STD)197910-198204

63422PAD, ROOF DUCT INSULATION, UPPER FRONT

main63422-90740iBB10,RB11,13..SRF..BC197708-198204

63423PAD, ROOF DUCT INSULATION, UPPER CENTER

main63423-90740iBB10,RB11,13..SRF..BC197708-198010

main63423-90741iBB10,RB13..SRF..BC198010-198204

63424PAD, ROOF DUCT INSULATION, UPPER REAR

main63424-90740iBB10,RB11,13..SRF..BC197708-198010

main63424-90741iBB10,RB13..SRF..BC198010-198204

63431PAD, FRONT DUCT INSULATION, LOWER FRONT

main63431-90740iBB10,RB11,13..SRF..BC197708-198204

63432PAD, ROOF DUCT INSULATION, LOWER CENTER

main63432-90740iBB10,RB11,13..SRF..BC197708-198204

63433PAD, ROOF DUCT INSULATION, LOWER REAR

main63433-90740iBB10,RB11,13..SRF..BC197708-198204

16 parts on this diagram · 4 diagrams in section
