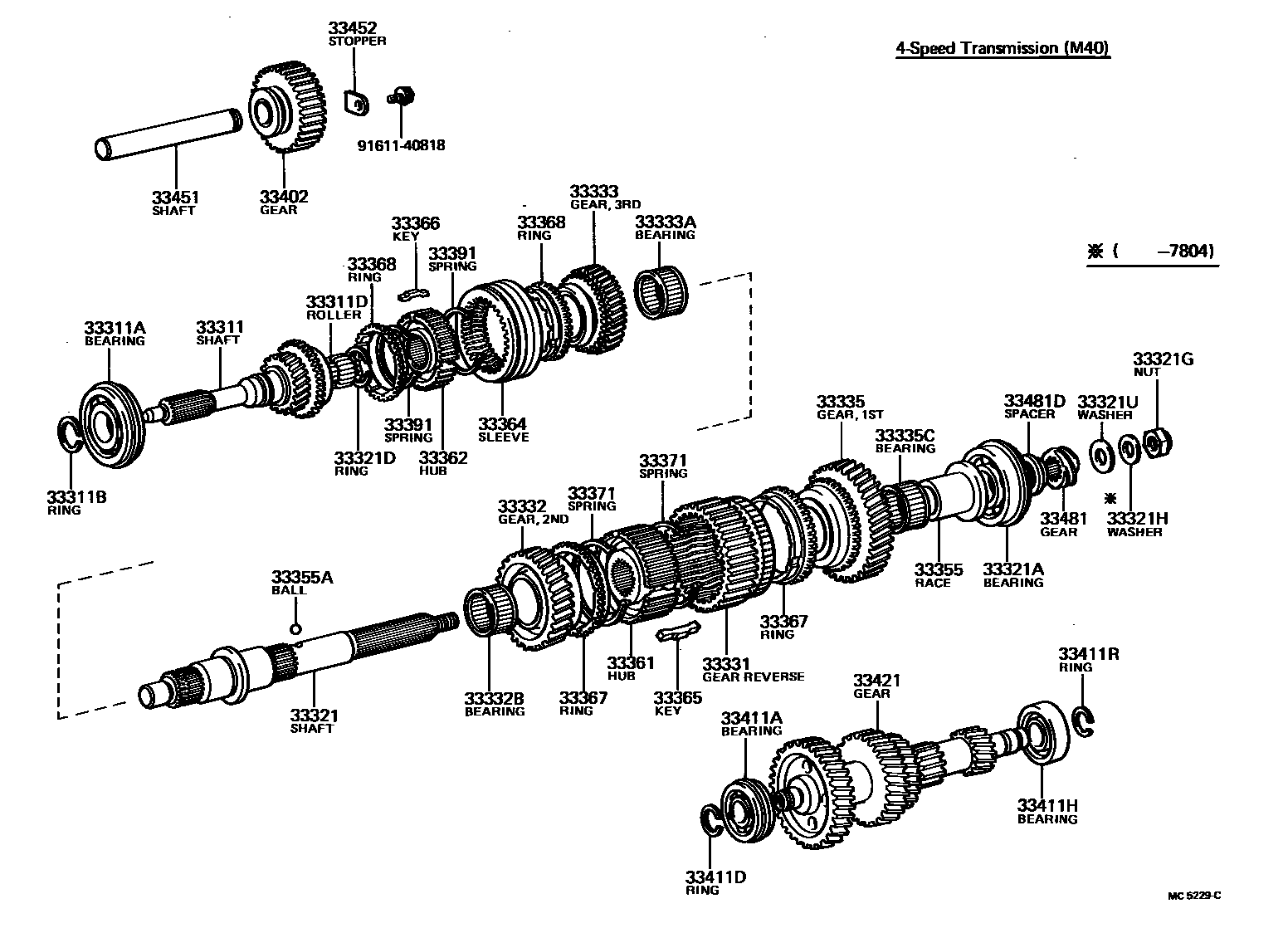

TRANSMISSION GEAR (MTM)
33311SHAFT, INPUT
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=2.30-2.35,MARK 11,T=2.30-2.35
T=2.40,MARK 13,T=2.40-2.45
T=2.50,MARK 15,T=2.50-2.55
T=2.35-2.40,MARK 12,T=2.35-2.40
T=2.45,MARK 14,T=2.45-2.50
T=2.55,MARK 16,T=2.55-2.60
33311DBEARING, INPUT SHAFT
33321SHAFT, OUTPUT
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
T=2.40-2.45,T=2.40-2.45
T=2.45-2.50,T=2.45-2.50
T=2.50-2.55,T=2.50-2.55
T=2.55-2.60,T=2.55-2.60
T=2.60-2.65,T=2.60-2.65
T=2.65-2.70,T=2.65-2.70
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33321HSHIM (FOR OUTPUT SHAFT REAR BEARING)
33321UWASHER (FOR MANUAL TRANSMISSION OUTPUT SHAFT SET)
33331GEAR, REVERSE
33332GEAR, 2ND
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33333GEAR, 3RD
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33335GEAR, 1ST
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33355RACE, 1ST GEAR BEARING INNER
33355AKEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK
33361HUB, TRANSMISSION CLUTCH, NO.1
33362HUB, TRANSMISSION CLUTCH, NO.2
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
2ND
1ST
33368RING, SYNCHRONIZER, NO.2
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33402GEAR SUB-ASSY, REVERSE IDLER
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
T=1.90-1.95,MARK E,T=1.9
T=2.00-2.05,MARK F,T=2.0
T=2.10-2.15,MARK G,T=2.1
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
33411RRING, SNAP, COUNTER GEAR REAR BEARING
T=2.1
T=1.5
33421GEAR, COUNTER
33451SHAFT, REVERSE IDLER GEAR
33452STOPPER, REVERSE IDLER GEAR SHAFT
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=4,DRIVEN GEAR N=16
N=5,DRIVEN GEAR N=19
N=4,DRIVEN GEAR N=19
N=4,DRIVEN GEAR N=16; N=4,DRIVEN GEAR N=17
N=5,DRIVEN GEAR N=19
N=4,DRIVEN GEAR N=19
33481DSPACER (FOR SPEEDOMETER DRIVE GEAR)
9161140818
main91611-40818
39 parts on this diagram · 2 diagrams in section
