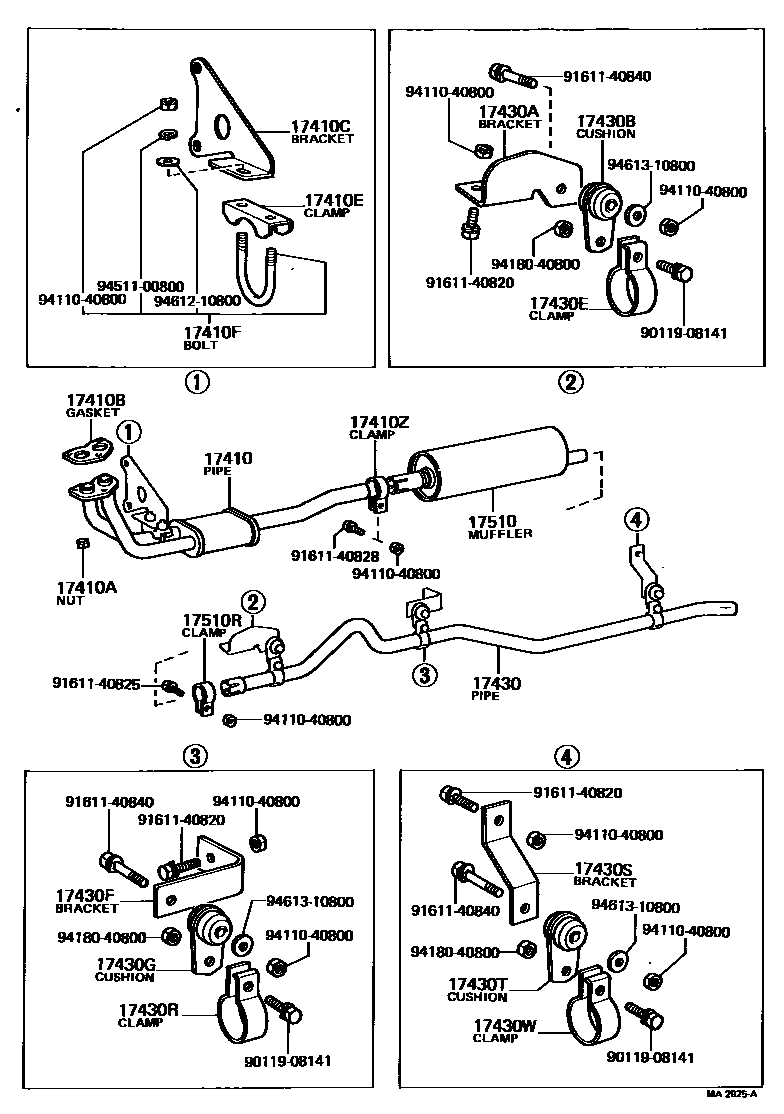

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17410ECLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
17410FBOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
17410ZCLAMP NO.2, EXHAUST PIPE FRONT (FOR REAR)
17430PIPE ASSY, EXHAUST, TAIL
17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)
17430BCUSHION, EXHAUST TAILPIPE(FOR FRONT)
17430ECLAMP NO.2, EXHAUST TAILPIPE(FOR FRONT)
17430FBRACKET, EXHAUST TAILPIPE(FOR CENTER)
17430GCUSHION, EXHAUST TAILPIPE(FOR CENTER)
17430RCLAMP NO.2, EXHAUST TAILPIPE (FOR CENTER)
17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)
17430TCUSHION, EXHAUST TAILPIPE (FOR REAR)
17430WCLAMP NO.2, EXHAUST TAILPIPE (FOR REAR)
17510MUFFLER ASSY
17510RCLAMP NO.2, MUFFLER, REAR
9011908141
main90119-08141
9161140820
main91611-40820
9161140825
main91611-40825
9161140828
main91611-40828
9161140840
main91611-40840
9411040800
main94110-40800
9418040800
main94180-40800
9451100800
main94511-00800
9461210800
main94612-10800
9461310800
main94613-10800
29 parts on this diagram · 6 diagrams in section
