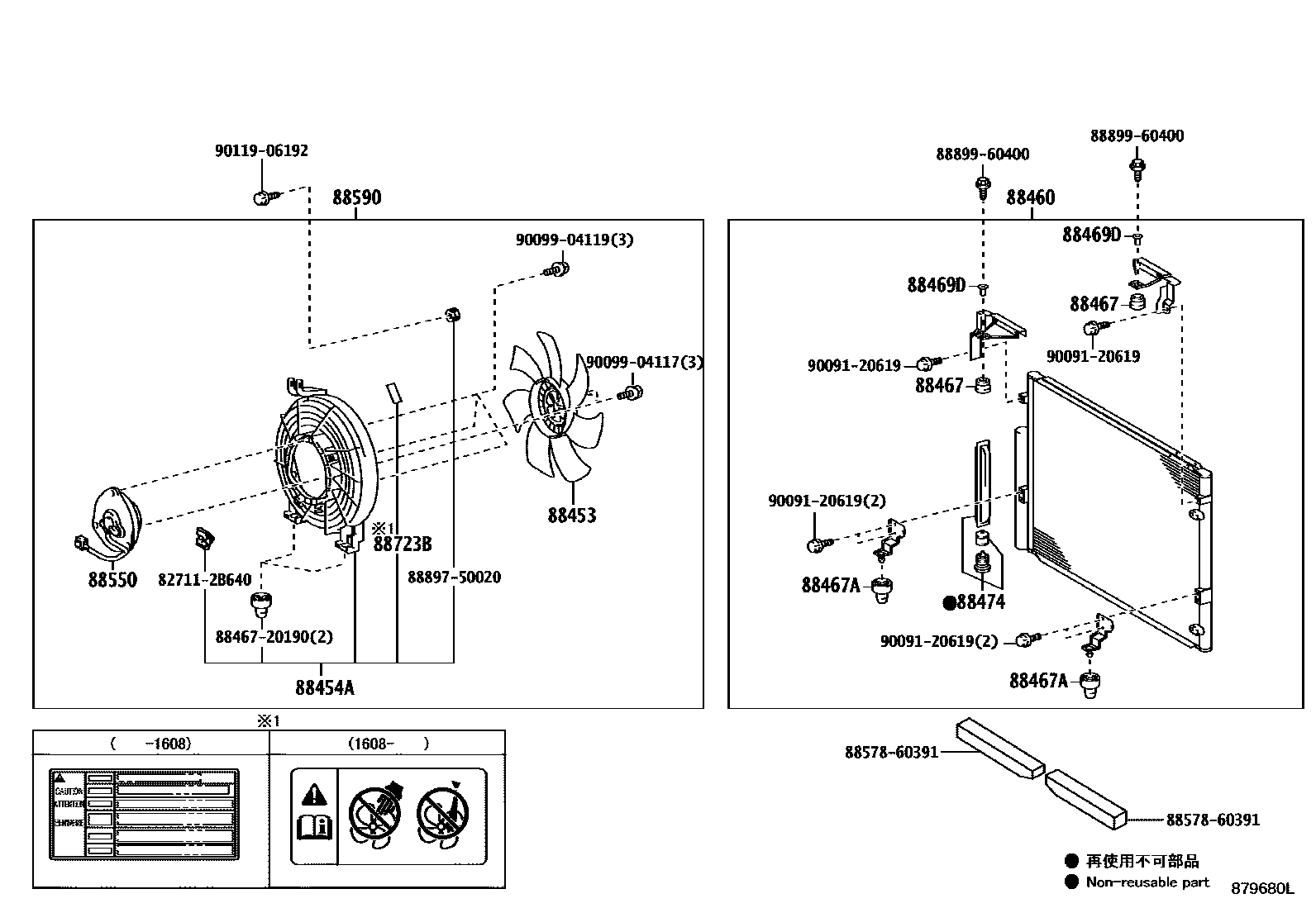

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1CONDENSOR & FUN SHROUD 0002 1CONDENSOR & FUN SHROUD 0003 1FRONT 0004 1FRONT 0005 1REAR,W(COOL BOX) 0006 1REAR,W/O(COOL BOX)

88453FAN, COOLING (FOR CONDENSER)

main88453-60020iURJ201200711-201201

88454ASHROUD, FAN

main88454-60050iURJ20#201201-201209

main88454-60051iURJ20#201209-201509

main88454-60052iURJ201,VDJ201201608

88460CONDENSER ASSY, COOLER

main88460-60400iURJ201..ARL,CHI200711-201201

main88460-60410iURJ201..GCC200711-201201

main88460-60570iURJ201,VDJ201..ARL202006-202111

main88460-60580iURJ201,VDJ201..GCC202006-202111

88467CUSHION, COOLER CONDENSER, NO.1

main88467-12180×2iURJ20#201201-201509

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-60010×2iURJ201,VDJ201..ARL,CHI201509-202008

88469DCOLLAR, CONDENSER BRACKET, NO.1

main88469-52010×2iURJ201200711-201201

88474DRYER, COOLER

main88474-12030iURJ201..ARL,CHI200711-201201

main88474-17010iURJ201..GCC201201-201509

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-60110iURJ201200711-201201

88590BLOWER ASSY, W/SHROUD

main88590-60080iURJ201200711-201201

main88590-60081iURJ20#201209-201509

main88590-60082iURJ201,VDJ201201608

88723BLABEL, COOLER SERVICE CAUTION

main16793-28020iURJ20#201201-201209

main16793-31070iURJ201,VDJ201201608

main16793-38010iURJ20#201209-201509

827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B640

8846720190CUSHION, COOLER CONDENSER, NO.1

main88467-20190

8857860391PAKING, COOLER AIR DUCT

main88578-60391

8889750020VALVE, COOLER MAGNET

main88897-50020

8889960400COVER, EVAPORATOR

main88899-60400

9009120619

main90091-20619

9009904117

main90099-04117

9009904119

main90099-04119

9011906192

main90119-06192

19 parts on this diagram · 6 diagrams in section
