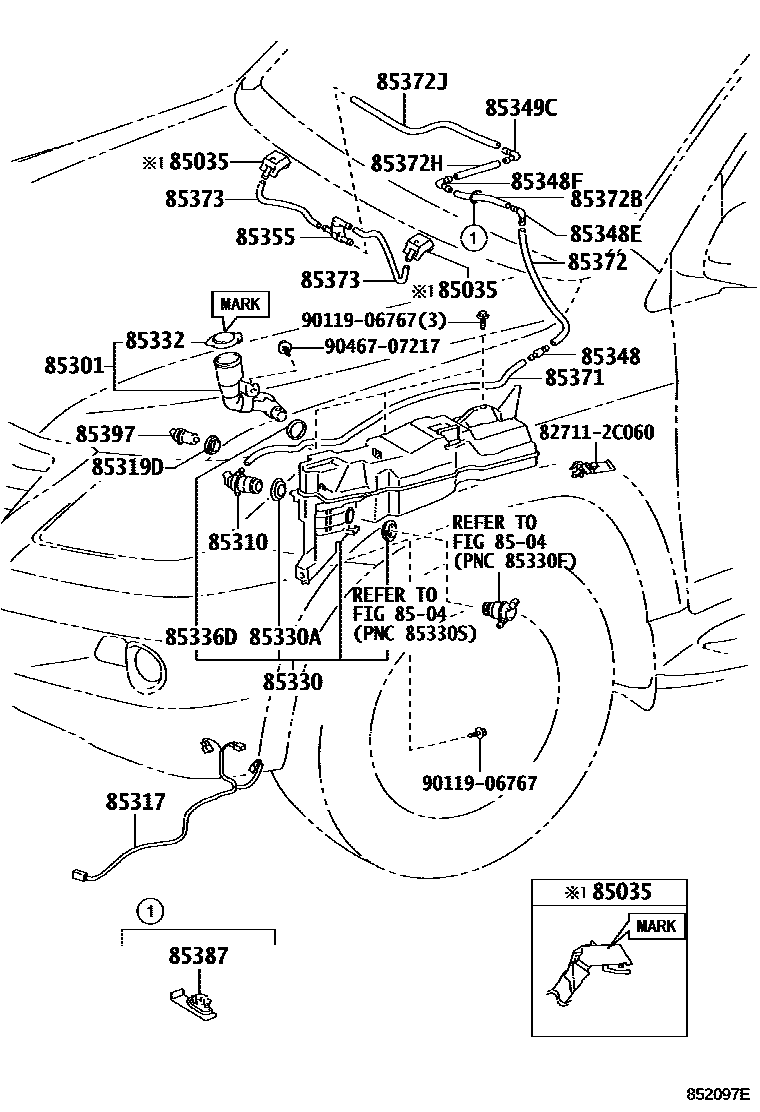

WINDSHIELD WASHER

0001 1W/O(HEADLAMP CLEANER) 0002 1W(HEADLAMP CLEANER) 0003 1W(HEADLAMP CLEANER)

85035NOZZLE SUB-ASSY, WASHER

main85381-28220×2iURJ20#201201-201509

MARK +1

main85381-28230×2iURJ201,VDJ201201509

MARK +3

main85381-28240×2iURJ20#201201-201509

MARK -1

8504REAR WASHER

→ Go to FIG 85-04

85301INLET SUB-ASSY, WASHER

main85301-60060iURJ201200711-201201

main85301-60061iURJ20#201406-201509

main85301-60062iURJ201,VDJ201201709-202107

main85301-60063iURJ201,VDJ201202108

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-47010iURJ20#201201-201509

main85330-60190iURJ201200711-201104

85317WIRING ASSY, WASHER

main85317-60410supersedes 85317-60350iURJ20#..ARL,CHI; URJ201..GCC201201-201509

HEADLAMP CLEANER-WITH

main85317-60450supersedes 85317-60350iURJ201,VDJ201..ARL,CHI; URJ201,VDJ201..GCC201509

HEADLAMP CLEANER-WITH

main85317-60360supersedes 85317-60350iURJ201200711-201201

HEADLAMP CLEANER-WITH

85319DPACKING, FRONT WASHER

main85319-33230iURJ201200711-201201

85330JAR ASSY, WINDSHIELD WASHER

main85315-60350iURJ201..GCC201201-201509

main85355-60210iURJ20#..ARL,CHI; URJ201..GCC201201-201406

HEADLAMP CLEANER-WITH

main85355-60211iURJ20#..ARL,CHI; URJ201..GCC201406-201509

HEADLAMP CLEANER-WITH

main85355-60220supersedes 85315-60350iURJ201,VDJ201..ARL,CHI; URJ201,VDJ201..GCC201509

HEADLAMP CLEANER-WITH

main85355-60180supersedes 85315-60350iURJ201200711-201201

HEADLAMP CLEANER-WITH

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300iURJ201200711-201201

85332CAP, WINDSHIELD WASHER JAR

main85386-60060iURJ201200711-201201

main85386-60061iURJ20#201406-201509

main85386-60062iURJ201,VDJ201202108

MARK=E13:REF.ILLUST

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160iURJ201200711-201201

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iURJ201200711-201201

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-20200iURJ201200711-201201

85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3

main85355-20200iURJ201200711-201201

85349CJOINT, WINDSHIELD WASHER ELBOW, NO.4

main85355-20200iURJ201200711-201201

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iURJ201200711-201201

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iURJ20#; URJ201..GCC201201-201509

L=1450(*H,L=330); L=1450(*H,L=330),HEADLAMP CLEANER-WITH

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iURJ201200711-201201

L=1450(*H,L=240)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iURJ201200711-201201

L=1450(*H,L=110)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080iURJ201200711-201201

L=1450(*H,L=65)

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90099-33080iURJ201200711-201201

L=1450(*H,L=760)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2iURJ201200711-201201

L=1450(*H,L=310)

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-52090iURJ201200711-201201

85397SWITCH ASSY,LEVEL WARNING

main85397-30400iURJ201200711-201201

827112C060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2C060

9011906767

main90119-06767

9046707217

main90467-07217
