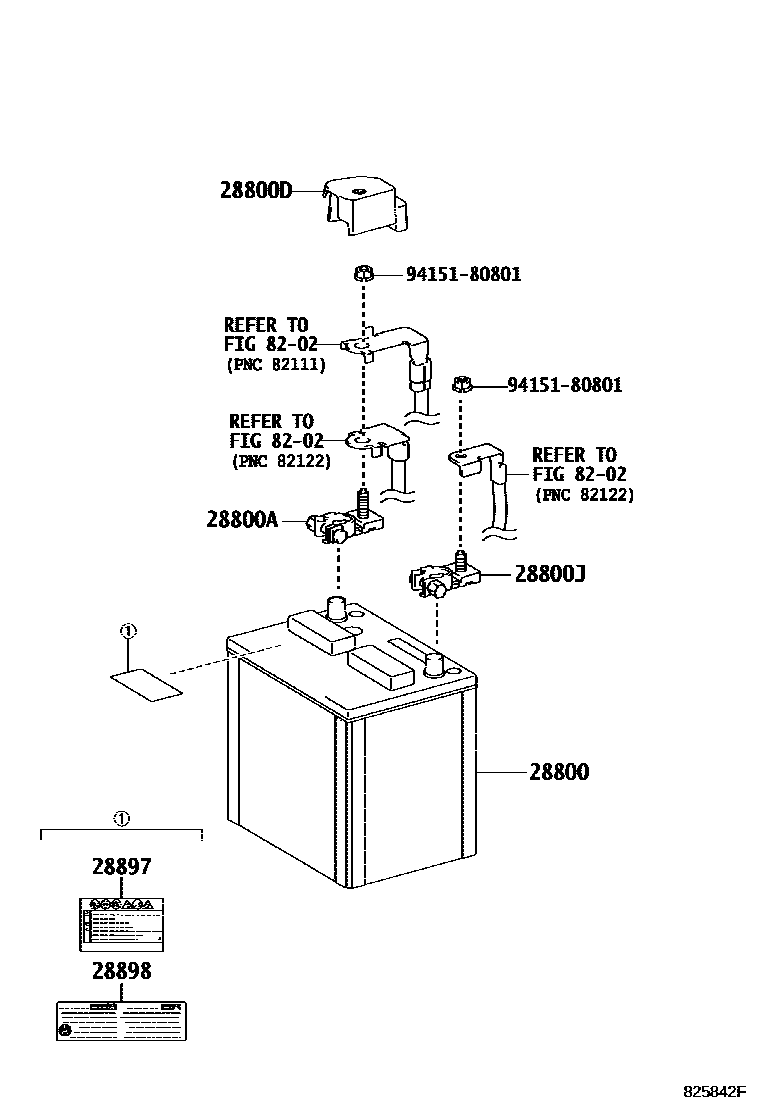

BATTERY & BATTERY CABLE

28800BATTERY

115D31L

main28800-38080i201509-201608

80D26L,MAIN

main28800-38100i201509-201608

80D26R,SUB

105D31L,FURUKAWA

main28800-64251i200711-201101

105D31L

main28800-64905i201509-201808

105D31L,FURUKAWA

main28800-66013i201205-201509

105D31L,GS YUASA

28800ATERMINAL, BATTERY POSITIVE

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-60200i200711-201201

28800JTERMINAL, BATTERY NEGATIVE

28897PLATE, BATTERY CAUTION

main28897-38060i201802-202006

main28897-50030i201201-201509

28898PLATE, BATTERY

GCC SPEC(UAE,BAHRAIN); KUWAIT SPEC; LEBANON SPEC; QATAR, OMAN, BAHRAIN SPEC; SAUDI ARABIA SPEC; YEMEN SPEC

8202WIRING & CLAMP

9415180801

8 parts on this diagram · 2 diagrams in section
