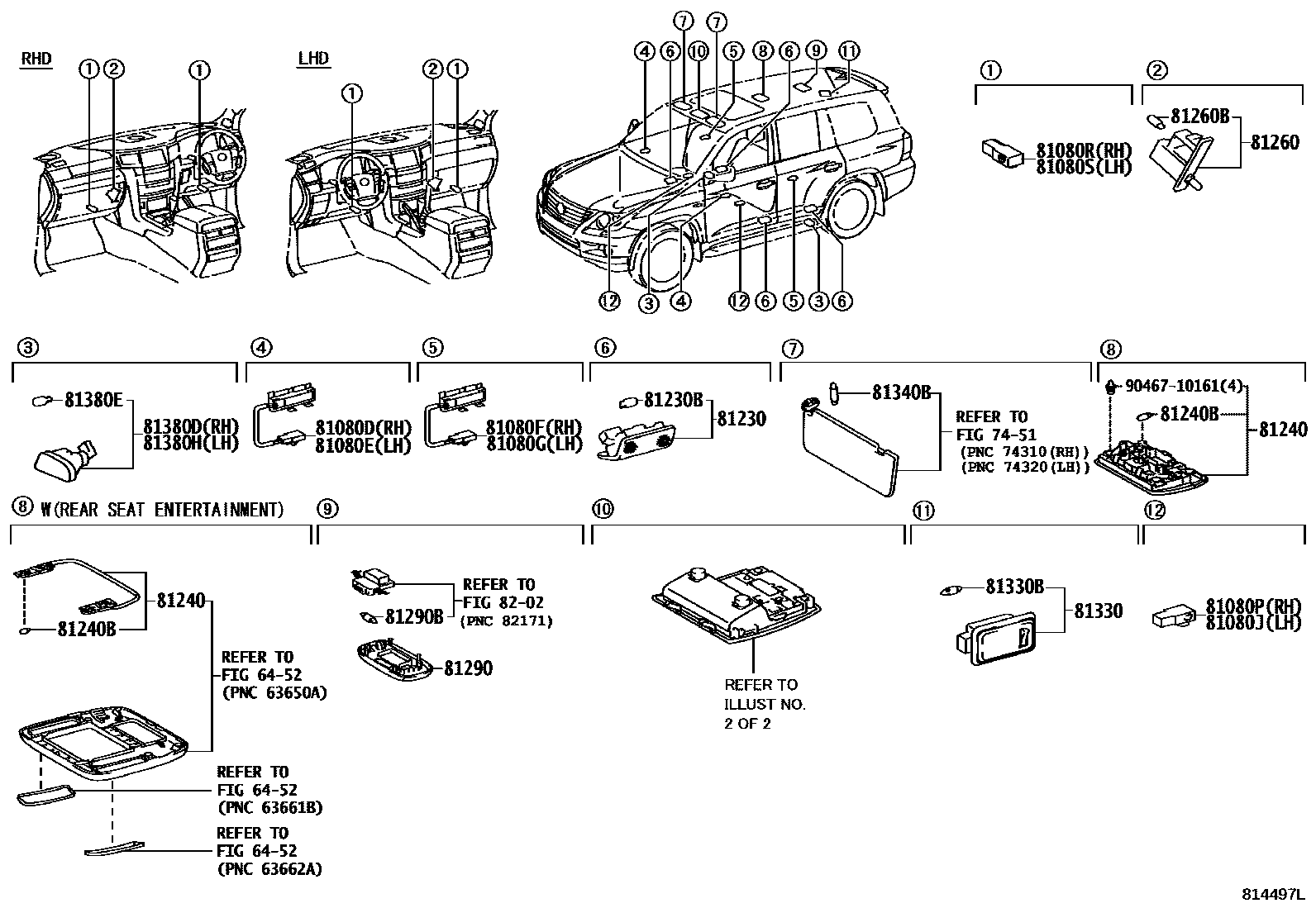

INTERIOR LAMP
6452ROOF HEADLINING & SILENCER PAD
7451ARMREST & VISOR
81080DLAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH
81080ELAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH
81080FLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH
81080GLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH
81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080PLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080RLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81230LAMP ASSY, COURTESY
DOOR COURTESY LAMP-FOR ACCESSORY
DOOR COURTESY LAMP-WITHOUT
DOOR COURTESY LAMP-WITH(LED & LOGO)
DOOR COURTESY LAMP-FOR ACCESSORY(S-PACKAGE, FR & RR)
81230BBULB(FOR COURTESY LAMP)
12V 5W; 12V 5W,DOOR COURTESY LAMP-WITHOUT
81240LAMP ASSY, ROOM, NO.1
IVORY,TRIM0#
IVORY,TRIM0#
LT.GRAY,TRIM1#,2#
IVORY,TRIM0#; IVORY,TRIM0#,4#
LT.GRAY,TRIM2#
IVORY,TRIM0#,42,5#; IVORY,TRIM0#,5#
LT.GRAY,TRIM2#,43; LT.GRAY,TRIM21; LT.GRAY,TRIM21,22,43
BLACK,TRIM24; BLACK,TRIM24,3#,41
IVORY,TRIM02
LT.GRAY,TRIM05,21,32,45,51
BLACK,TRIM02,06,21,24,31,33,44
REAR SEAT ENTERTAINMENT-WITH,IVORY,TRIM0#
REAR SEAT ENTERTAINMENT-WITH,LT.GRAY,TRIM1#
81240BBULB, ROOM LAMP, NO.1
12V 8W
81260LAMP ASSY, GLOVE BOX
81260BBULB(FOR GLOVE BOX)
12V 1.2W W/O SOCKET
81290LAMP ASSY, ROOM, NO.3
IVORY,TRIM0#
IVORY,TRIM0#,42,5#; IVORY,TRIM0#,5#
LT.GRAY,TRIM2#; LT.GRAY,TRIM2#,43
BLACK,TRIM24; BLACK,TRIM24,3#,41
IVORY,TRIM02
LT.GRAY,TRIM21,32,45
BLACK,TRIM02,06,21,24,31,33,44,52; BLACK,TRIM02,06,21,24,31,44,52
81290BBULB, ROOM LAMP, NO.3
12V 8W
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 5W
81340BBULB (FOR VANITY LAMP)
12V 2W
81380EBULB (FOR STEP LAMP)
8202WIRING & CLAMP
9046710161
main90467-10161
26 parts on this diagram · 4 diagrams in section
