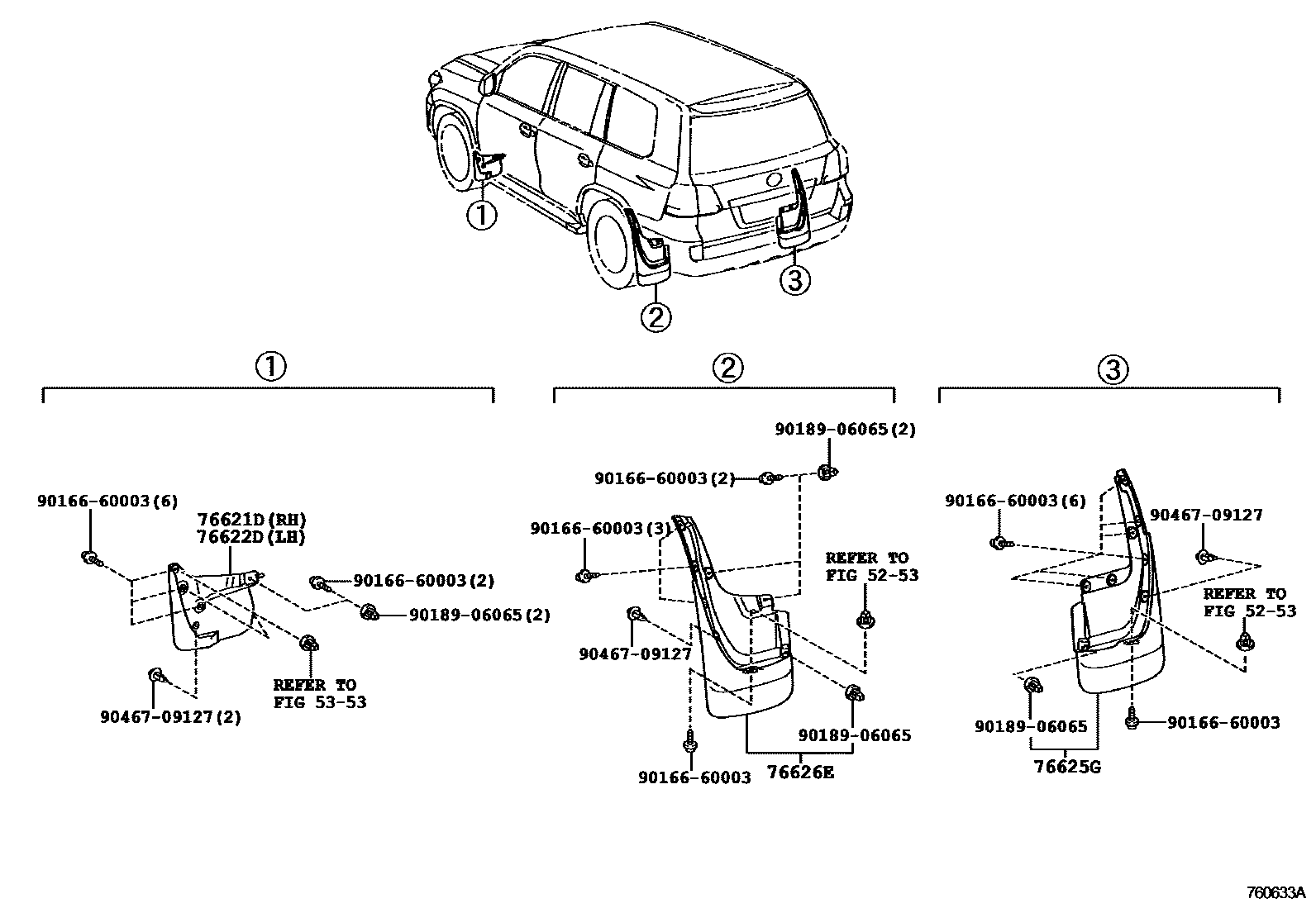

SPOILER & SIDE MUDGUARD

0001 1MUD GUARD 0002 1MUD GUARD 0003 1REAR SPOILER 0004 1REAR SPOILER

5253REAR BUMPER & BUMPER STAY

→ Go to FIG 52-53

5353HOOD & FRONT FENDER

→ Go to FIG 53-53

76621DMUDGUARD, FRONT FENDER, RH

main76621-60160iURJ201200711-201201

main76621-60190iURJ201,VDJ201201509

76622DMUDGUARD, FRONT FENDER, LH

main76622-60130iURJ20#201201-201509

main76622-60160iURJ201,VDJ201201509

76625GMUDGUARD, QUARTER PANEL, REAR RH

main76625-60200iURJ20#201201-201509

main76625-60240iURJ201200711-201201

main76625-60360iURJ201,VDJ201201509

76626EMUDGUARD, QUARTER PANEL, REAR LH

main76626-60200iURJ20#201201-201509

main76626-60240iURJ201200711-201201

main76626-60360iURJ201,VDJ201201509

9016660003

main90166-60003

9018906065

main90189-06065

9046709127

main90467-09127

9 parts on this diagram · 4 diagrams in section
