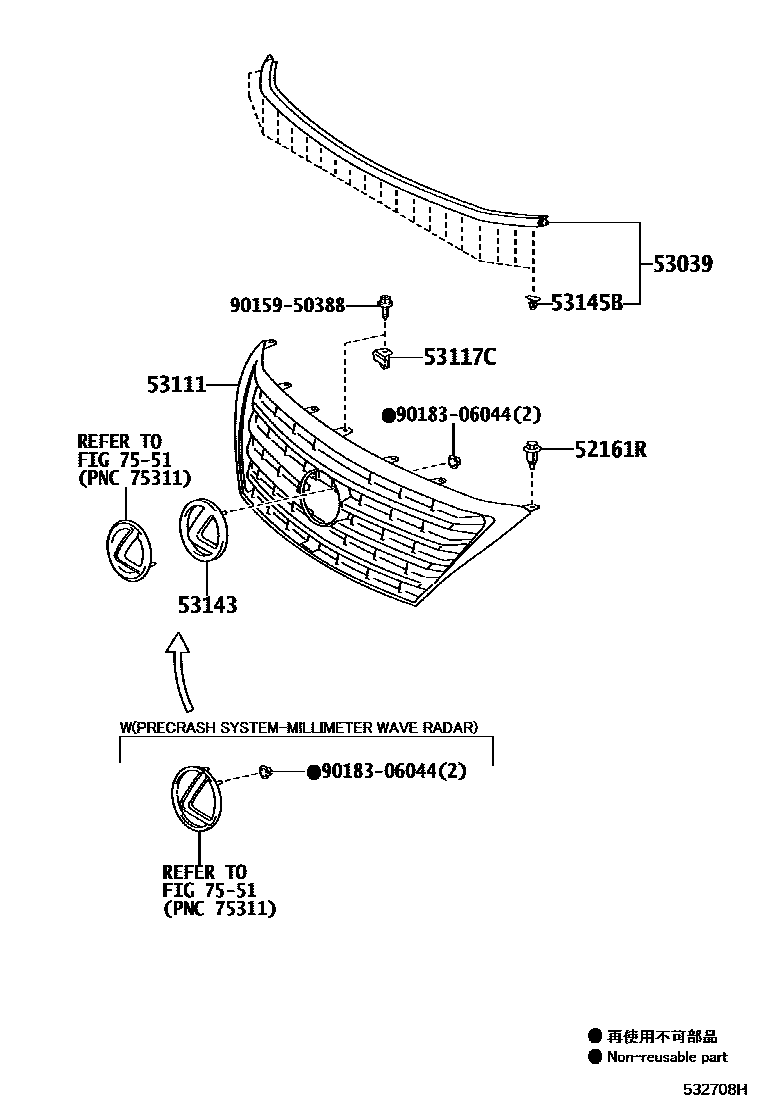

RADIATOR GRILLE

52161RPIECE, FRONT BUMPER

main52161-16010×2i201201-201509

53039SEAL, RADIATOR, UPPER

main53039-60021i200711-201201

main53039-60030i201201-201509

main53039-60050i201509

53111GRILLE, RADIATOR

main53101-60903i200711-201008

PLATED

main53101-60911i201008-201201

PLATED

main53101-60904i200907-201008

PLATED,EGYPT SPEC&BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE); PLATED,GCC SPEC(EXCEPT SAUDI ARABIA)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&BACKMONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE); PLATED,SAUDI ARABIA SPEC&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE); PLATED,SYRIA OR LEBANON OR JORDAN SPEC&BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE)

main53101-60912i201008-201201

PLATED,BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE); PLATED,GCC SPEC(EXCEPT SAUDI ARABIA)&BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE); PLATED,GCC SPEC(EXCEPT SAUDI ARABIA)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&BACKMONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE); PLATED,PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR&BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE); PLATED,SAUDI ARABIA SPEC&BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE); PLATED,SAUDI ARABIA SPEC&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE); PLATED,SYRIA OR LEBANON OR JORDAN SPEC&BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE)

53117CRETAINER, RADIATOR GRILLE, NO.1

main53117-60060i200711-201201

53143GARNISH, RADIATOR GRILLE, NO.3

main53142-60010i200711-201009

main53142-60011i201009-201201

main53142-60030i201201-201509

53145BCLIP, RADIATOR GRILLE GARNISH

main53145-60030×19i200711-201201

7551EMBLEM & NAME PLATE

→ Go to FIG 75-51

9015950388

main90159-50388

9018306044

main90183-06044

9 parts on this diagram · 3 diagrams in section
