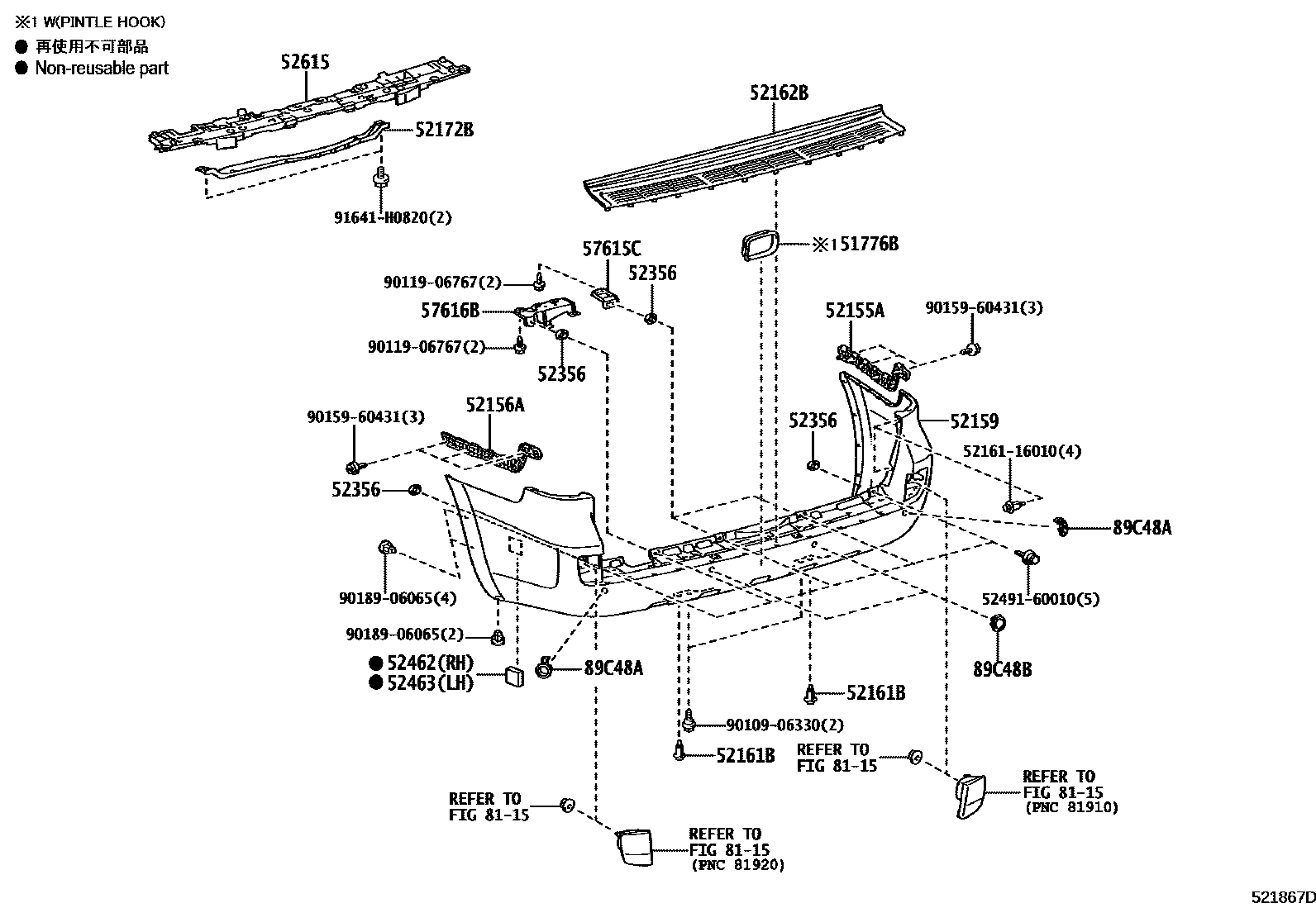

REAR BUMPER & BUMPER STAY
51776BCOVER, REAR STEP, NO.2
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.; PAINT REQ.,TOWING HITCH-FOR WEIGHT DISTRIBUTION HITCH&REAR BUMPER-WITH(TOWING HITCH); PAINT REQ.,TOWING HITCH-FOR WEIGHT DISTRIBUTION HITCH&REAR BUMPER-WITH(TOWING HITCH) & WITHOUT(REAR STEP); PAINT REQ.,TOWING HITCH-WITH(PINTLE HOOK)&REAR BUMPER-WITH(PINTLE HOOK); PAINT REQ.,TOWING HITCH-WITH(PINTLE HOOK)&REAR BUMPER-WITH(PINTLE HOOK) & WITHOUT(REAR STEP)
PAINT REQ.,CLEARANCE & BACK SONAR-WITH
PAINT REQ.,TOWING HITCH-WITH(PINTLE HOOK)&REAR BUMPER-WITH(PINTLE HOOK); PAINT REQ.,TOWING HITCH-WITH(PINTLE HOOK)&REAR BUMPER-WITH(PINTLE HOOK) & WITHOUT(REAR STEP)
PAINT REQ.,TOWING HITCH-WITH(PINTLE HOOK)&REAR BUMPER-WITH(PINTLE HOOK) & WITHOUT(REAR STEP)&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,TOWING HITCH-WITH(PINTLE HOOK)&REAR BUMPER-WITH(PINTLE HOOK)&CLEARANCE& BACK SONAR-WITH
PAINT REQ.,TOWING HITCH-FOR WEIGHT DISTRIBUTION HITCH&REAR BUMPER-WITH(TOWING HITCH); PAINT REQ.,TOWING HITCH-FOR WEIGHT DISTRIBUTION HITCH&REAR BUMPER-WITH(TOWING HITCH) & WITHOUT(REAR STEP)
52161BPIECE, REAR BUMPER
52162BPLATE, REAR BUMPER, NO.1
52172BREINFORCEMENT, REAR BUMPER, NO.2
52356CUSHION, REAR BUMPER STEP
52462PAD, REAR BUMPER, RH
52463PAD, REAR BUMPER, LH
52615ABSORBER, REAR BUMPER ENERGY
57615CBRACKET, REAR BUMPER ARM
57616BBRACKET, REAR BUMPER ARM
8115REFLEX REFLECTOR
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
WHITE PEARL CS.,077
PREMIUM SILVER,1F2
GRAY M.M.,1G8
BACK MONITOR-WITH,BLACK,202; BLACK,202
BACK MONITOR-WITH,STARLIGHT BLACK GF.,217; GCC SPEC(EXCEPT SAUDI ARABIA)&BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE),STARLIGHT BLACK GF.,217; SAUDI ARABIA SPEC&BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE),STARLIGHT BLACK GF.,217; SAUDI ARABIA SPEC&BACK MONITOR-GUIDE,STARLIGHT BLACK GF.,217; STARLIGHT BLACK GF.,217; SYRIA OR LEBANON OR JORDAN SPEC&BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE),STARLIGHT BLACK GF.,217; SYRIA OR LEBANON OR JORDAN SPEC&BACK MONITOR-GUIDE,STARLIGHT BLACK GF.,217
DK.RED MC.CS.,3R7
BEIGE ME.,4T1
BLUE M.M.,8U4; CLEARANCE & BACK SONAR-WITH,BLUE M.M.,8U4
WHITE PEARL CS.,077
PREMIUM SILVER,1F2
BLACK,202
STARLIGHT BLACK GF.,217
DK.RED MC.CS.,3R7
GARNET RED MC.,3S0
SLEEK ECRU ME.,4U7
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
WHITE PEARL CS.,077
PREMIUM SILVER,1F2
GRAY M.M.,1G8
BACK MONITOR-WITH,BLACK,202; BLACK,202
BACK MONITOR-WITH,STARLIGHT BLACK GF.,217; GCC SPEC(EXCEPT SAUDI ARABIA)&BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE),STARLIGHT BLACK GF.,217; SAUDI ARABIA SPEC&BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE),STARLIGHT BLACK GF.,217; SAUDI ARABIA SPEC&BACK MONITOR-GUIDE,STARLIGHT BLACK GF.,217; STARLIGHT BLACK GF.,217; SYRIA OR LEBANON OR JORDAN SPEC&BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE),STARLIGHT BLACK GF.,217; SYRIA OR LEBANON OR JORDAN SPEC&BACK MONITOR-GUIDE,STARLIGHT BLACK GF.,217
DK.RED MC.CS.,3R7
BEIGE ME.,4T1
BLUE M.M.,8U4; CLEARANCE & BACK SONAR-WITH,BLUE M.M.,8U4
WHITE PEARL CS.,077
BLACK,202
STARLIGHT BLACK GF.,217
GARNET RED MC.,3S0
DK.RED MC.CS.,3R7
SLEEK ECRU ME.,4U7
PREMIUM SILVER,1F2
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
5216116010CUSHION, REAR BUMPER GUARD, NO.1
main52161-16010
5249160010BOLT, BUMPER PAD
main52491-60010
9010906330
main90109-06330
9011906767
main90119-06767
9015960431
main90159-60431
9018906065
main90189-06065
91641H0820
main91641-H0820
23 parts on this diagram · 5 diagrams in section
