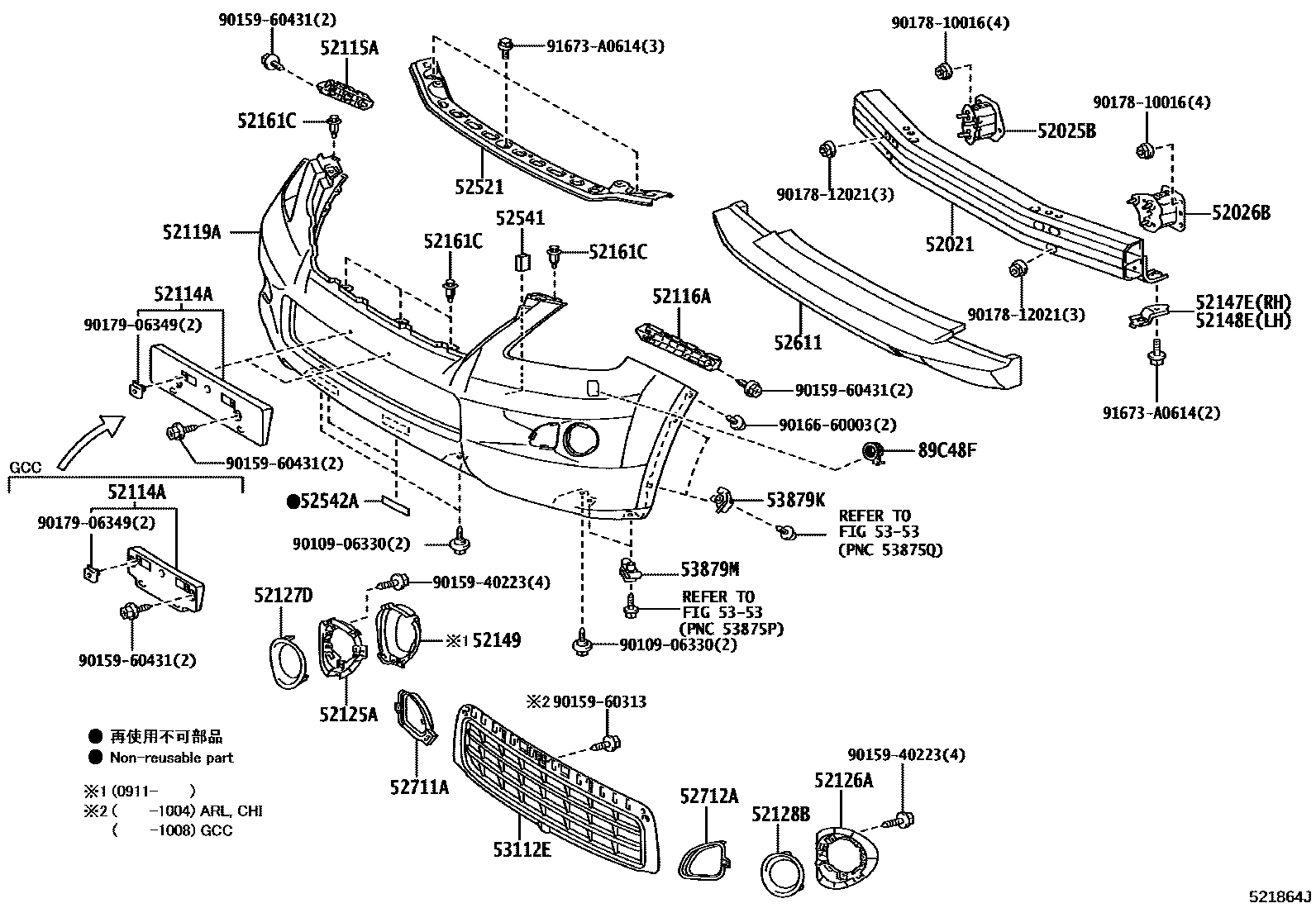

FRONT BUMPER & BUMPER STAY
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52025BEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 RH
52026BEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 LH
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
COLOMBIA SPEC,TYPE A:REFER ILLUST.; PERU SPEC,TYPE A:REFER ILLUST.; SOUTH AMERICA SPEC,TYPE A:REFER ILLUST.; TYPE A:REFER ILLUST.
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
PAINT REQ.; PAINT REQ.,COLOMBIA SPEC&HEADLAMP CLEANER-WITH; PAINT REQ.,PERU SPEC&HEADLAMP CLEANER-WITH; PAINT REQ.,SOUTH AMERICA SPEC&HEADLAMP CLEANER-WITH
PAINT REQ.,HEADLAMP CLEANER-WITH; PAINT REQ.,HEADLAMP CLEANER-WITH&CORNERING LAMP-WITH
PAINT REQ.,HEADLAMP CLEANER-WITH
PAINT REQ.,HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH
PAINT REQ.,HEADLAMP CLEANER-WITH
PAINT REQ.,CLEARANCE & BACK SONAR-WITH
PAINT REQ.,SPORTS PACKAGE S/C&HEADLAMP CLEANER-WITH; PAINT REQ.,SPORTS PACKAGE&HEADLAMP CLEANER-WITH
PAINT REQ.,COLOMBIA SPEC&SPORTS PACKAGE; PAINT REQ.,COLOMBIA SPEC&SPORTS PACKAGE S/C; PAINT REQ.,PERU SPEC&SPORTS PACKAGE; PAINT REQ.,PERU SPEC&SPORTS PACKAGE S/C; PAINT REQ.,SOUTH AMERICA SPEC&SPORTS PACKAGE; PAINT REQ.,SOUTH AMERICA SPEC&SPORTS PACKAGE S/C; PAINT REQ.,VIETNAM SPEC; PAINT REQ.,VIETNAM SPEC&SPORTS PACKAGE; PAINT REQ.,VIETNAM SPEC&SPORTS PACKAGE S/C
PAINT REQ.; PAINT REQ.,CORNERING LAMP-WITH
52125ABRACKET, FOG LAMP MOUNTING, RH
52126ABRACKET, FOG LAMP MOUNTING, LH
52127DCOVER, FRONT BUMPER HOLE, RH
52128BCOVER, FRONT BUMPER HOLE, LH
52147EBRACKET, FRONT BUMPER MOUNTING, RH
52148EBRACKET, FRONT BUMPER MOUNTING, LH
52149BRACKET, FRONT BUMPER, INNER
52161CPIECE, FRONT BUMPER
52521RETAINER, FRONT BUMPER, UPPER CENTER
52541PROTECTOR, FRONT BUMPER
52542APROTECTOR, FRONT BUMPER, NO.2
52611ABSORBER, FRONT BUMPER ENERGY
52712AGARNISH, FRONT BUMPER, LH
53112EGRILLE, RADIATOR, LOWER NO.1
NO PAINT REQ.
NO PAINT REQ.
5353HOOD & FRONT FENDER
53879KRETAINER, FRONT FENDER LINER
53879MRETAINER, FRONT FENDER LINER
89C48FRETAINER, ULTRASONIC SENSOR, FRONT SIDE
WHITE PEARL CS.,077
PREMIUM SILVER,1F2
GRAY M.M.,1G8
BACK MONITOR-WITH,BLACK,202; BLACK,202
BACK MONITOR-WITH,STARLIGHT BLACK GF.,217; GCC SPEC(EXCEPT SAUDI ARABIA)&BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE),STARLIGHT BLACK GF.,217; SAUDI ARABIA SPEC&BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE),STARLIGHT BLACK GF.,217; SAUDI ARABIA SPEC&BACK MONITOR-GUIDE,STARLIGHT BLACK GF.,217; STARLIGHT BLACK GF.,217; SYRIA OR LEBANON OR JORDAN SPEC&BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE),STARLIGHT BLACK GF.,217; SYRIA OR LEBANON OR JORDAN SPEC&BACK MONITOR-GUIDE,STARLIGHT BLACK GF.,217
DK.RED MC.CS.,3R7
BEIGE ME.,4T1
BLUE M.M.,8U4; CLEARANCE & BACK SONAR-WITH,BLUE M.M.,8U4
WHITE PEARL CS.,077
BLACK,202
STARLIGHT BLACK GF.,217
GARNET RED MC.,3S0
DK.RED MC.CS.,3R7
SLEEK ECRU ME.,4U7
PREMIUM SILVER,1F2
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
9010906330
main90109-06330
9015940223
main90159-40223
9015960313
main90159-60313
9015960431
main90159-60431
9016660003
main90166-60003
9017810016
main90178-10016
9017812021
main90178-12021
9017906349
main90179-06349
91673A0614
main91673-A0614
35 parts on this diagram · 3 diagrams in section
