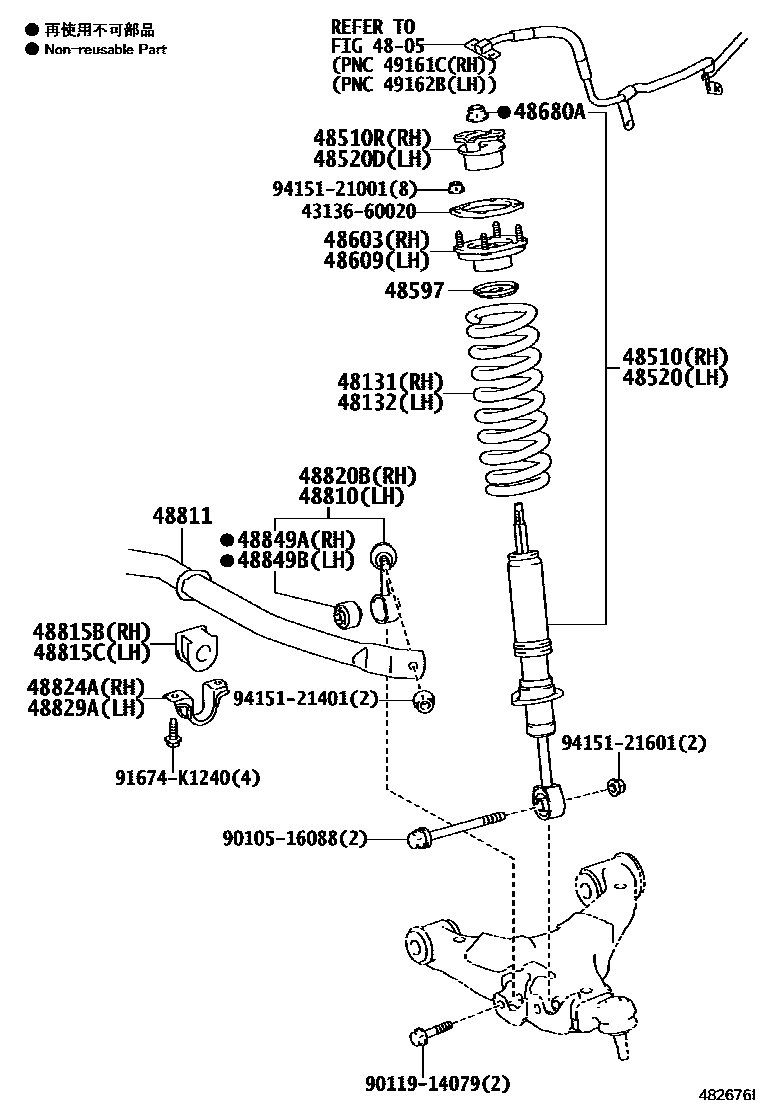

FRONT SPRING & SHOCK ABSORBER
4805HEIGHT CONTROL (AUTO-LEVELER)
48131SPRING, FRONT COIL, RH
INDIA SPEC
48132SPRING, FRONT COIL, LH
INDIA SPEC
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 60400 OR 60130,EGYPT SPEC
MARK 60410 OR 60240,EGYPT SPEC
MARK 60430 OR 60150,EGYPT SPEC
*732,EGYPT SPEC
48510RCUSHION, FRONT SHOCK ABSORBER, NO.1 RH
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 60400 OR 60130,EGYPT SPEC
MARK 60410 OR 60240,EGYPT SPEC
MARK 60430 OR 60150,EGYPT SPEC
*732,EGYPT SPEC
48520DCUSHION, FRONT SHOCK ABSORBER, NO.1 LH
48597RETAINER, SHOCK ABSORBER CUSHION
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48815BBUSH, FRONT STABILIZER LOWER BRACKET, RH
48815CBUSH, FRONT STABILIZER LOWER BRACKET, LH
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
48849ABUSH, FRONT STABILIZER LINK, RH
48849BBUSH, FRONT STABILIZER LINK, LH
4313660020SPACER, FRONT SPRING
main43136-60020
9010516088
main90105-16088
9011914079
main90119-14079
91674K1240
main91674-K1240
9415121001
main94151-21001
9415121401
main94151-21401
9415121601
main94151-21601
27 parts on this diagram · 1 diagram in section
