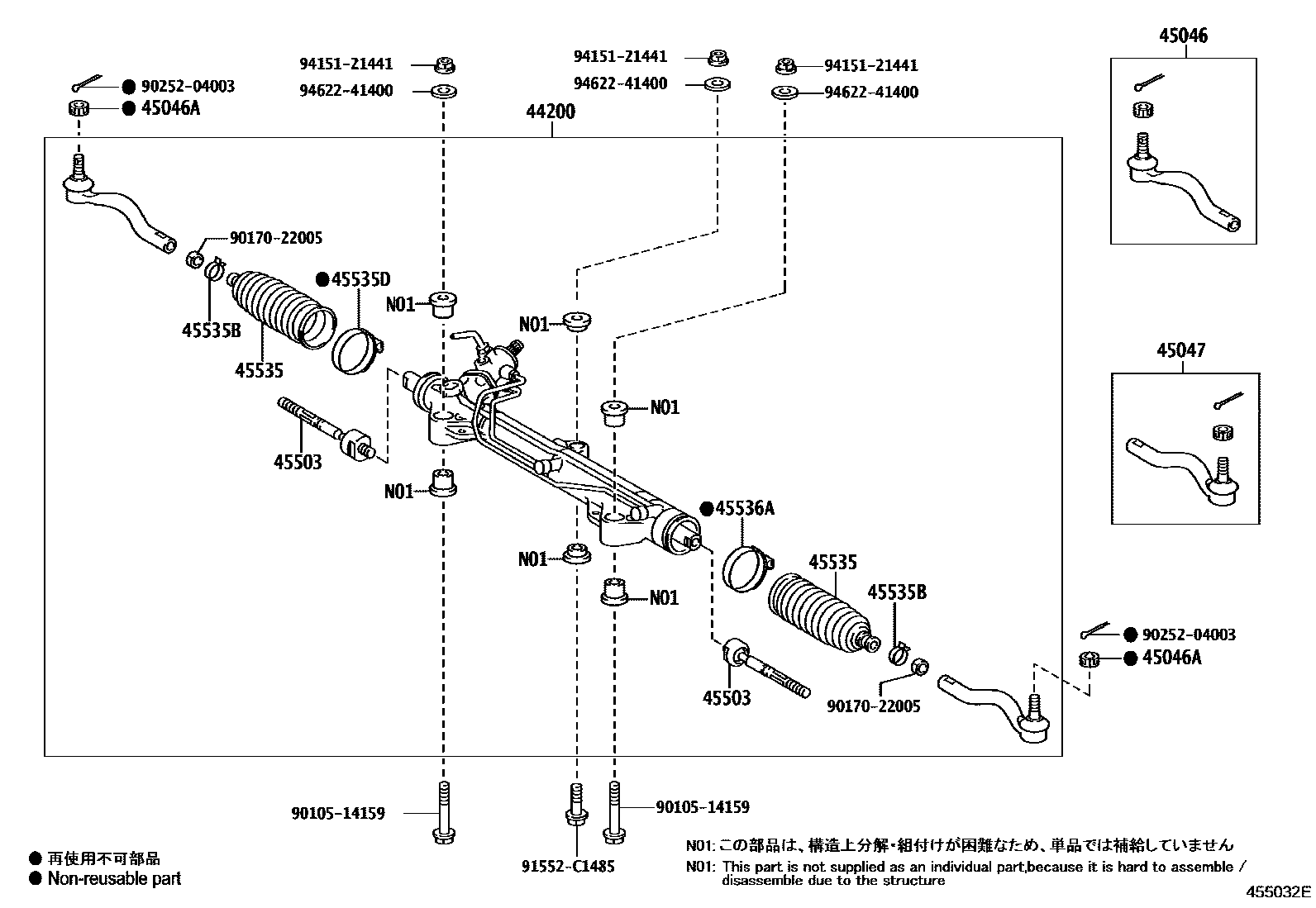

FRONT STEERING GEAR & LINK

0001 1 0002 1

44200LINK ASSY, POWER STEERING

main44200-60130iURJ201..ARL200711-201509

main44200-60170iURJ201..LHD200711-201509

45046END SUB-ASSY, TIE ROD, RH

main45046-69235iURJ20#200711-201211

sub45046-69236

main45046-69236iURJ20#201212-201509

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-16009iURJ201200711-201509

45047END SUB-ASSY, TIE ROD, LH

main45047-69145iURJ201200711-201211

sub45047-69146

main45047-69146iURJ201,VDJ201201212-201509

45503END SUB-ASSY, STEERING RACK

main45503-60030iURJ201200711-201509

sub45503-60050

45535BOOT, STEERING RACK, NO.1

main45535-60020iURJ201200711-201412

sub45535-60021

main45535-60021iURJ20#201501-201509

45535BCLIP(FOR STEERING RACK BOOT)

main96134-52600iURJ201200711-201509

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-76001iURJ201200711-201509

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-76001iURJ201200711-201509

9010514159

main90105-14159

9017022005

main90170-22005

9025204003

main90252-04003

91552C1485

main91552-C1485

9415121441

main94151-21441

9462241400

main94622-41400

15 parts on this diagram · 2 diagrams in section
