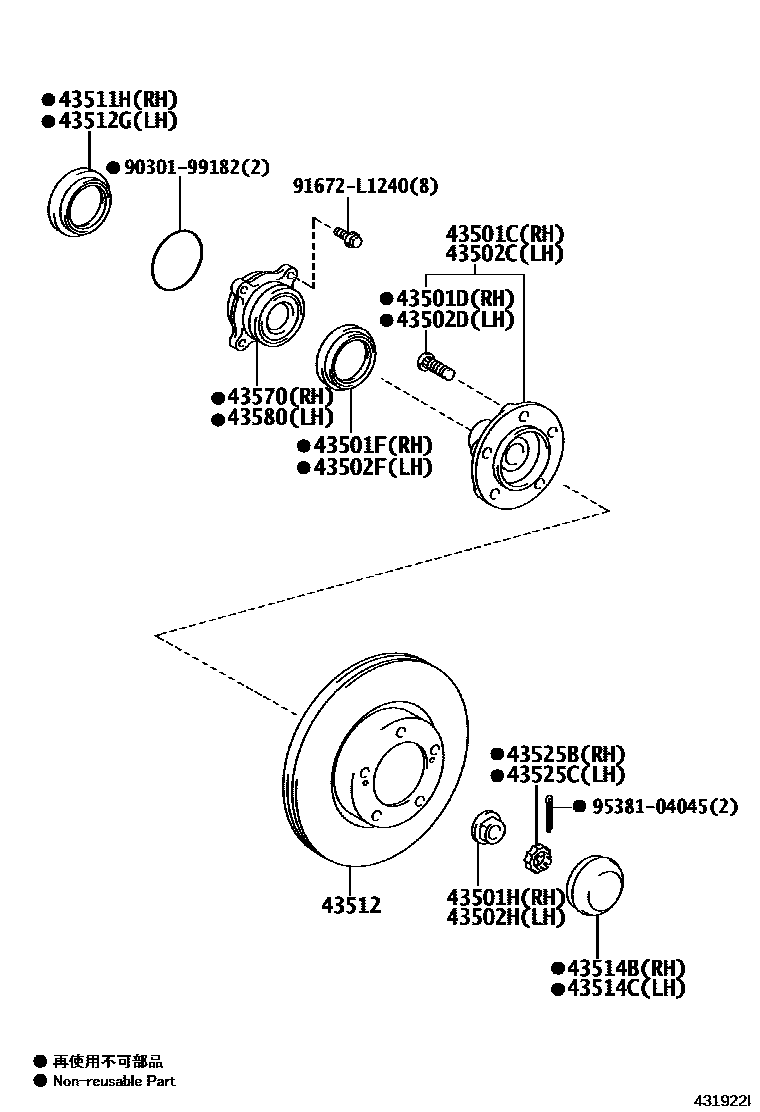

FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-60190iURJ201200711-201201

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02077×5iURJ201200711-200712

main90942-02083×5iURJ201200712-201201

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90312-87001iURJ201200711-201201

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90179-32007iURJ201200711-201201

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-60190iURJ201200711-201201

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02077×5iURJ201200711-200712

main90942-02083×5iURJ201200712-201201

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90312-87001iURJ201200711-201201

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90179-32007iURJ201200711-201201

43511HSEAL, OIL (FOR FRONT AXLE HUB INNER RH)

main90316-83001iURJ201200711-201201

43512DISC, FRONT

main43512-60180×2iURJ201200711-201201

main43512-60210×2iURJ201,VDJ201201509

43512GSEAL, OIL (FOR FRONT AXLE HUB INNER LH)

main90316-83001iURJ201200711-201201

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-34020iURJ201200711-201201

main43514-60020iURJ201,VDJ201201509

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-34020iURJ201200711-201201

main43514-60020iURJ201,VDJ201201509

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-60010iURJ201200711-201201

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-60010iURJ201200711-201201

43570BEARING ASSY, FRONT AXLE W/ABS ROTOR RH

main43570-60030iURJ201200711-201010

main43570-60031iURJ201201011-201201

43580BEARING ASSY, FRONT AXLE W/ABS ROTOR LH

main43570-60030iURJ201200711-201010

main43570-60031iURJ201201011-201201

9030199182

main90301-99182

91672L1240

main91672-L1240

9538104045

main95381-04045

20 parts on this diagram · 1 diagram in section
