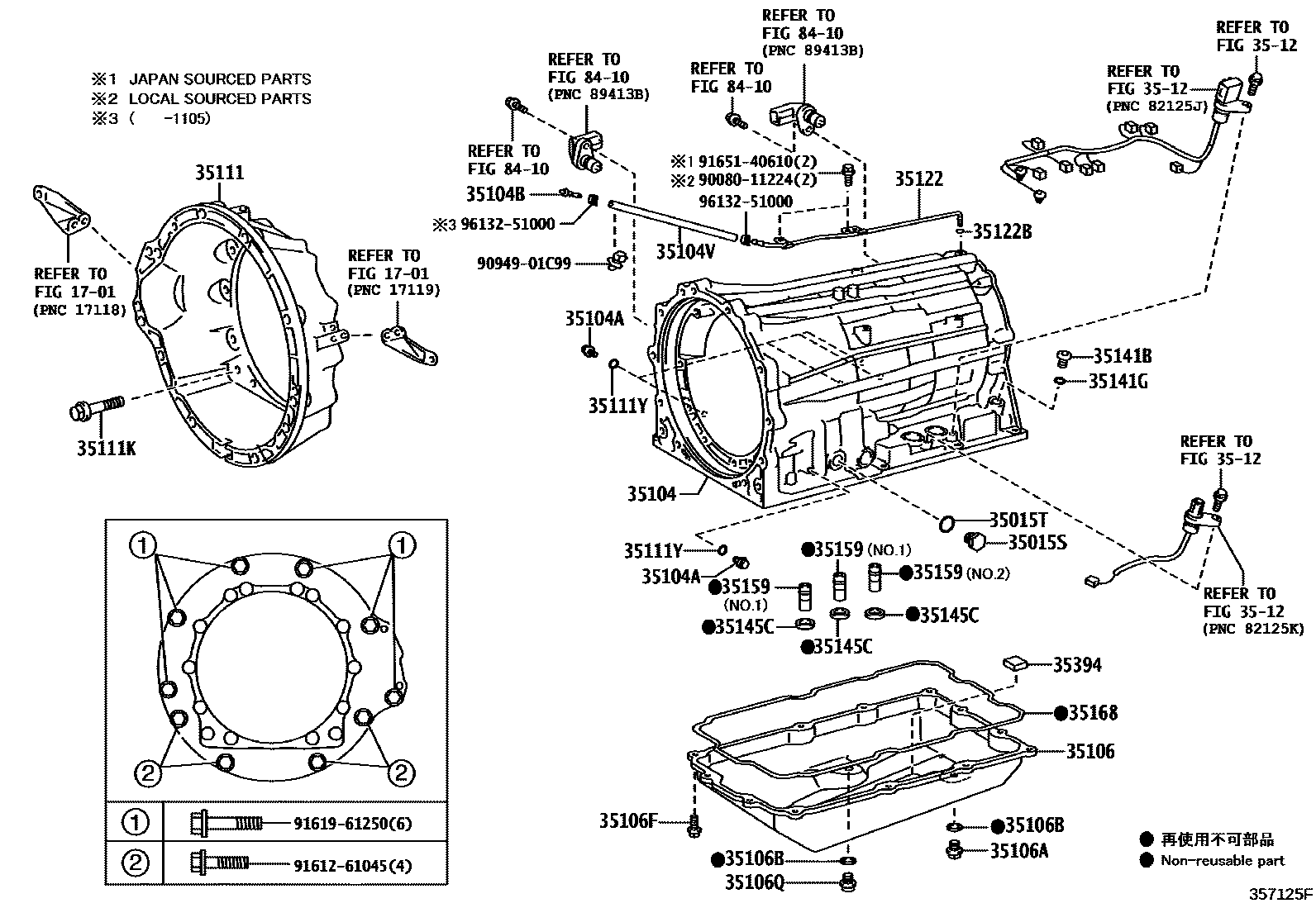

TRANSMISSION CASE & OIL PAN (ATM)

0001 1AB60F 0002 1AB60F 0003 1AB60F 0004 1AE80F

1701MANIFOLD

→ Go to FIG 17-01

35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)

main90341-18059iURJ201,VDJ201201509

35015TRING, O(FOR TRANSMISSION CASE ADAPTER)

main90301-15004iURJ20#201201-201509

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-0C030iURJ201..CHI200905-201201

(L)

main35104-60250iVDJ201201509

main35104-60260iURJ201201509

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×5iURJ201; URJ202201201-201509

(J)

main90341-14018×2iURJ201201509

main90341-A0001×5iURJ201..ARL,GCC200811-201201

(L)

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03188iVDJ201201509

main90930-03211iURJ201201105-201201

35104VHOSE (FOR BREATHER PLUG)

main35121-48030iURJ202201201-201509

main35121-60050iVDJ201201509

main90445-10020iURJ201201201-201509

main90447-11076iURJ201201509

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-0C030iURJ201..ARL,GCC200811-201201

(L)

main35106-60200iURJ201201509

main35106-60220iURJ201; URJ202201201-201509

(J)

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iURJ201200711-201201

main90341-10024iURJ201201509

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010×2iURJ201200711-201201

main35178-60010iURJ201201509

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06A02×12iURJ20#201402-201509

main90119-A0401×12iURJ201201307-201402

(L)

main91611-B0625×12iURJ201200711-201201

35106QPLUG (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90341-10021iURJ201200711-201201

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-0C050iURJ201201201-201509

(L)

main35111-60190iURJ201201201-201509

(J)

main35111-60200iVDJ201201509

main35111-60220iURJ202201201-201509

main35111-60230iURJ201201509

35111KBOLT (FOR TRANSMISSION HOUSING & CASE SETTING)

main90105-08479×2iURJ201201509

*8-1.25PX35-30,NO.1

main90105-08482×16iURJ201201509

*8-1.25PX30-27.5,NO.2

main90119-10232×14iURJ201..ARL,GCC; URJ201..CHI200711-201201

*10-1.5PX35-30; *10-1.5PX35-30,(J)

main90119-A0272×14iURJ201201201-201509

*10-1.5PX35-29.3,(L)

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×5iURJ201200711-201201

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

35122TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE)

main35122-60090iURJ201200711-201201

main35122-60120iVDJ201201509

35122BRING, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION)

main90301-04014iURJ201200711-201201

35141BPLUG (FOR AUTOMATIC TRANSMISSION CASE)

main90341-14011iURJ201200711-201201

main90341-24017iURJ201201509

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-11030iURJ201200711-201201

main90301-20013iURJ201201509

35145CGASKET, TRANSAXLE CASE

main35145-60020×3iURJ201200711-201201

35159GASKET, BRAKE DRUM

main35159-0C020iURJ201..CHI200905-201201

(L),NO.2

main35159-0C030×2iURJ201..CHI200905-201201

(L),NO.1

main35159-60020iURJ201; URJ202201201-201509

(J),NO.2; NO.2

main35159-60030×2iURJ201..CHI200905-201201

(J),NO.1

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-34010iURJ201200711-200905

main35168-34020iURJ20#201201-201509

main35168-60030iURJ201201509

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×4iURJ201,VDJ201201509

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9008011224

main90080-11224

9094901C99

main90949-01C99

9161261045

main91612-61045

9161961250

main91619-61250

9165140610

main91651-40610

9613251000

main96132-51000

31 parts on this diagram · 4 diagrams in section
