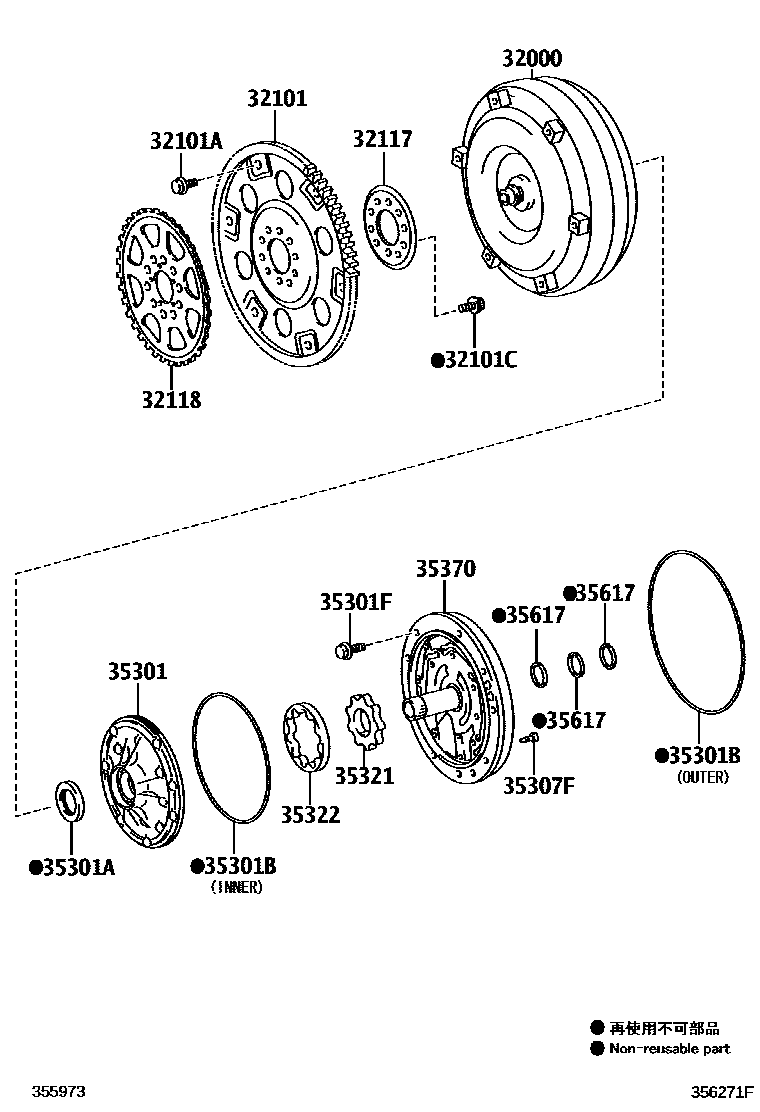

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
32000CONVERTER ASSY, TORQUE
(L)
(J)
32101GEAR SUB-ASSY, DRIVE PLATE & RING
(L)
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
*10-1.25PX16-12.9,BLACK
*10-1.25PX16-13,SILVER WHITE
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
*14-1.5PX42-30
*10-1.25PX23-16
*10-1.25PX23-16,(L)
32118ROTOR, CRANKSHAFT ANGLE SENSOR
35301BODY SUB-ASSY, FRONT OIL PUMP
35301BRING, O (FOR FRONT OIL PUMP BODY)
NO.2:REFER ILLUST.
INNER
OUTER
NO.1:REFER ILLUST.
35301FBOLT (FOR FRONT OIL PUMP SETTING)
*8-1.25PX45-35
*8-1.25PX60-30
*8-1.25PX45-35,(L)
35321GEAR, FRONT OIL PUMP DRIVE
T=11.66,MARK 0
T=11.66,MARK 1
T=11.66,MARK 2
T=11.66,MARK 3
T=11.66,MARK 4
T=11.66,MARK 5
T=11.66,MARK 6
T=12.589-12.599
T=12.600-12.609
T=12.610-12.620
T=12.621-12.630
T=12.631-12.640
35322GEAR, FRONT OIL PUMP DRIVEN
T=11.66,MARK 0
T=11.66,MARK 1
T=11.66,MARK 2
T=11.66,MARK 3
T=11.66,MARK 4
T=11.66,MARK 5
T=11.66,MARK 6
T=12.590-12.599
T-12.600-12.609
T=12.610-12.620
T=12.621-12.630
T=12.631-12.640
35370SHAFT ASSY, STATOR
35617RING, CLUTCH DRUM OIL SEAL
15 parts on this diagram · 3 diagrams in section
