ALTERNATOR

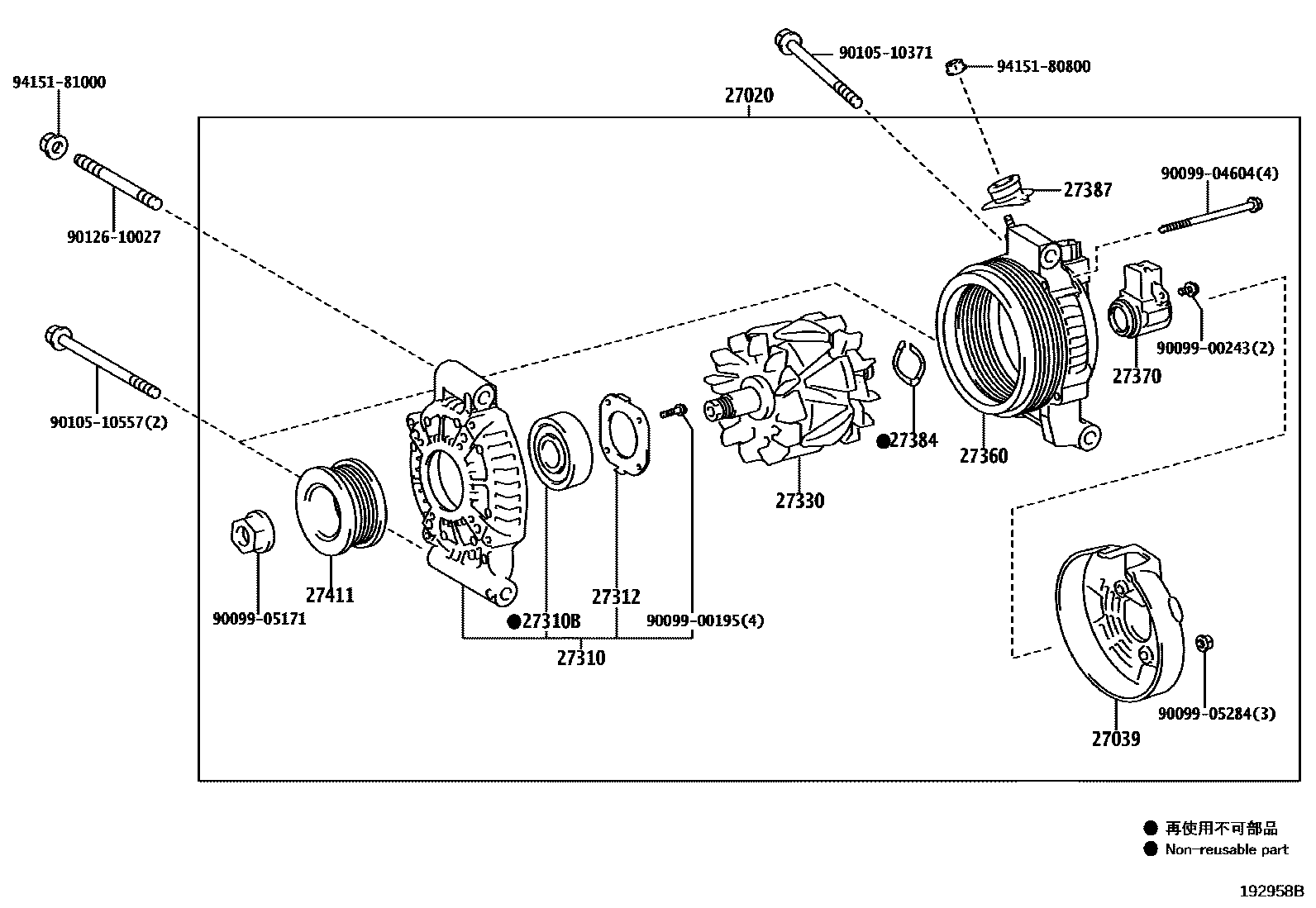

Parts diagram

27020ALTERNATOR ASSY

main27060-38050i200711-201201

12V 180A

main27060-38090i201201-201408

12V 150A

main27060-38110i201408-201509

12V 150A

main27060-38130i201509

12V 150A

main27060-51020i201509

12V 150A

27039COVER, ALTERNATOR REAR END

main27039-31390i201201-201509

main27039-38140i200711-201201

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-38140i200711-201201

main27310-38170i201509

main27310-51030i201509

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10223i201201-201509

main90099-10226i200711-201201

27312PLATE, RETAINER

main27312-42010i200711-201201

main27312-72100i201201-201509

27330ROTOR ASSY, ALTERNATOR

main27330-38130i200711-200805

main27330-38140i200805-201201

main27330-58460i201201-201509

27360COIL ASSY, ALTERNATOR

main27360-38140i200711-201201

main27360-38170i201201-201408

main27360-38180i201408-201509

main27360-38220i201509

main27360-51040i201509

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-27060i200711-201201

27384WASHER

main27384-38130i200711-201201

main27384-50030i201201-201509

27387INSULATOR, TERMINAL

main27387-20130i201201-201509

main27387-38130i200711-201201

27411PULLEY, ALTERNATOR

main27411-38090i201509

main27411-38140i200711-201201

main27411-38170i201201-201404

main27411-51030i201509

9009900195

main90099-00195

9009900243

main90099-00243

9009904604

main90099-04604

9009905171

main90099-05171

9009905284

main90099-05284

9010510371

main90105-10371

9010510557

main90105-10557

9012610027

main90126-10027

9415180800

main94151-80800

9415181000

main94151-81000

21 parts on this diagram · 3 diagrams in section
