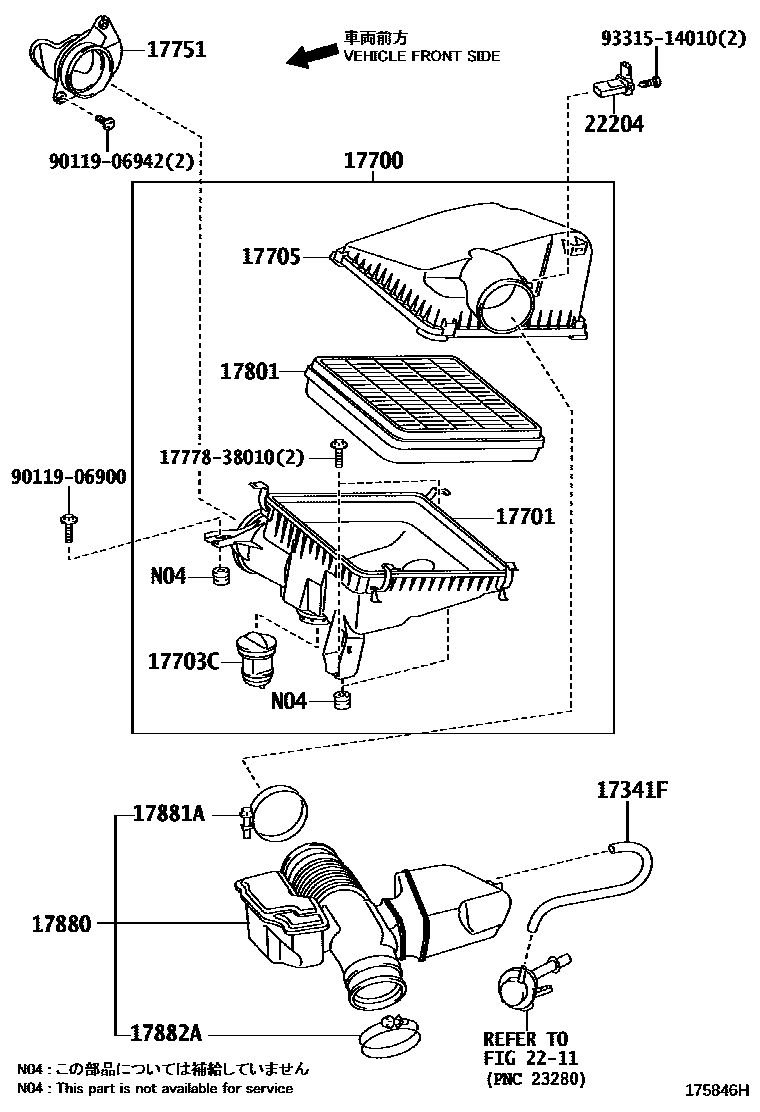

AIR CLEANER

0001 1 0003 1 0004 1 0005 1 0006 1AIR CLEANER 0007 1INTERCOOLER

17341FHOSE, AIR, NO.1

main17341-38090i3URFE..URJ201200905-201201

main17341-38131i1URFE..URJ202201201-201509

main17341-51020i1VDFTV..VDJ201201509

17700CLEANER ASSY, AIR

main17700-38170i3URFE..URJ201201201-201509

main17700-50350i1URFE..URJ202201201-201509

main17700-51050i1VDFTV..VDJ201201509

17701CASE SUB-ASSY, AIR CLEANER

main17701-51040i1URFE..URJ202201201-201508

main17701-51050i1VDFTV..VDJ201; 3URFE..URJ201201509

17703CCAP SUB-ASSY, DUST

main17703-38010i3URFE..URJ201200711-201201

17705CAP SUB-ASSY, AIR CLEANER

main17705-38090i3URFE..URJ201200711-201201

main17705-51030i1VDFTV..VDJ201201509

17751INLET, AIR CLEANER, NO.1

main17751-38050i3URFE..URJ201200711-201201

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-38030i3URFE..URJ201200711-201201

main17801-51020i1VDFTV..VDJ201201509

17880HOSE ASSY, AIR CLEANER

main17880-38050i3URFE..URJ201201201-201509

main17880-38120i1URFE..URJ202201201-201509

17881HOSE, AIR CLEANER, NO.1

main17881-51031i1VDFTV..VDJ201201509

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-11000×2i1VDFTV..VDJ201201509

main96111-11060i3URFE..URJ201200711-201201

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10950i3URFE..URJ201200711-201201

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-51010supersedes 22204-26010i1VDFTV..VDJ201..ARL; 1VDFTV..VDJ201..GCC201509

SOUTH AFRICA SPEC

main22204-75030i3URFE..URJ201201509

1777838010BOLT, AIR CLEANER SET

main17778-38010

9011906900

main90119-06900

9011906942

main90119-06942

9331514010

main93315-14010

17 parts on this diagram · 6 diagrams in section
