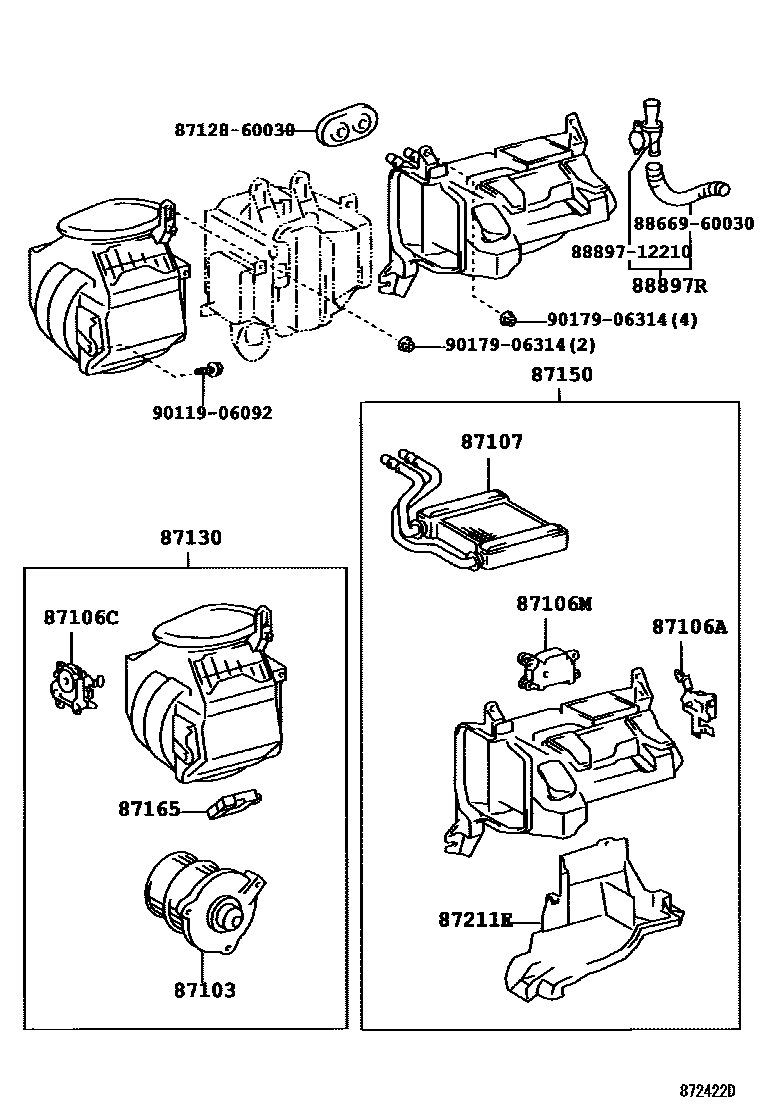

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER
87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87106ASERVO SUB-ASSY, DAMPER
87106CSERVO SUB-ASSY, DAMPER(FOR BLOWER)
87106MSERVO SUB-ASSY, DAMPER, NO.2
87107UNIT SUB-ASSY, HEATER RADIATOR
87130BLOWER ASSY, HEATER, FRONT
87150RADIATOR ASSY, HEATER
87165CONTROL, BLOWER MOTOR, NO.1
8712860030GROMMET, HEATER
main87128-60030
8866960030HOSE, COOLER AIR
main88669-60030
8889712210VALVE, COOLER MAGNET
main88897-12210
9011906092
main90119-06092
9017906314
main90179-06314
15 parts on this diagram · 3 diagrams in section
