ANTENNA

0001 1 0002 1 0003 1

85914RELAY, MOTOR ANTENNA CONTROL

main85914-60070iUZJ100..LHD199801-200505

main85914-60090iUZJ100..RHD199801-200505

86101CORD SUB-ASSY, ANTENNA

main86101-60040iUZJ100199801-199809

main86101-60041iUZJ100199809-200505

86300ANTENNA ASSY, W/HOLDER

main86300-60160iUZJ100..LHD199801-199809

main86300-60161iUZJ100..LHD199809-200505

main86300-60190iUZJ100..RHD199801-199809

main86300-60191iUZJ100..RHD199809-200505

86337ROD & PIPE, SEALED W/CABLE

main86337-60150iUZJ100..LHD199801-200301

sub86337-60151

main86337-60151iUZJ100..LHD200301-200505

main86337-60190iUZJ100..RHD199801-200505

86392ORNAMENT, ANTENNA

main86392-60140iUZJ100..RHD199801-200505

main86392-60150iUZJ100..LHD199801-200505

86396NUT, ANTENNA

main86396-89102iUZJ100199801-200505

9011906915

main90119-06915

9015960303

main90159-60303

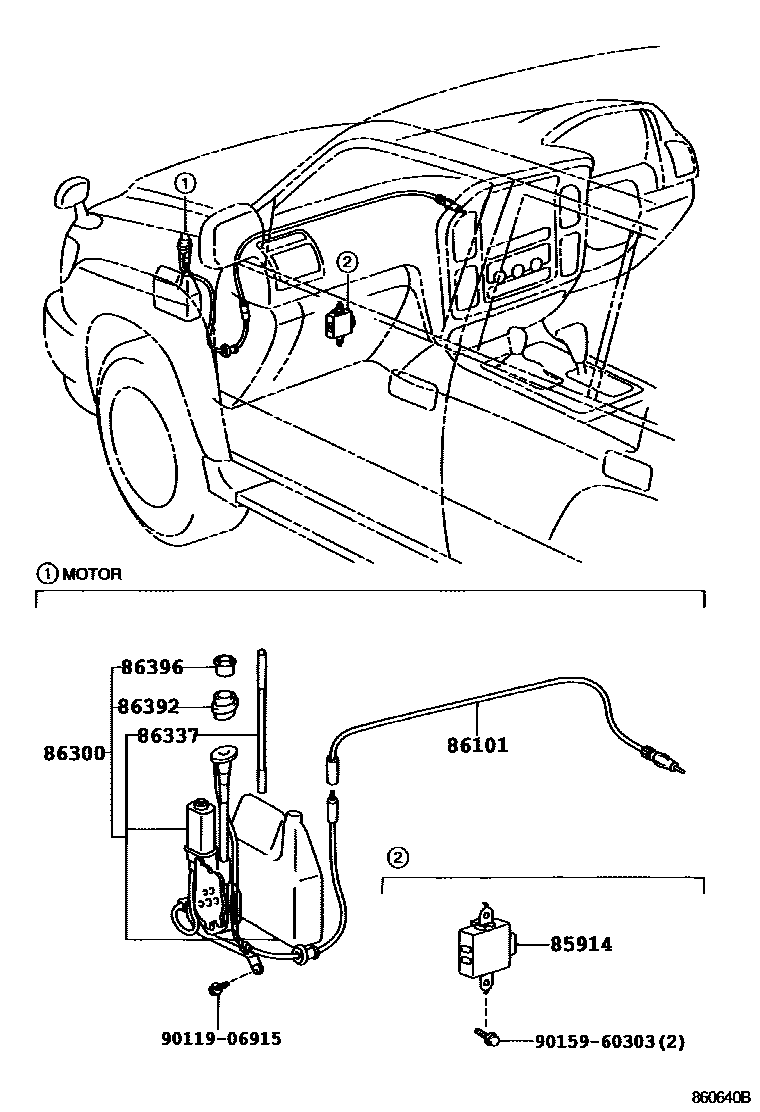

8 parts on this diagram · 3 diagrams in section
