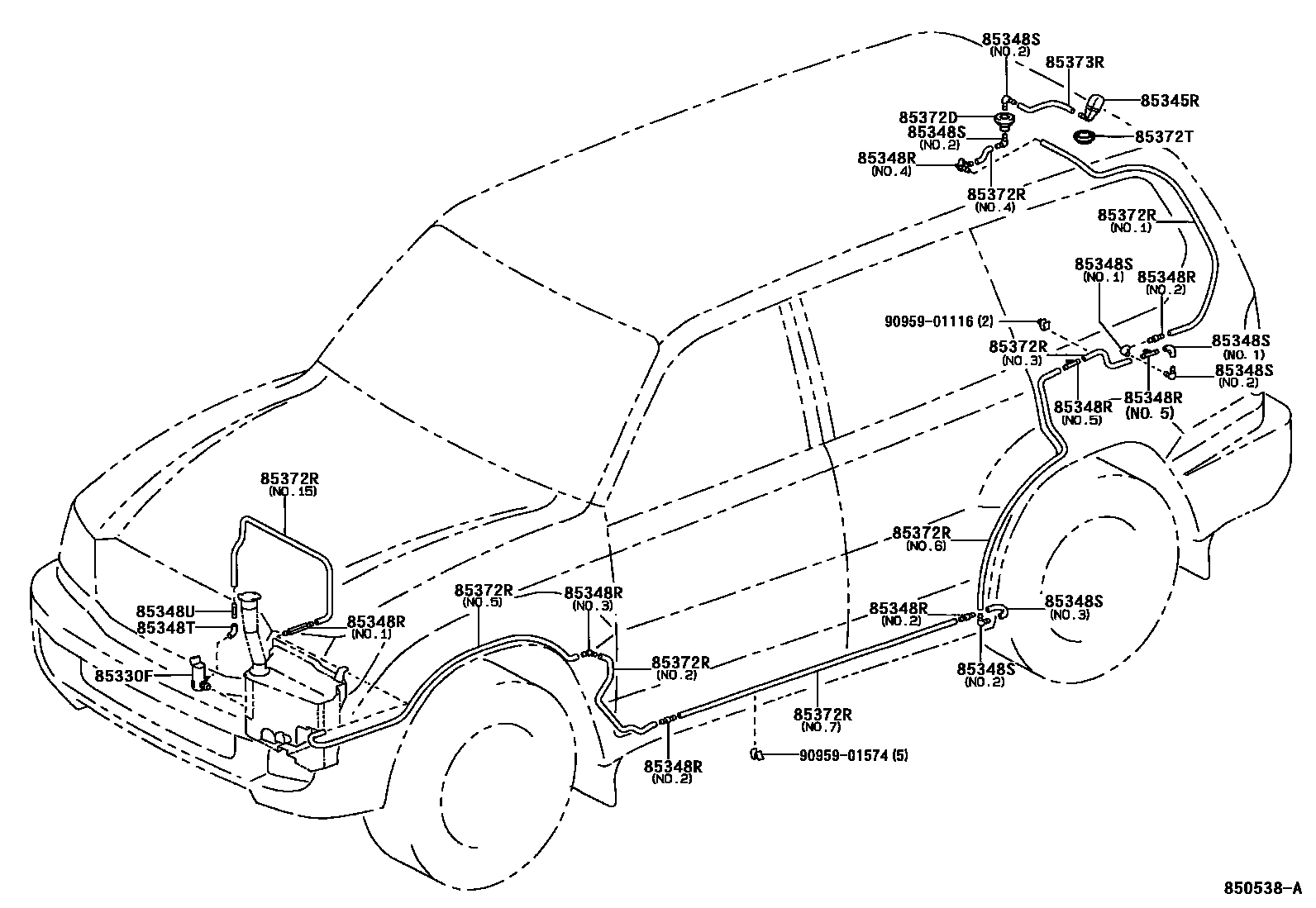

REAR WASHER
85330FMOTOR & PUMP ASSY, RR WASHER
W(HEADLAMP CLEANER)
85348RJOINT, REAR WASHER HOSE, NO.1
NO.3
NO.1
NO.4
NO.2
NO.3
NO.2
NO.5
85348SJOINT, REAR WASHER ELBOW, NO.1
NO.3
NO.1
NO.2
NO.1
NO.3
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85372DGROMMET, REAR WASHER HOSE
85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
L=1100(*H,L=720),NO.1
L=1450(*H,L=500),NO.2
L=1450(*H,L=1030),NO.1
L=1450(*H,L=1070),NO.1
L=1450(*H,L=1040),NO.1
L=1450(*H,L=120),NO.15,NO.3,NO.4
L=1450(*H,L=1110),NO.1
L=1450(*H,L=120),NO.6
L=1450(*H,L=140),NO.4
L=1450(*H,L=1110),NO.5
L=1450(*H,L=210),NO.8
L=1450(*H,L=290),NO.7
L=1000(*H,L=580),NO.2
L=3300(*H,L=2240),NO.7
L=1140,NO.5
L=1000(*H,L=970),NO.3
L=1800(*H,L=870),NO.6
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=210)
L=1450(*H,L=205)
9095901116
main90959-01116
9095901574
main90959-01574
12 parts on this diagram · 2 diagrams in section
