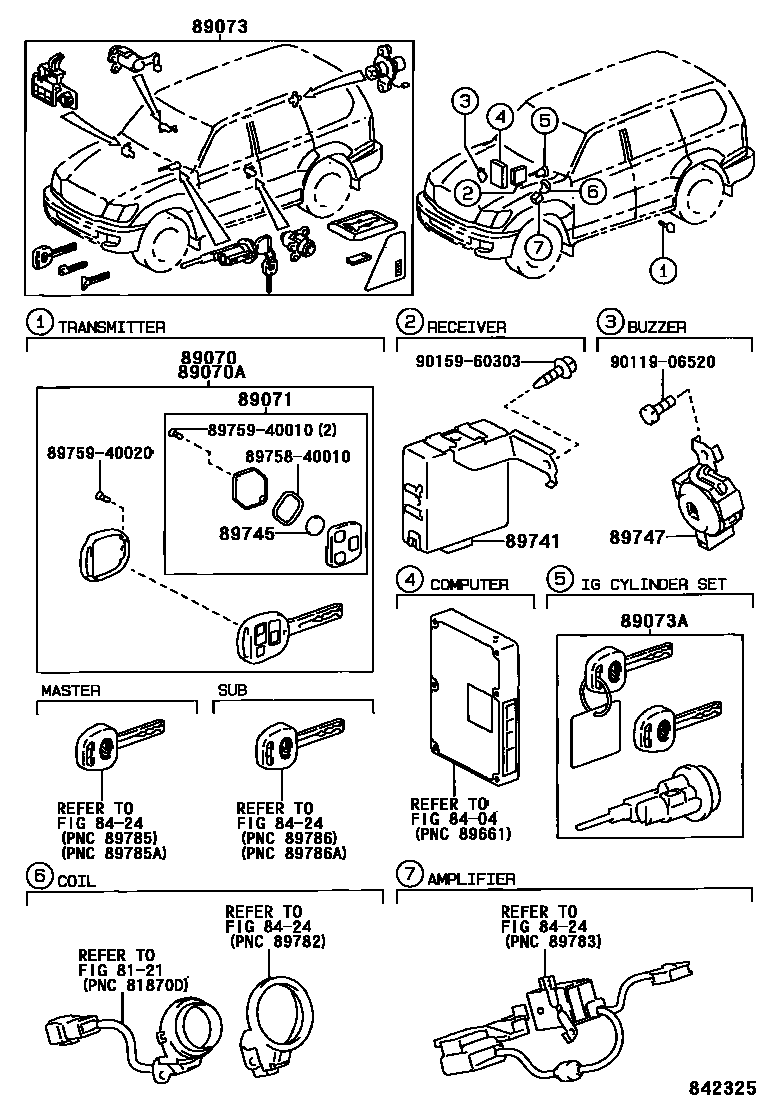

WIRELESS DOOR LOCK

0001 1 0002 1 0003 1 0004 1

8121INTERIOR LAMP

→ Go to FIG 81-21

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

8424ANTI-THEFT DEVICE

→ Go to FIG 84-24

89070TRANSMITTER ASSY, DOOR CONTROL

main89070-4D091iUZJ100..LHD200702

main89070-60100iUZJ100199801-200008

main89070-60101iUZJ100200008-200208

main89070-60810iUZJ100200505-200604

main89070-60811iUZJ100..LHD200605-200702

89070ATRANSMITTER, DOOR CONTROL (CUT KEY)

main89070-4D301iUZJ100..LHD200702

main89070-60150iUZJ100199801-200008

main89070-60151iUZJ100200008-200208

main89070-60880iUZJ100200505-200604

main89070-60881iUZJ100..RHD200605

89071MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-48240iUZJ100..LHD200702

main89071-60020×2iUZJ100199801-200208

main89071-60180iUZJ100..LHD200505-200702

89073CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)

main69005-6C480iUZJ100200208-200505

main69005-6C481iUZJ100200605

main89073-60090iUZJ100199801-200008

main89073-60091iUZJ100200008-200208

89073AIGN CYLINDER SET LOCK W/TRANSMITTER HOUSING (CUT KEY)

main69057-60510iUZJ100200208-200505

main69057-60511iUZJ100200605

main89073-60030iUZJ100199801-200008

main89073-60031iUZJ100200008-200208

89741RECEIVER, DOOR CONTROL

main89741-60080iUZJ100..RHD199801-200208

main89741-60100iUZJ100..LHD199801-200208

main89741-60380iUZJ100200208-200505

main89741-60390iUZJ100..LHD200702

89745BATTERY, TRANSMITTER

main89745-40010×2iUZJ100199801-200208

89747BUZZER, WIRELESS DOOR LOCK

main89747-60010iUZJ100199801-200208

8975840010PACKING, DOOR CONTROL TRANSMITTER

main89758-40010

8975940010SCREW, DOOR CONTROL TRANSMITTER

main89759-40010

8975940020SCREW, DOOR CONTROL TRANSMITTER

main89759-40020

9011906520

main90119-06520

9015960303

main90159-60303

16 parts on this diagram · 4 diagrams in section
