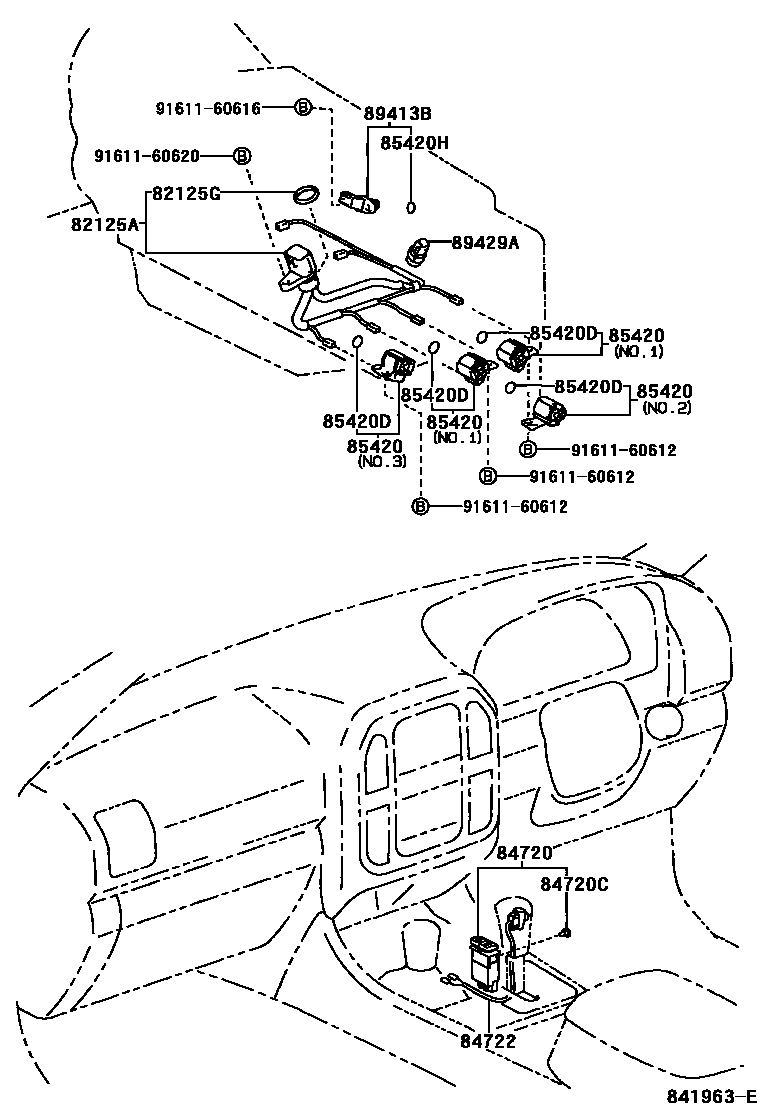

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION
82125AWIRE, TRANSMISSION
TEMPERATURE SENSOR HOUSING = GRAY
TEMPERATURE SENSOR HOUSING = GRAY
TEMPERATURE SENSOR HOUSING = BLACK
TEMPERATURE SENSOR HOUSING = BLACK
84720SWITCH ASSY, PATTERN SELECT
84720CBULB(FOR PATTERN SELECT SWITCH)
14V0.91W,W(GREEN CAP
84722SWITCH, TRANSMISSION CONTROL
BLACK,TRIM1#,4#
WOOD KNOB
NO.1
NO.1
NO.2
85420SOLENOID ASSY, TRANSMISSION
NO.1
NO.2
NO.3
85420DRING, O (FOR TRANSMISSION SOLENOID)
85420HRING, O(FOR SPEED SENSOR)
89413BSENSOR, TRANSMISSION REVOLUTION
89429ASENSOR, TEMPERATURE
9161160612
main91611-60612
9161160616
main91611-60616
9161160620
main91611-60620
13 parts on this diagram · 2 diagrams in section
