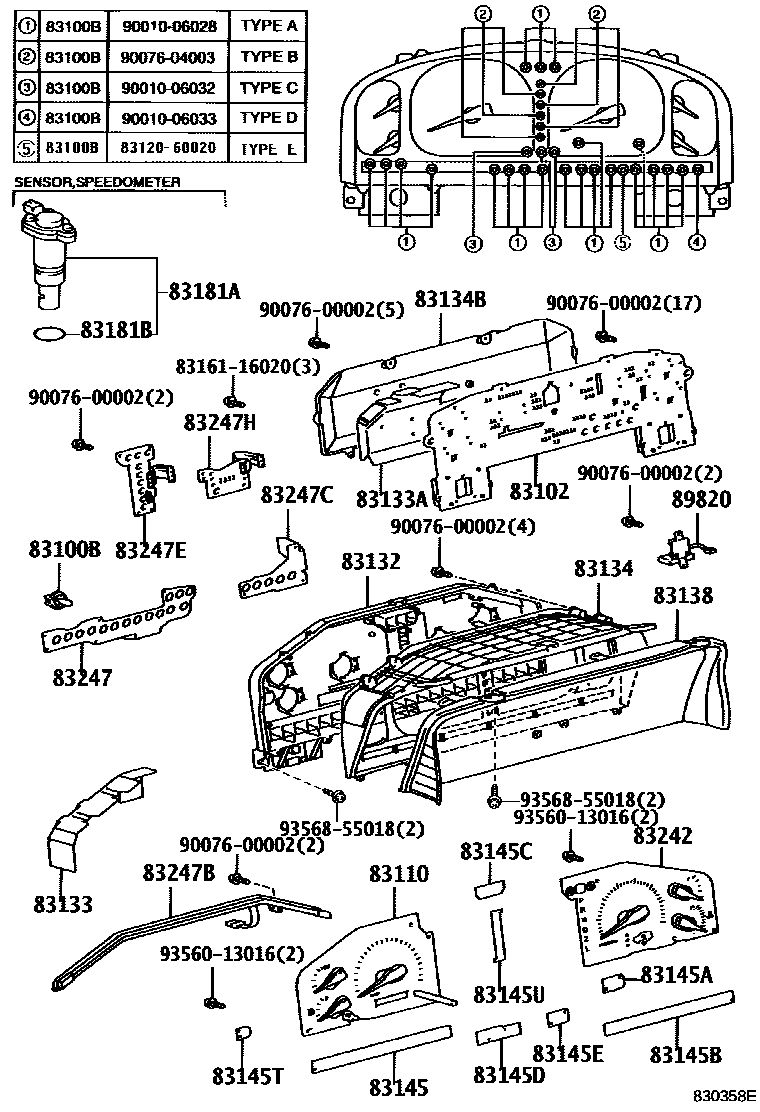

METER
83100METER ASSY, COMBINATION
83100BBULB, COMBINATION METER, NO.1
12V 1.4W,W(SOCKET),TYPE E:REFER TO ILLUSTRATION
12V 1.12W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION
14V 0.84W,W(SOCKET),TYPE C:REFER TO ILLUSTRATION
12V 1.4W,W(SOCKET),TYPE D:REFER TO ILLUSTRATION
12V 1.12W,W(SOCKET),TYPE B:REFER TO ILLUSTRATION
83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83110SPEEDOMETER ASSY
83132CASE, COMBINATION METER
83133PLATE, COMBINATION METER, NO.1
83133APLATE, COMBINATION METER, NO.2
83134COVER, COMBINATION METER, NO.1
83134BCOVER, COMBINATION METER, NO.2
83145LENS, METER, NO.1
83145ALENS, METER, NO.2
83145CLENS, METER, NO.4
83145DLENS, METER, NO.5
83145ELENS, METER, NO.6
83145TLENS, METER, NO.8
83145ULENS, METER, NO.9
83181ASENSOR, SPEEDOMETER
83181BRING, O (FOR SPEEDOMETER SENSOR)
83247PLATE, METER CIRCUIT
83247BPLATE, METER CIRCUIT, NO.2
83247CPLATE, MATER CIRCUIT, NO.3
83247EPLATE, MATER CIRCUIT, NO.4
83247HPLATE, METER CIRCUIT, NO.5
8316116020CASE, COMBINATION METER MIRROR, NO.1
main83161-16020
9007600002
main90076-00002
9356013016
main93560-13016
9356855018
main93568-55018
31 parts on this diagram · 3 diagrams in section
