WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0003 1ENGINE 0004 1ENGINE 0005 1ENGINE 0006 1COWL 0007 1COWL 0008 1COWL 0009 1COWL 0010 1INSTRUMENT PANEL 0011 1INSTRUMENT PANEL 0012 1INSTRUMENT PANEL 0013 1INSTRUMENT PANEL 0014 1DOOR 0015 1DOOR 0016 1SEAT 0017 1SEAT 0018 1FLOOR,ROOF,LUGGAGE,BACK DOOR 0019 1FLOOR,LUGGAGE 0020 1ROOF,BACK DOOR 0021 1BRACKET & CLAMP 0022 1BRACKET & CLAMP 0023 1CABLE BOND 0024 1CONNECTOR

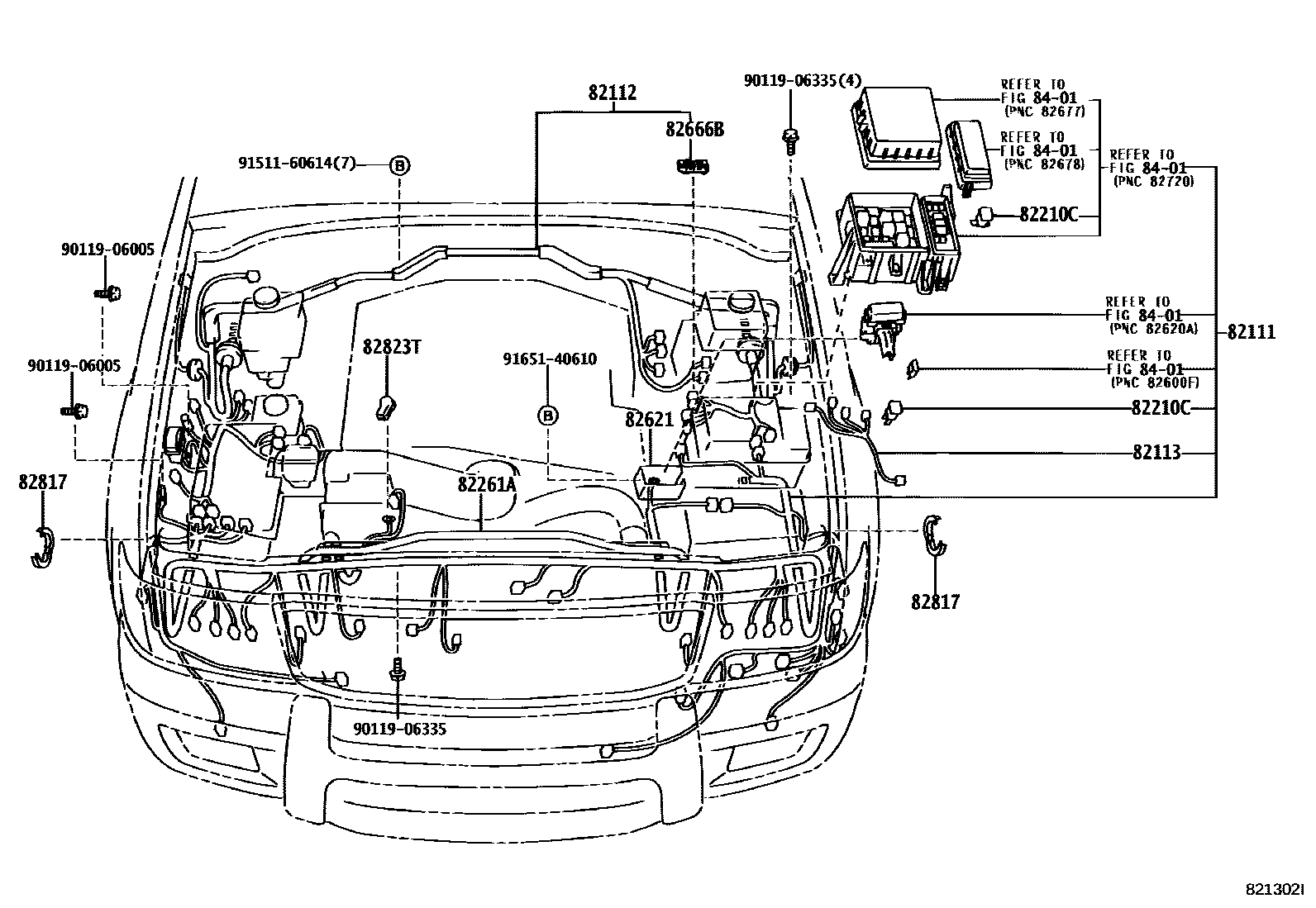

82111WIRE, ENGINE ROOM MAIN

main82111-6A020iUZJ100199801-199907

main82111-6A021iUZJ100199907-200005

main82111-6A022iUZJ100200005-200008

main82111-6A023iUZJ100200008-200208

main82111-6A024iUZJ100200208-200505

main82111-6A025iUZJ100200505-200609

main82111-6A026iUZJ100200609

82112WIRE, ENGINE ROOM, NO.2

main82112-60330iUZJ100..RHD199801-199808

main82112-60331iUZJ100..RHD199808-199907

main82112-60340iUZJ100..LHD199801-199808

main82112-60341iUZJ100..LHD199808-199907

main82112-60410iUZJ100..RHD199907-200008

main82112-60411iUZJ100..RHD200008-200208

main82112-60412iUZJ100..RHD200208-200407

main82112-60413iUZJ100..RHD200407-200505

main82112-60420iUZJ100..LHD199907-200008

main82112-60421iUZJ100..LHD200008-200208

main82112-60423iUZJ100..LHD200505-200609

main82112-60424iUZJ100..LHD200609

82113WIRE, ENGINE ROOM, NO.3

main82113-60070iUZJ100199801-200208

82210CFUSIBLE LINK

main90982-08246iUZJ100199801-200208

100A,TERM.:MALE,BLUE

main90982-08283iUZJ100199801-200208

30A,TERM.:FEMALE,PNK

main90982-08284iUZJ100200208-200505

40A,TERM.:FEMALE,GRN

main90982-08285iUZJ100199801-200208

50A,FEMALE,RED,32VDC

main90982-08286iUZJ100199801-200208

140A,TERM.:MALE,RBR

main90982-08290iUZJ100199801-200208

60A,YELLOW

main90982-08291iUZJ100200208-200505

80A,BLACK

82261AWIRE, ALTERNATOR

main82261-60060iUZJ100199801-200208

main82261-60061iUZJ100200208-200407

main82261-60141iUZJ100200407-200505

main82261-60142iUZJ100200505

82621COVER, FUSIBLE LINK

main82621-60010iUZJ100199801-200208

82666BHOLDER, CONNECTOR NO.3

main82666-60060iUZJ100199801-199907

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-24110×2iUZJ100199801-200208

82823TCAP, ALTERNATOR TERMINAL

main82823-22050iUZJ100199801-200208

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906005

main90119-06005

9011906335

main90119-06335

9151160614

main91511-60614

9165140610

main91651-40610

14 parts on this diagram · 24 diagrams in section
