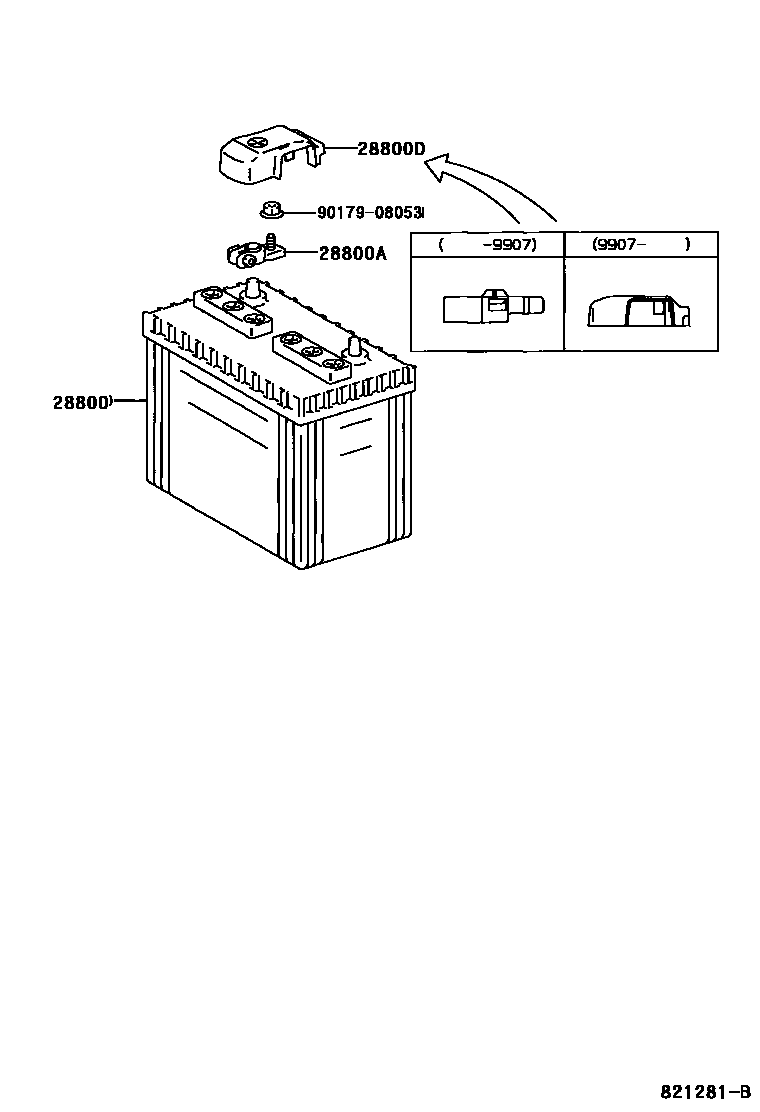

BATTERY & BATTERY CABLE

0001 1 0002 1

28800BATTERY

main28800-17120i2UZFE..UZJ100199801-199803

80D26L,FURUKAWA

main28800-17121i2UZFE..UZJ100..LHD200505-200601

80D26L,FURUKAWA

main28800-50160i2UZFE..UZJ100..LHD200601-200708

80D26L,FURUKAWA

main28800-54020i2UZFE..UZJ100200208-200505

80D26L,GS YUASA

main28800-64122i2UZFE..UZJ100200103-200208

80D26L,GS

main28800-64131i2UZFE..UZJ100199801-200103

80D26L,YUASA

main28800-64132i2UZFE..UZJ100200208-200505

80D26L,YUASA

main28800-64151i2UZFE..UZJ100199801-200103

80D26L,MATSUSHITA

main28800-76080i2UZFE..UZJ100200103-200208

80D26L,MATSUSHITA

28800ATERMINAL, BATTERY POSITIVE

main82675-60020i2UZFE..UZJ100200208-200505

main90982-05035i2UZFE..UZJ100199801-200208

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-60040i2UZFE..UZJ100199801-199907

main82821-60041i2UZFE..UZJ100199907-200208

9017908053

main90179-08053

4 parts on this diagram · 2 diagrams in section
