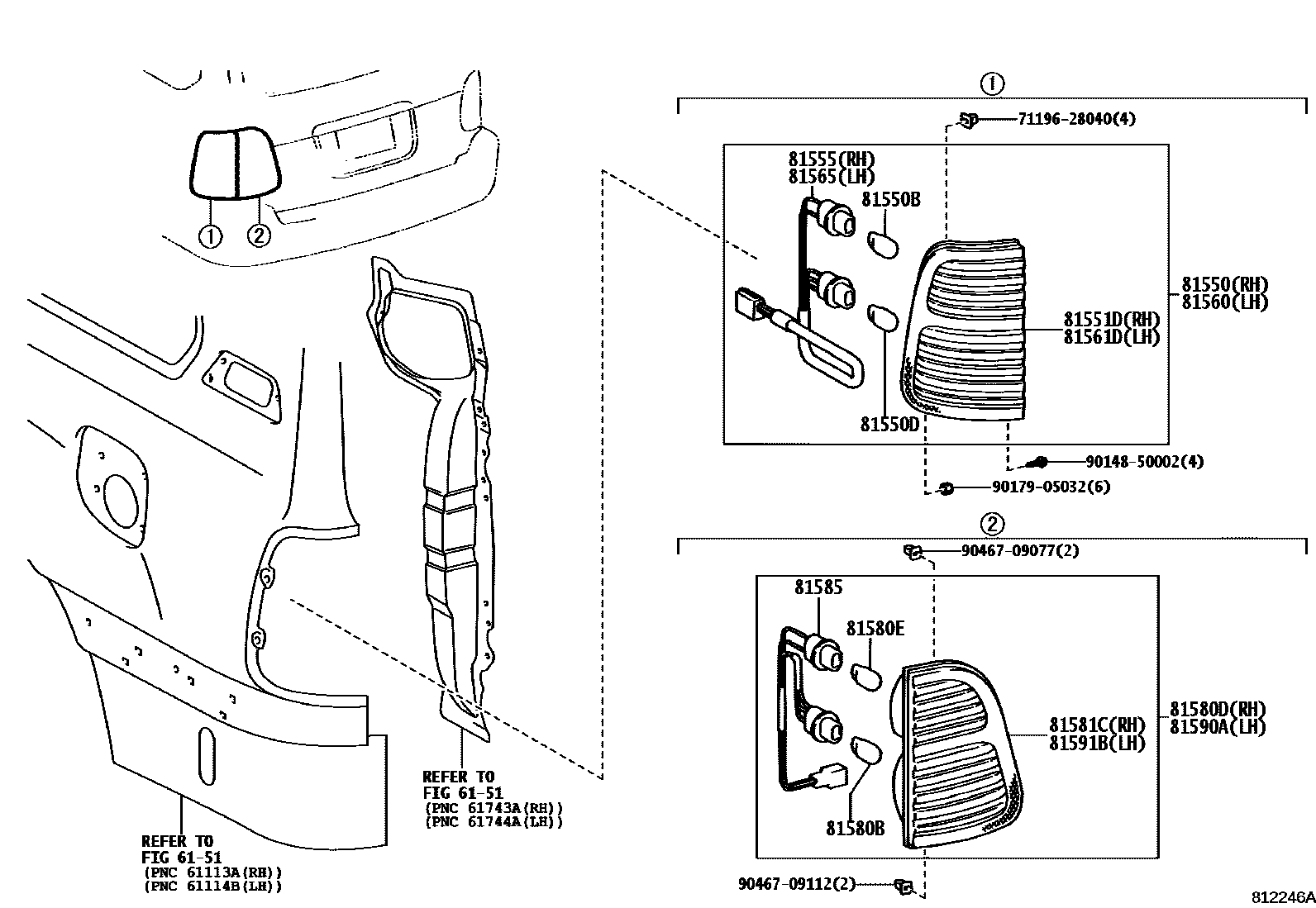

REAR COMBINATION LAMP

0001 1 0002 1 0003 1

6151SIDE MEMBER

→ Go to FIG 61-51

81550LAMP ASSY, REAR COMBINATION, RH

main81550-60580iUZJ100199801-200208

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-13043×2iUZJ100199801-200208

12V 21W

81550DBULB(FOR REAR COMBINATION LAMP)

main90981-13044×2iUZJ100199801-200208

12V 21/5W

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-60580iUZJ100199801-200208

main81551-60770iUZJ100200505-200611

main81551-60771iUZJ100200612

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-60590iUZJ100199801-200208

main81555-60770iUZJ100200505

81560LAMP ASSY, REAR COMBINATION, LH

main81560-60500iUZJ100199801-200208

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-60500iUZJ100199801-200208

main81561-60690iUZJ100200505-200611

main81561-60691iUZJ100200612

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-60590iUZJ100199801-200208

main81555-60770iUZJ100200505

81580BBULB (FOR REAR LAMP)

main90981-13044×2iUZJ100199801-200208

12V 21/5W

main90981-15021×2iUZJ100200505

12V 21W,AMBER

81580DLAMP ASSY, REAR, RH

main81580-60040iUZJ100199801-200208

main81580-60080iUZJ100200208-200505

81580EBULB

main90981-13043×2iUZJ100199801-200208

81581CLENS AND BODY, REAR LAMP, RH

main81581-60040iUZJ100199801-200208

main81581-60080iUZJ100200208-200505

main81581-60150iUZJ100200505

81585SOCKET & WIRE, REAR LAMP

main81585-60040×2iUZJ100199801-200208

main81585-60160×2iUZJ100200505

81590ALAMP ASSY, REAR, LH

main81590-60070iUZJ100199801-200208

main81590-60110iUZJ100200208-200505

81591BLENS AND BODY, REAR LAMP, LH

main81591-60070iUZJ100199801-200208

main81591-60110iUZJ100200208-200505

main81591-60180iUZJ100200505

7119628040CLIP(FOR REAR SPOILER)

main71196-28040

9014850002

main90148-50002

9017905032

main90179-05032

9046709077

main90467-09077

9046709112

main90467-09112

21 parts on this diagram · 3 diagrams in section
