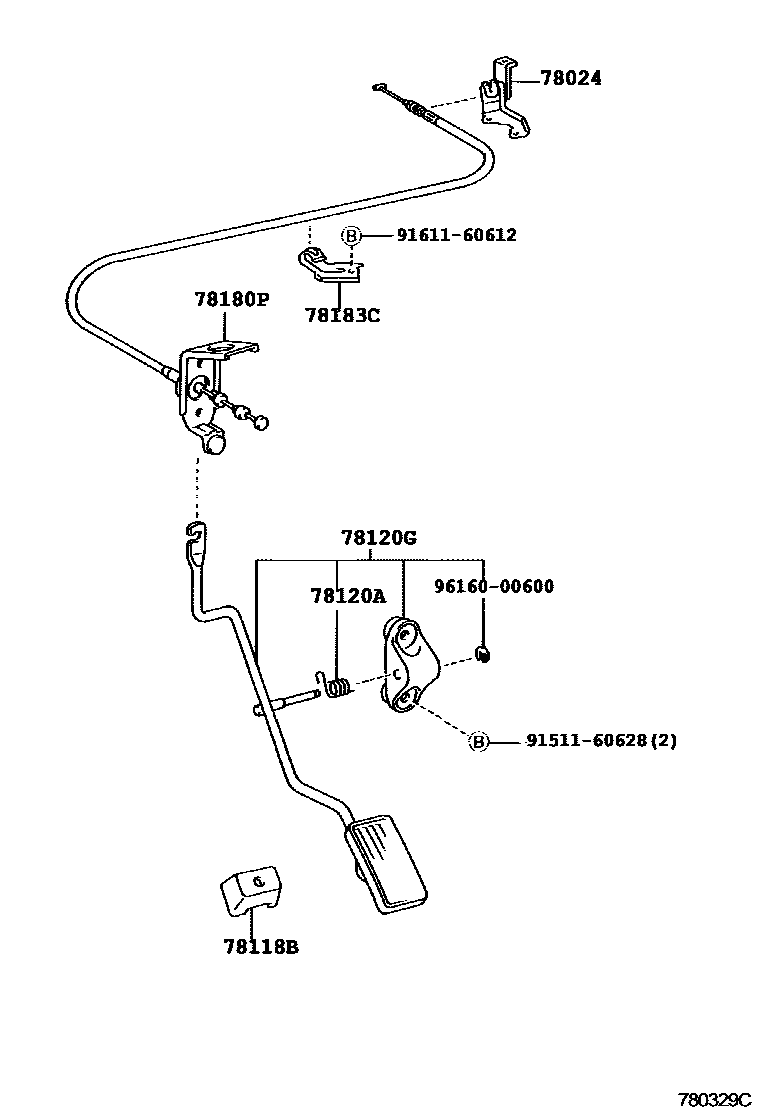

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-60060iUZJ100199801-200208

78118BSTOPPER, ACCELERATOR PEDAL

main78118-60010iUZJ100..RHD199801-200208

main78118-60020iUZJ100..LHD200208-200505

78120ASPRING, COMPRESSION (FOR ACCELERATOR LINK ROD)

main90959-03184iUZJ100199801-200208

78120GROD ASSY, ACCELERATOR PEDAL

main78010-60080iUZJ100..RHD200208-200505

main78010-60090iUZJ100..LHD200208-200505

main78120-60230iUZJ100..RHD199801-199912

main78120-60231iUZJ100..RHD199912-200208

main78120-60240iUZJ100..LHD199801-200208

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-60580iUZJ100..RHD199801-199803

main78180-60581iUZJ100..RHD199803-199810

main78180-60590iUZJ100..LHD199801-200208

main78180-60640iUZJ100..RHD199810-200208

78183CCLAMP, ACCELERATOR CONTROL CABLE

main78183-30140iUZJ100..LHD199801-200208

9151160628

main91511-60628

9161160612

main91611-60612

9616000600

main96160-00600

9 parts on this diagram · 4 diagrams in section
