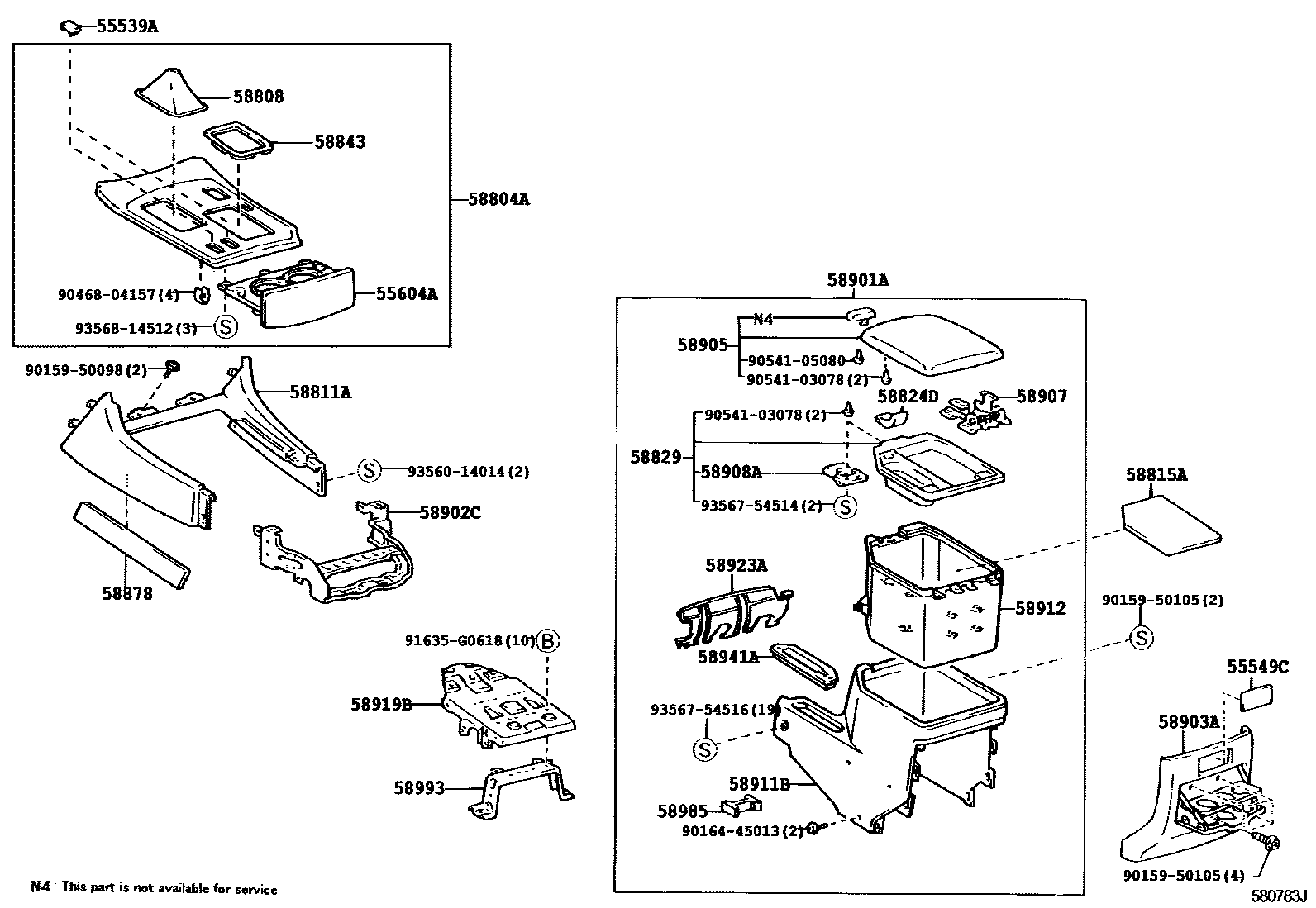

CONSOLE BOX & BRACKET

0001 1 0002 1

55539ACOVER, SPARE SWITCH HOLE

main55539-60020-C0×2iUZJ100200208-200505

BLACK,TRIM0#,1#

55549CCOVER, REAR COOLER SWITCH HOLE

main55549-60030-A0iUZJ100199801-200208

IVORY,TRIM4#

main55549-60030-A1iUZJ100200208-200505

IVORY,TRIM0#

main55549-60030-B1iUZJ100199801-200208

MD.GRAY,TRIM1#

main55549-60030-B2iUZJ100200208-200505

STONE,TRIM1#

55604AHOLDER SUB-ASSY, INSTRUMENT PANEL CUP

main55604-60100iUZJ100..LHD199801-199907

main55604-60110iUZJ100..RHD199801-199907

main55604-60130iUZJ100..LHD199907-200208

main55604-60131iUZJ100..LHD200505-200510

main55604-60132iUZJ100..LHD200511

main55604-60140iUZJ100..RHD199907-200208

main55604-60141iUZJ100..RHD200505-200512

main55604-60142iUZJ100..RHD200601

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-60150iUZJ100..LHD199801-199907

main58804-60151iUZJ100..LHD199907-200208

main58804-60152iUZJ100..LHD200505

main58804-60180iUZJ100..RHD199801-199907

main58804-60181iUZJ100..RHD199907-200208

main58804-60182iUZJ100..RHD200208-200505

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-60130iUZJ100199801-200208

58811ABOX, CONSOLE, FRONT

main58811-60180-A0iUZJ100199801-200208

IVORY,TRIM4#

main58811-60180-B1iUZJ100199801-200208

MD.GRAY,TRIM1#

main58811-60210-A0iUZJ100200208-200505

IVORY,TRIM0#

main58811-60210-B0iUZJ100200208-200505

STONE,TRIM1#

58815ACARPET, CONSOLE BOX

main58815-60030iUZJ100..LHD200208-200308

main58815-60040iUZJ100..RHD200208-200505

main58815-60050iUZJ100..LHD200308-200505

58824DBOX, CONSOLE COIN

main58824-60010iUZJ100200505

58829POCKET, CONSOLE BOX

main58806-60030iUZJ100..RHD200505

main58806-60040iUZJ100..LHD200505

58843BEZEL, SHIFTING HOLE

main58843-60010iUZJ100199801-200208

main58843-60050iUZJ100200505

58878PAD, CONSOLE BOX SILENCER, NO.4

main58878-60040×2iUZJ100200208-200505

58901ABOX SUB-ASSY, CONSOLE, REAR

main58081-60020-A0iUZJ100..RHD200208-200212

IVORY,TRIM0#

main58081-60020-B0iUZJ100..RHD200208-200212

STONE,TRIM1#

main58081-60021-A0iUZJ100..RHD200212-200505

IVORY,TRIM0#

main58081-60021-B0iUZJ100..RHD200212-200505

STONE,TRIM1#

main58081-60030-A0iUZJ100..LHD200208-200212

IVORY,TRIM0#

main58081-60030-B0iUZJ100..LHD200208-200212

STONE,TRIM1#

main58081-60031-A0iUZJ100..LHD200212-200308

IVORY,TRIM0#

main58081-60031-B0iUZJ100..LHD200212-200308

STONE,TRIM1#

main58081-60051-A0iUZJ100..LHD200505-200708

IVORY,TRIM0#

main58081-60051-B0iUZJ100..LHD200505-200708

STONE,TRIM1#

main58901-60270-A0iUZJ100..LHD199801-200208

IVORY,TRIM4#

main58901-60270-B0iUZJ100..LHD199801-200208

MD.GRAY,TRIM1#

main58901-60320-A0iUZJ100..RHD199801-200208

IVORY,TRIM4#

main58901-60320-B0iUZJ100..RHD199801-200208

MD.GRAY,TRIM1#

58902CBRACKET SUB-ASSY, CONSOLE BOX MOUNTING

main58902-60030iUZJ100..RHD199801-200208

main58902-60050iUZJ100..LHD199801-200208

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-60010-A0iUZJ100199801-200208

IVORY,TRIM4#

main58903-60010-A1iUZJ100200208-200505

IVORY,TRIM0#

main58903-60010-B1iUZJ100199801-200208

MD.GRAY,TRIM1#

main58903-60010-B2iUZJ100200208-200505

STONE,TRIM1#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-60090-A0iUZJ100199801-200208

IVORY,TRIM4#

main58905-60090-A1iUZJ100200208-200212

IVORY,TRIM0#

main58905-60090-B0iUZJ100199801-200208

MD.GRAY,TRIM1#

main58905-60090-B1iUZJ100200208-200212

STONE,TRIM1#

main58905-60091-A1iUZJ100200212-200308

IVORY,TRIM0#

main58905-60091-B1iUZJ100200212-200308

STONE,TRIM1#

main58905-60092-A1iUZJ100200505-200708

IVORY,TRIM0#

main58905-60092-B1iUZJ100200308-200505

STONE,TRIM1#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-60040iUZJ100199801-200208

main58907-60041iUZJ100200505

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-32050iUZJ100199801-200208

58911BPANEL, BOX, NO.1

main58911-60080-A0iUZJ100..RHD199801-200208

IVORY,TRIM4#

main58911-60080-A1iUZJ100..RHD200505-200708

IVORY,TRIM0#

main58911-60080-B1iUZJ100..RHD199801-200208

MD.GRAY,TRIM1#

main58911-60080-B2iUZJ100..RHD200505-200708

STONE,TRIM1#

main58911-60090-A0iUZJ100..LHD199801-200208

IVORY,TRIM4#

main58911-60090-A1iUZJ100..LHD200208-200505

IVORY,TRIM0#

main58911-60090-B1iUZJ100..LHD199801-200208

MD.GRAY,TRIM1#

main58911-60090-B2iUZJ100..LHD200208-200505

STONE,TRIM1#

58912BOX, REAR CONSOLE, NO.2

main58912-60030iUZJ100..RHD199801-200208

main58912-60031iUZJ100..RHD200505

main58912-60040iUZJ100..LHD200208-200308

main58912-60060iUZJ100..LHD199801-200208

58919BPLATE, CONSOLE BOX

main58919-60020iUZJ100..LHD200208-200308

main58919-60030iUZJ100199905-200208

main58919-60040iUZJ100..RHD199801-199905

58923APANEL, CONSOLE REAR END

main58903-60010-A0iUZJ100199801-200208

IVORY,TRIM4#

main58903-60010-B1iUZJ100199801-200208

MD.GRAY,TRIM1#

main58923-60020iUZJ100..RHD199801-200208

W(CAPTAIN SEAT)

main58923-60030iUZJ100..LHD200208-200505

58941ACOVER, PARKING BRAKE HOLE

main58941-60030iUZJ100..RHD199801-200208

main58941-60040iUZJ100..LHD200208-200505

58985RETAINER, CONSOLE BOX

main58985-60060iUZJ100199902-200208

58993BRACKET, CONSOLE BOX MOUNTING, REAR

main58993-60030iUZJ100200208-200505

main58993-60040iUZJ100199801-199803

9015950098

main90159-50098

9015950105

main90159-50105

9016445013

main90164-45013

9046804157

main90468-04157

9054103078

main90541-03078

9054105080

main90541-05080

91635G0618

main91635-G0618

9356014014

main93560-14014

9356754514

main93567-54514

9356754516

main93567-54516

9356814512

main93568-14512

35 parts on this diagram · 2 diagrams in section
