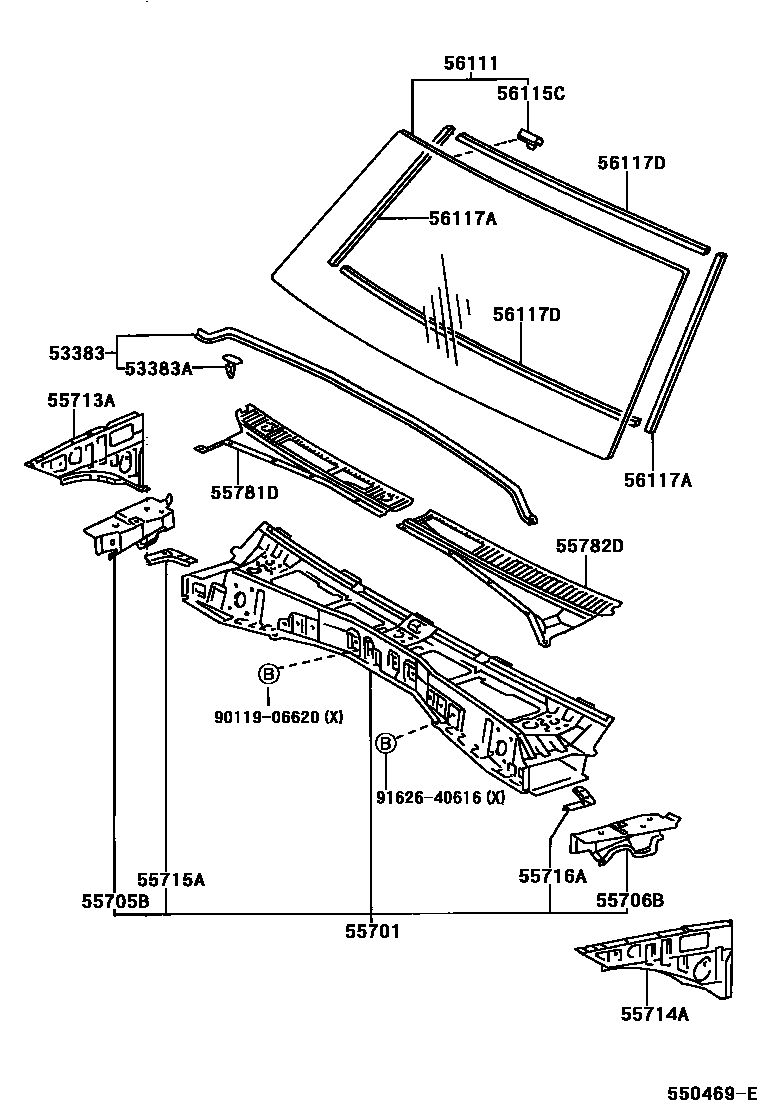

COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-60030iUZJ100199801-200208

main53383-60031iUZJ100200505

53383ACLIP(FOR HOOD TO COWL TOP SEAL)

main90467-08108×8iUZJ100199801-200208

55701PANEL SUB-ASSY, COWL

main55700-6A630iUZJ100..RHD199801-200208

main55700-6A650iUZJ100..LHD200505

main55700-6A710iUZJ100..LHD199801-199808

main55700-6B030iUZJ100..RHD200208-200505

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-60010iUZJ100199801-200208

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-60040iUZJ100199801-200208

55713APANEL, COWL TOP SIDE, RH

main55713-60050iUZJ100199801-200208

55714APANEL, COWL TOP SIDE, LH

main55714-60050iUZJ100199801-200208

55715ABRACE, COWL TOP TO APRON, RH

main55715-60020iUZJ100199801-200208

55716ABRACE, COWL TOP TO APRON, LH

main55716-60020iUZJ100199801-200208

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-60100iUZJ100..RHD199801-200208

main55781-60110iUZJ100..LHD200505

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-60020iUZJ100..RHD199801-200208

main55782-60030iUZJ100..LHD200208-200505

56111GLASS, WINDSHIELD

main56111-60270iUZJ100..LHD199801-199808

*LAM,T=4.7,GREEN,W(MIRROR BASE & TOP SHADE)

main56111-60280iUZJ100199801-199808

*LAM,T=4.7,BRONZE,W(MIRROR BASE & TOP SHADE)

main56111-60290iUZJ100..LHD199808-200008

*LAM,T=4.7,GREEN

main56111-60300iUZJ100..LHD199808-200008

*LAM,T=4.7,BRONZE

main56111-60420iUZJ100..RHD200008-200208

*LAM,T=4.7,BRONZE

main56111-60430iUZJ100..LHD200008-200208

*LAM,T=4.7,BRONZE

main56111-60440iUZJ100..LHD200008-200208

*LAM,T=4.7,GREEN

main56111-60540iUZJ100..RHD200308-200407

*LAM,T=4.76,GREEN

main56111-60541iUZJ100..RHD200505

*LAM,T=4.76,GREEN

main56111-60560iUZJ100..RHD200208-200301

*LAM,T=4.76,BRONZE

main56111-60561iUZJ100..RHD200301-200308

*LAM,T=4.76,BRONZE

main56111-60570iUZJ100..LHD200208-200301

*LAM,T=4.76,BRONZE

main56111-60571iUZJ100..LHD200301-200308

*LAM,T=4.76,BRONZE

main56111-60580iUZJ100..LHD200208-200301

*LAM,T=4.76,GREEN

main56111-60581iUZJ100..LHD200301-200505

*LAM,T=4.76,GREEN

56115CSTOPPER, WINDSHIELD GLASS

main56115-33020×2iUZJ100199801-200208

main56115-60020×2iUZJ100200410-200505

56117ADAM, WINDOW GLASS ADHESIVE

main56117-60040×2iUZJ100200208-200505

L=905

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-60040iUZJ100199801-200208

UPPER

main56117-60050iUZJ100199801-200208

L=1585,LOWER

9011906620

main90119-06620

9162640616

main91626-40616

17 parts on this diagram · 1 diagram in section
