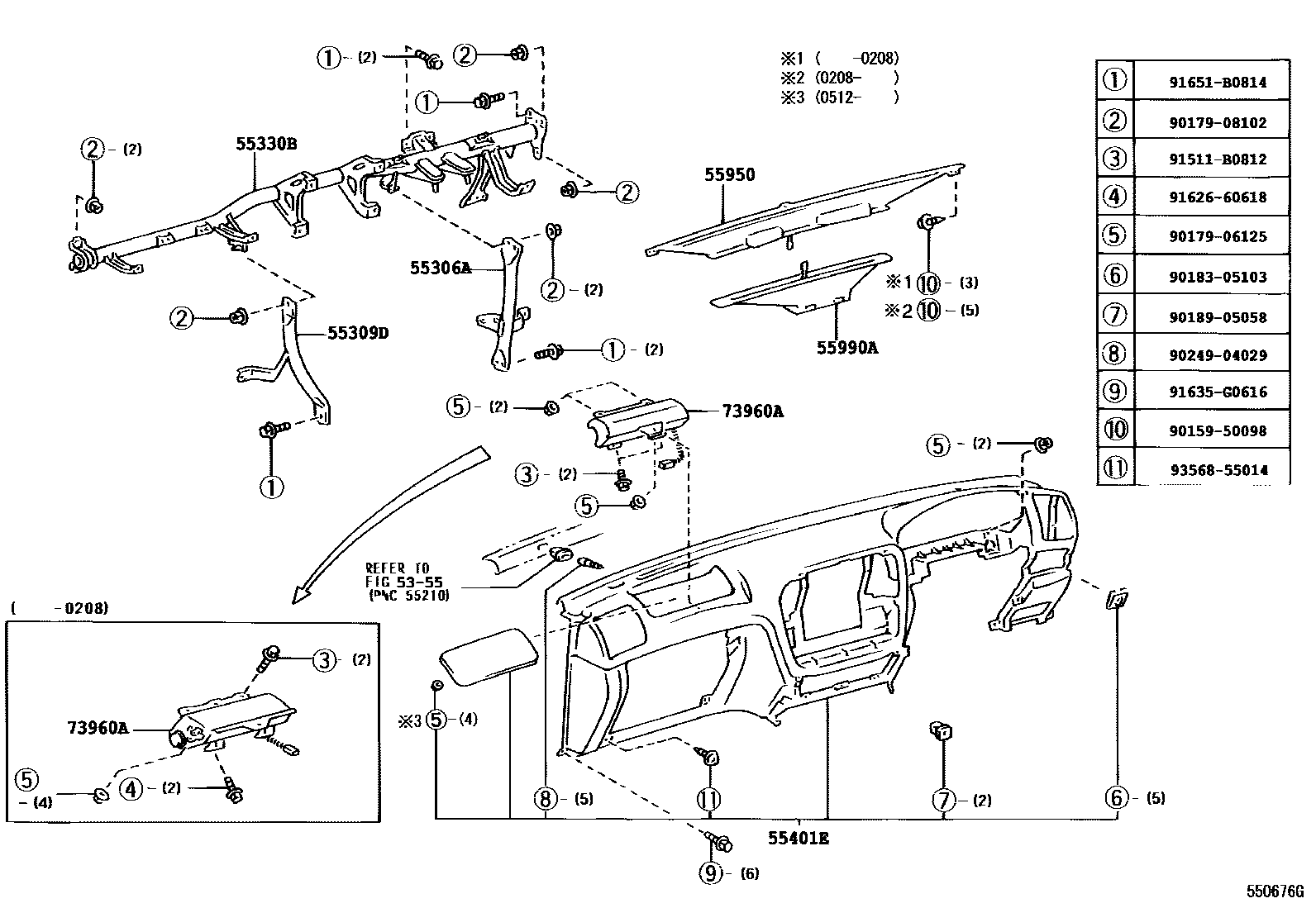

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1DRIVER SIDE 0004 1DRIVER SIDE 0005 1DRIVER SIDE 0006 1DRIVER SIDE 0007 1CENTER 0008 1CENTER 0009 1CENTER 0010 1CENTER 0011 1PASSENGER SIDE 0012 1PASSENGER SIDE 0013 1PASSENGER SIDE 0014 1PASSENGER SIDE

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-60110iUZJ100..RHD199801-199812

main55306-60120iUZJ100..LHD199801-199812

main55306-60130iUZJ100..RHD199812-200208

main55306-60131iUZJ100..RHD200505

main55306-60140iUZJ100..LHD199812-200208

main55306-60141iUZJ100..LHD200208-200505

55309DBRACE SUB-ASSY, INSTRUMENT PANEL TO FLOOR

main55309-60030iUZJ100..RHD199801-200008

main55309-60031iUZJ100..RHD200008-200208

main55309-60032iUZJ100..RHD200208-200505

main55309-60040iUZJ100..LHD199801-200008

main55309-60041iUZJ100..LHD200008-200208

main55309-60042iUZJ100..LHD200208-200505

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-60120iUZJ100..RHD199801-200208

W(POWER TILT STEERING)

main55330-60121iUZJ100..RHD200505

main55330-60170iUZJ100..LHD199801-200208

W(POWER TILT STEERING)

main55330-60171iUZJ100..LHD200208-200505

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-60170-B1iUZJ100..RHD199801-200208

SHADOW GRAY,TRIM1#

main55401-60170-E0iUZJ100..RHD199801-200208

OAK,TRIM4#

main55401-60190-B1iUZJ100..LHD199801-200208

SHADOW GRAY,TRIM1#

main55401-60190-E0iUZJ100..LHD199801-200208

OAK,TRIM4#

main55401-60200-B0iUZJ100..LHD200208-200505

DK.GRAY,TRIM1#

main55401-60200-E0iUZJ100..LHD200505-200511

SANDAL WOOD,TRIM0#

main55401-60201-B0iUZJ100..LHD200512-200708

DK.GRAY,TRIM1#

main55401-60201-E0iUZJ100..LHD200512-200708

SANDAL WOOD,TRIM0#

main55401-60230-B0iUZJ100..RHD200505-200708

DK.GRAY,TRIM1#

main55401-60230-E0iUZJ100..RHD200208-200505

SANDAL WOOD,TRIM0#

55950NOZZLE ASSY, DEFROSTER

main55950-60080iUZJ100..RHD199801-200201

main55950-60081iUZJ100..RHD200208-200505

main55950-60090iUZJ100..LHD199801-200201

main55950-60091iUZJ100..LHD200208-200505

55990ANOZZLE ASSY, DEFROSTER, LOWER

main55990-60010iUZJ100..RHD199801-200208

main55990-60020iUZJ100..LHD199801-200208

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-60030iUZJ100..LHD199801-200208

main73960-60050iUZJ100..RHD199801-200208

main73960-60110iUZJ100..RHD200208-200505

main73960-60120iUZJ100..LHD200208-200505

9015950098

main90159-50098

9017906125

main90179-06125

9017908102

main90179-08102

9018305103

main90183-05103

9018905058

main90189-05058

9024904029

main90249-04029

91511B0812

main91511-B0812

9162660618

main91626-60618

91635G0616

main91635-G0616

91651B0814

main91651-B0814

9356855014

main93568-55014

18 parts on this diagram · 14 diagrams in section
