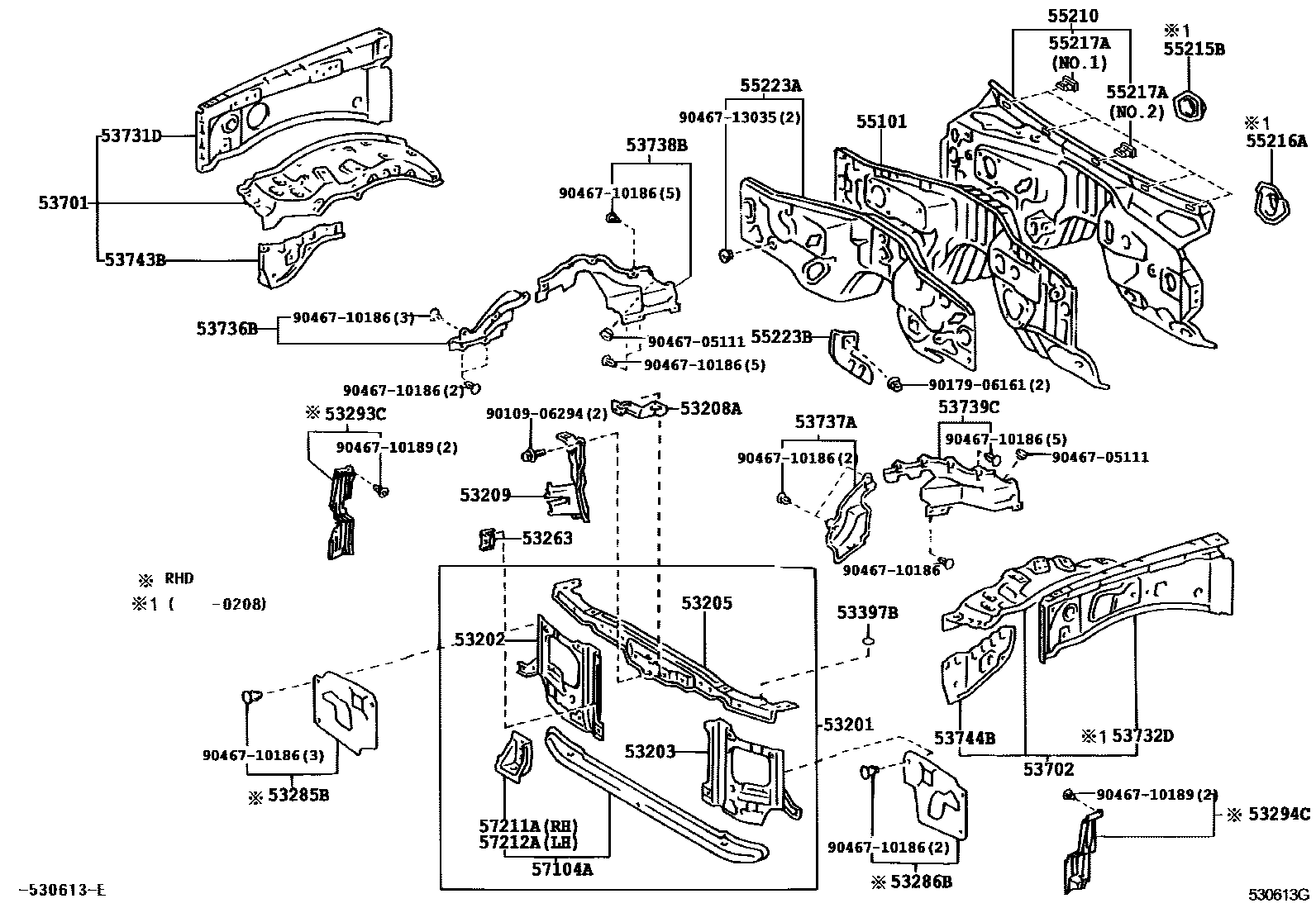

FRONT FENDER APRON & DASH PANEL
53201SUPPORT SUB-ASSY, RADIATOR
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53208ASUPPORT SUB-ASSY, HOOD LOCK
53209BRACE SUB-ASSY, HOOD LOCK
53263RETAINER, INTERCOOLER MOUNTING
53285BSEAL, RADIATOR SIDE AIR, NO.1
53286BSEAL, RADIATOR SIDE AIR, NO.2
53293CDEFLECTOR, RADIATOR SIDE, RH
53294CDEFLECTOR, RADIATOR SIDE, LH
53397BSEAL, RADIATOR, UPPER
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53736BSEAL, FRONT FENDER APRON TO FRAME, NO.1 RH
53737ASEAL, FRONT FENDER APRON TO FRAME, NO.1 LH
53738BSEAL, FRONT FENDER APRON TO FRAME, NO.2 RH
53739CSEAL, FRONT FENDER APRON TO FRAME, REAR
53743BREINFORCEMENT, FRONT FENDER APRON, FRONT RH
53744BREINFORCEMENT, FRONT FENDER APRON, FRONT LH
55101PANEL SUB-ASSY, DASH
55210INSULATOR ASSY, DASH PANEL
55215BPAD, DASH PANEL INSULATOR, NO.3
55216APAD, DASH PANEL INSULATOR, NO.4
55217ARETAINER, DASH PANEL SILENCER
NO.1
NO.2
55223AINSULATOR, DASH PANEL, OUTER
55223BINSULATOR, DASH PANEL HEAT, NO.1
57104AMEMBER SUB-ASSY, FRONT CROSS
57211ABRACKET, BODY MOUNTING, NO.1 RH
57212ABRACKET, BODY MOUNTING, NO.1 LH
9010906294
main90109-06294
9017906161
main90179-06161
9046705111
main90467-05111
9046710186
main90467-10186
9046710189
main90467-10189
9046713035
main90467-13035
38 parts on this diagram · 1 diagram in section
