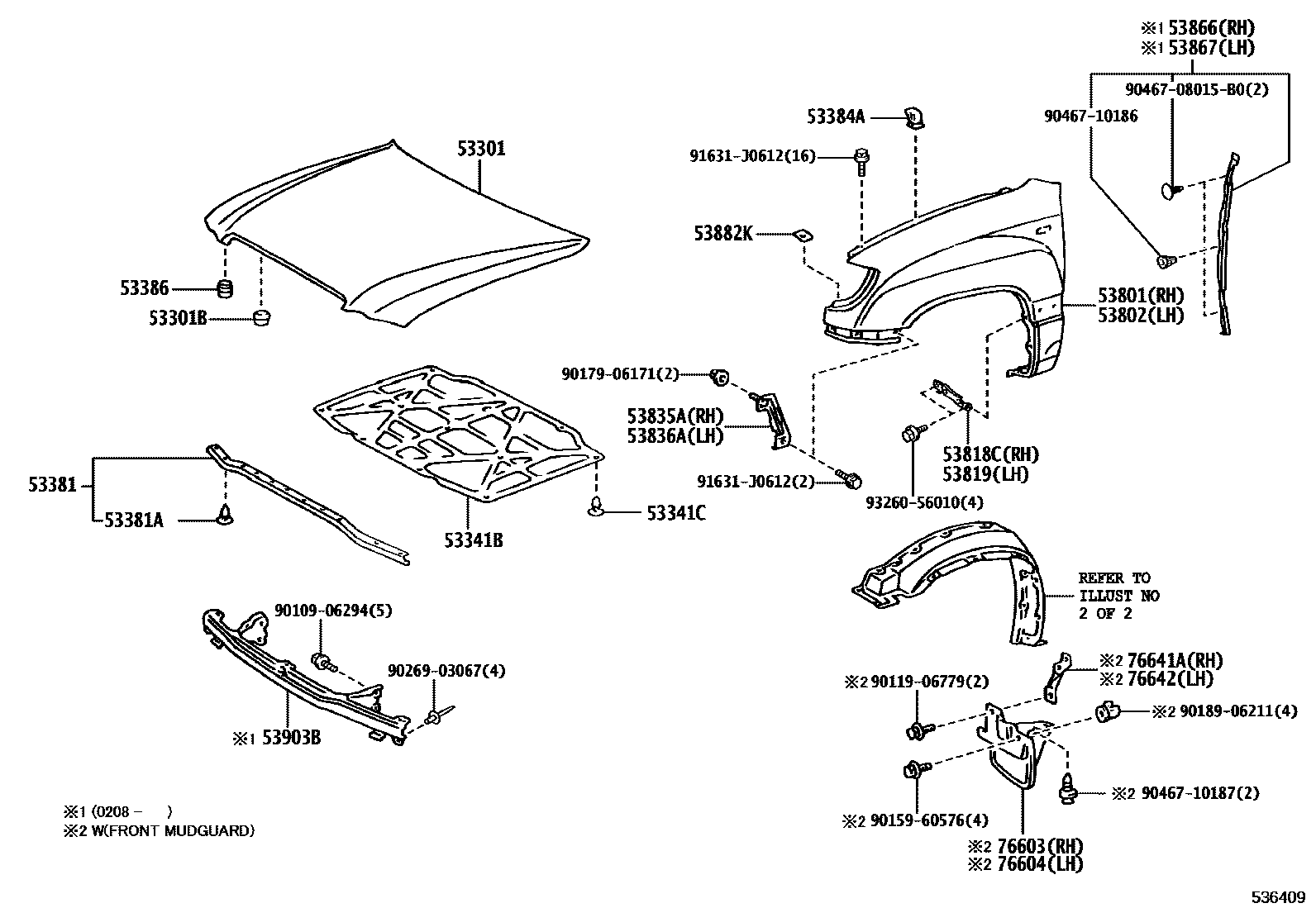

HOOD & FRONT FENDER
53301HOOD SUB-ASSY
53301BCUSHION, HOOD BUMPER
53341CCLIP(FOR HOOD INSULATOR)
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53384ABUMPER, FENDER TO HOOD
53386BUMPER, HOOD, REAR
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53818CREINFORCEMENT, FRONT FENDER, REAR RH
53819REINFORCEMENT, FRONT FENDER, REAR LH
53835ABRACE, FRONT FENDER TO APRON, RH
53836ABRACE, FRONT FENDER TO APRON, LH
53866SEAL, FRONT FENDER TO COWL SIDE, RH
53867SEAL, FRONT FENDER TO COWL SIDE, LH
53882KSEAL, FRONT FENDER
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
76641ABRACKET, FRONT MUDGUARD
76642BRACKET, FRONT FENDER PANEL MUDGUARD, LH
9010906294
main90109-06294
9011906779
main90119-06779
9015960576
main90159-60576
9017906171
main90179-06171
9018906211
main90189-06211
9026903067
main90269-03067
9046708015B0
main90467-08015B0
9046710186
main90467-10186
9046710187
main90467-10187
91631J0612
main91631-J0612
9326056010
main93260-56010
33 parts on this diagram · 2 diagrams in section
