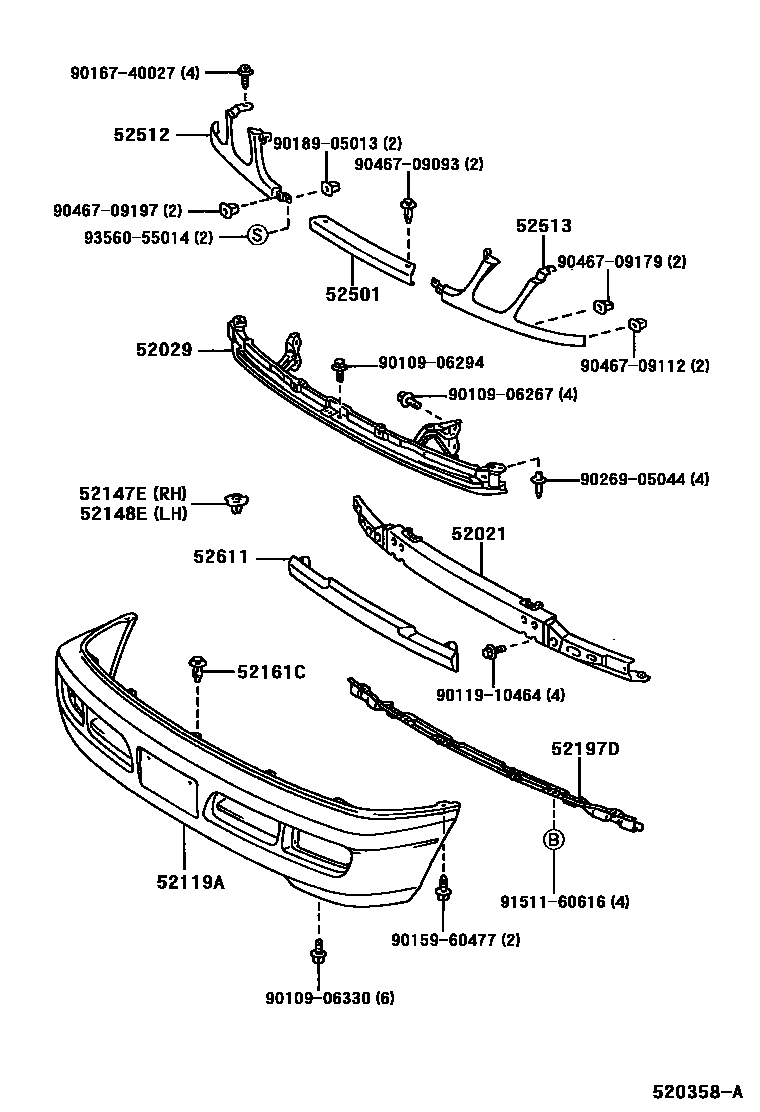

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-60020iUZJ100199801-199808

main52021-60130iUZJ100200208-200505

main52110-60020iUZJ100199808-200208

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

main52029-60010iUZJ100199801-200208

52119ACOVER, FRONT BUMPER

main52119-60905iUZJ100199801-199901

main52119-60906iUZJ100..LHD199801-199901

W(HEADLAMP CLEANER)

main52119-60914iUZJ100..LHD199901-200208

W(HEADLAMP CLEANER)

main52119-60915iUZJ100199901-200208

main52119-60928iUZJ100..LHD200505-200708

W(HEADLAMP CLEANER)

main52119-60929iUZJ100200208-200505

52147EBRACKET, FRONT BUMPER MOUNTING, RH

main52147-60050iUZJ100199801-200208

52148EBRACKET, FRONT BUMPER MOUNTING, LH

main52147-60050iUZJ100199801-200208

52161CPIECE, FRONT BUMPER

main52161-16010×3iUZJ100200505-200708

52197DREINFORCEMENT, FRONT BUMPER ARM

main52197-60020iUZJ100199808-200208

52501FILLER SUB-ASSY, FRONT BUMPER

main52511-60900-H0iUZJ100..LHD; UZJ100..RHD199801-200008

DARK GRAY,202 ,6R1; DARK GRAY,6R1

main52511-60900-J0iUZJ100..LHD; UZJ100..RHD199801-200008

LIGHT GRAY,057 ,1C2 ,4M9; LIGHT GRAY,057 ,4M9

main52511-60901-H0iUZJ100200208-200505

DARK GRAY,202

main52511-60901-J0iUZJ100200208-200505

LIGHT GRAY,070 ,4R2 ,6T2 ,8P6

main52511-60901-J1iUZJ100..LHD; UZJ100..RHD200505

DARK GRAY,1E9 ,202; DARK GRAY,202 ,6T7

52512FILLER, FRONT BUMPER, RH

main52512-60900-H0iUZJ100200008-200208

DARK GRAY,202

main52512-60900-J0iUZJ100..LHD; UZJ100..RHD199801-200008

LIGHT GRAY,057 ,1C2 ,4M9 ,6R1; LIGHT GRAY,057 ,4M9 ,6R1

main52512-60901-H0iUZJ100200208-200505

DARK GRAY,202

main52512-60901-J0iUZJ100200208-200505

LIGHT GRAY,070 ,4R2 ,6T2 ,8P6

main52512-60901-J1iUZJ100..LHD; UZJ100..RHD200505

DARK GRAY,1E9 ,202; DARK GRAY,202 ,6T7

52513FILLER, FRONT BUMPER, LH

main52513-60900-H0iUZJ100200008-200208

DARK GRAY,202

main52513-60900-J0iUZJ100..LHD; UZJ100..RHD199801-200008

LIGHT GRAY,057 ,1C2 ,4M9 ,6R1; LIGHT GRAY,057 ,4M9 ,6R1

main52513-60901-H0iUZJ100200208-200505

DARK GRAY,202

main52513-60901-J0iUZJ100200208-200505

LIGHT GRAY,070 ,4R2 ,6T2 ,8P6

main52513-60901-J1iUZJ100..LHD; UZJ100..RHD200505

DARK GRAY,1E9 ,202; DARK GRAY,202 ,6T7

52611ABSORBER, FRONT BUMPER ENERGY

main52611-60010iUZJ100199801-200208

main52611-60020iUZJ100200208-200505

9010906267

main90109-06267

9010906294

main90109-06294

9010906330

main90109-06330

9011910464

main90119-10464

9015960477

main90159-60477

9016740027

main90167-40027

9018905013

main90189-05013

9026905044

main90269-05044

9046709093

main90467-09093

9046709112

main90467-09112

9046709179

main90467-09179

9046709197

main90467-09197

9151160616

main91511-60616

9356055014

main93560-55014

25 parts on this diagram · 3 diagrams in section
