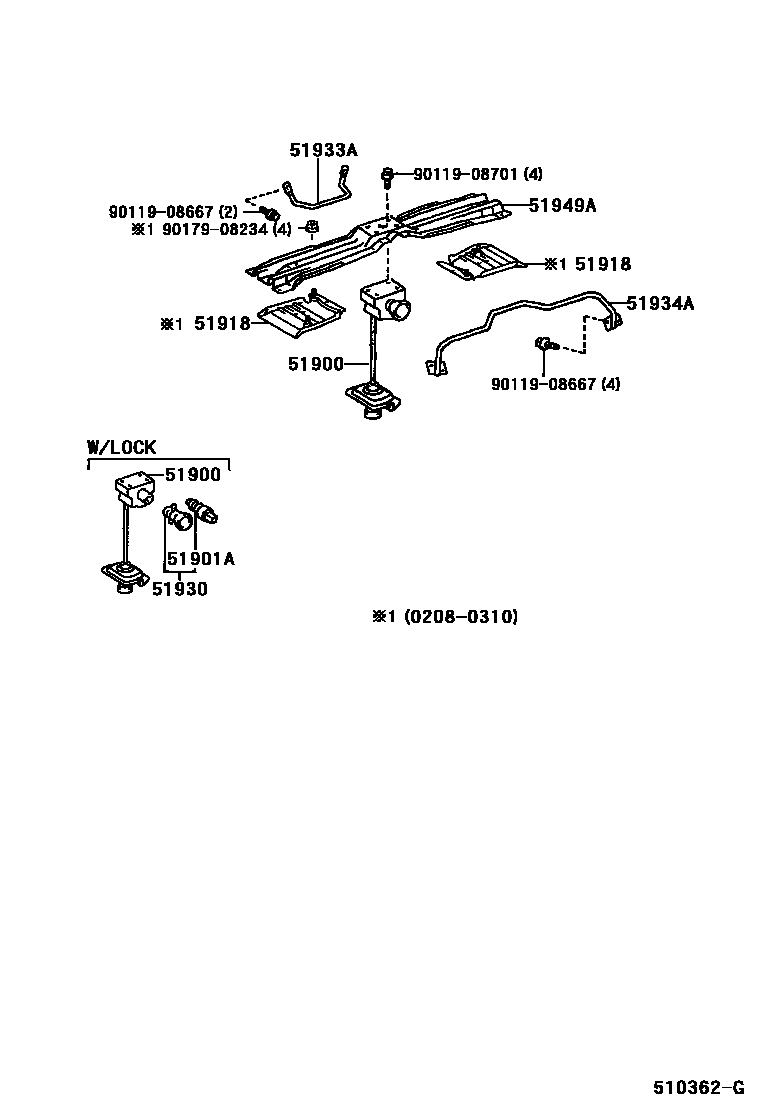

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51900-60190iUZJ100..LHD199801-199907

main51900-60191iUZJ100..LHD199907-200109

main51900-60240iUZJ100199801-199907

W(LOCK)

main51900-60241iUZJ100199907-200109

W(LOCK)

main51900-60260iUZJ100..LHD200109-200208

main51900-60261iUZJ100..LHD200505

main51900-60270iUZJ100200208-200505

W(LOCK)

51901AKEY SUB-ASSY, SPARE WHEEL CARRIER

main51901-0W010×2iUZJ100199801-200208

51918BRACKET, SPARE WHEEL STOPPER

main51918-60020×2iUZJ100200208-200310

51930LOCK ASSY, SPARE WHEEL CARRIER

main51930-0W010iUZJ100200208-200505

main51930-0W011iUZJ100200608-200708

51933ASTOPPER, SPARE WHEEL, NO.1

main51903-60150iUZJ100199911-200208

main51903-60151iUZJ100200208-200505

main51933-60110iUZJ100199801-199911

51934ASTOPPER, SPARE WHEEL, NO.2

main51904-60040iUZJ100199801-199912

main51904-60041iUZJ100199912-200208

main51904-60061iUZJ100200208-200505

51949ACROSSMEMBER, SPARE WHEEL CARRIER

main51281-60110iUZJ100199801-200008

main51281-60111iUZJ100200310-200505

9011908667

main90119-08667

9011908701

main90119-08701

9017908234

main90179-08234

10 parts on this diagram · 1 diagram in section
