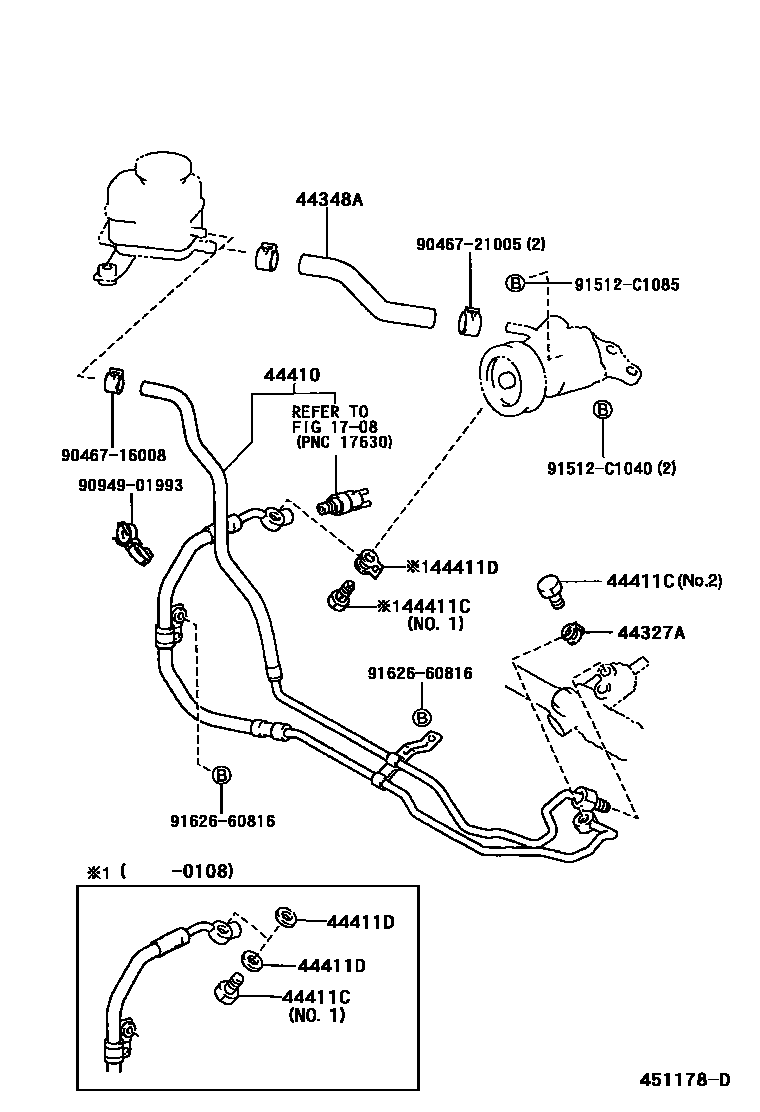

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1

1708VACUUM PIPING

→ Go to FIG 17-08

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iUZJ100199801-200208

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-60260iUZJ100199801-200208

main44348-60350iUZJ100200208-200505

44410TUBE ASSY, PRESSURE FEED

main44410-60480iUZJ100..LHD199801-200208

main44410-60590iUZJ100..LHD200208-200408

main44410-60591iUZJ100..LHD200408-200409

main44410-60593iUZJ100..LHD200409-200505

44411HOSE, PRESSURE FEED

main44411-60560iUZJ100..RHD199801-200208

main44411-60640iUZJ100..RHD200208-200505

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16020iUZJ100199801-200108

NO.1

main90401-16034iUZJ100200505

main90401-16040iUZJ100199801-200208

NO.2

44411DGASKET(FOR PRESSURE FEED HOSE)

main44327-30040iUZJ100200505

main90430-16168×2iUZJ100199801-200108

9046716008

main90467-16008

9046721005

main90467-21005

9094901993

main90949-01993

91512C1040

main91512-C1040

91512C1085

main91512-C1085

9162660816

main91626-60816

13 parts on this diagram · 4 diagrams in section
