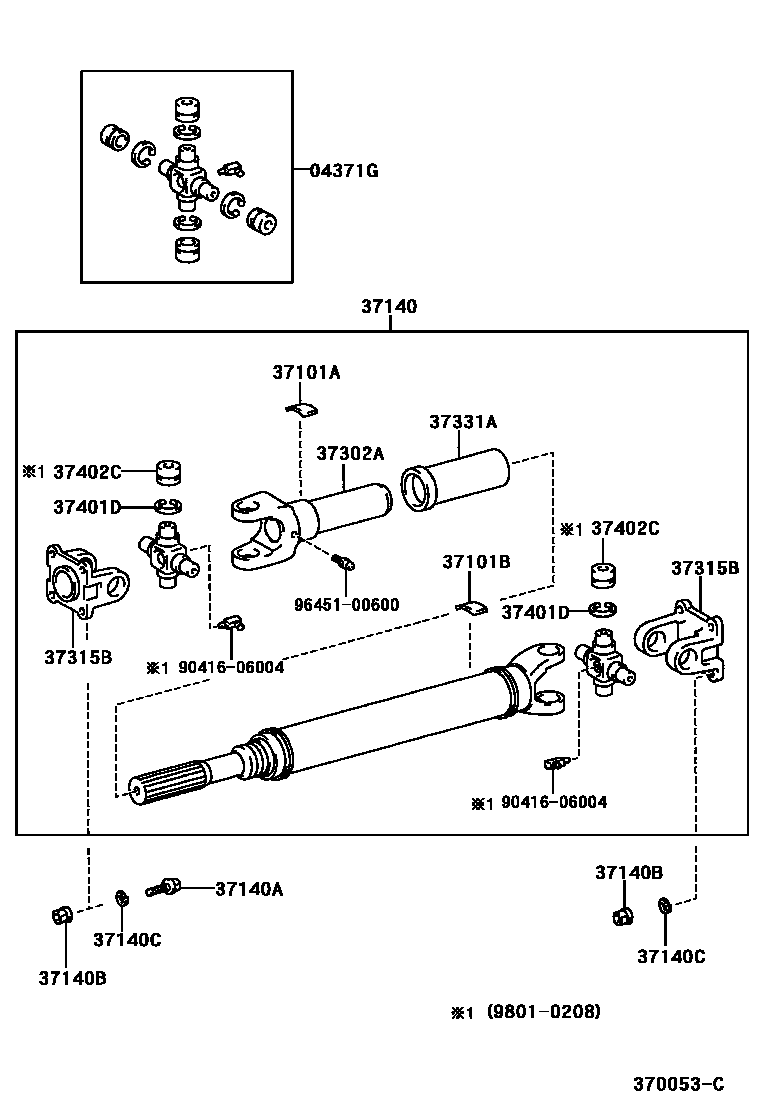

Toyota LEXUS LX470 — PROPELLER SHAFT & UNIVERSAL JOINT
04371GSPIDER KIT, FRONT PROPELLER SHAFT UNIVERSAL JOINT
37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
4G,T=1.6
8G,T=1.6
12G,T=4.5
16G,T=4.5
20G,T=4.5
24G,T=4.5,L=25.1
28G,T=6,L=22.7
32G,T=6,L=24.3
36G,L=23.1,T=8.0
40G,L=25.6
44G,L=22.6
48G,L=24.6
52G,L=26.7
56G,L=28.7
60G,L=28.7
37101BPIECE, BALANCE, NO.2 (FOR PROPELLER SHAFT)
10G,L=20.7
20G,L=41.4
30G,L=62.2
2G,T=2.0
4G,T=2.0
6G,L=12.4
8G,L=16.6
12G,L=24.9
14G,L=29.0
16G,L=33.2
18G,L=37.3
22G,L=45.6
24G,L=49.7
26G,L=53.9
28G,L=58.1
2G
4G
6G
8G
10G
12G
14G
16G,T=2.0
18G,T=2.0
20G,T=2.0
22G,T=2.0
24G,T=2.0
26G,T=2.0
28G,T=2.0
30G,T=2.0
37140SHAFT ASSY, PROPELLER, FRONT
37140ABOLT (F0R FRONT PROPELLER SHAFT)
37140BNUT (F0R FRONT PROPELLER SHAFT)
37140CWASHER (F0R FRONT PROPELLER SHAFT)
37302AYOKE SUB-ASSY, FR PROPELLER SHAFT UNIVERSAL J0INT SLEEVE
37315BY0KE, FRONT PROPELLER SHAFT UNIVERSAL J0INT FLANGE
37331ACOVER SUB-ASSY, FRONT PROPELLER SHAFT SLIDING SHAFT DUST
37401DRING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
T=2.29,MARK 1
T=2.31,MARK 2
T=2.33,NO MARK
T=2.35,BROWN
T=2.37,BLUE
T=2.39,MARK 6
T=2.41,MARK 7
T=2.43,MARK 8
T=2.45,MARK 9
T=2.47,MARK 10
T=2.49,MARK A
T=2.51,MARK B
T=2.53,MARK C
T=2.55,MARK D
T=2.57,MARK E
T=2.19,MARK D
T=2.21,MARK E
T=2.23,MARK F
T=2.25,MARK G
T=2.27,MARK H
37402CBEARING, FRONT PROPELLER SHAFT UNIVERSAL JOINT SPIDER
9041606004
main90416-06004
9645100600
main96451-00600
14 parts on this diagram · 2 diagrams in section
PROPELLER SHAFT & UNIVERSAL JOINT for Toyota LEXUS LX470
This section contains 24 genuine Toyota parts for the PROPELLER SHAFT & UNIVERSAL JOINT system of the Toyota LEXUS LX470. Key components include: SPIDER KIT, FRONT PROPELLER SHAFT UNIVERSAL JOINT, SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT, PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT), PIECE, BALANCE, NO.2 (FOR PROPELLER SHAFT), SHAFT ASSY, PROPELLER.
